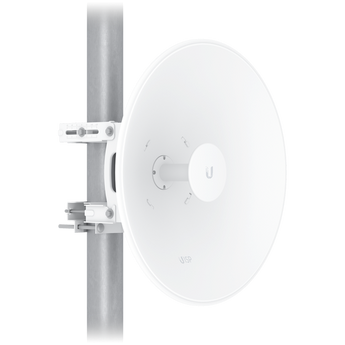

Ubiquiti UISP 30dBi 5GHz Parabolic Dish Antenna
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Superior Long-Range Connectivity
Achieve carrier-class performance for your Point-to-Point (PtP) wireless links with the Ubiquiti UISP Dish, a high-gain 30dBi parabolic antenna. Engineered for excellence, this antenna operates over a wide 5.15 - 6.875 GHz frequency range, ensuring optimal performance and minimal interference for links spanning over 30 kilometers. Its robust construction and precision engineering make it the ideal choice for building resilient, high-throughput network backhauls.
Engineered for Performance and Durability
The UISP Dish is built to withstand the harshest environments. Featuring a powder-coated galvanized steel reflector, UV-stabilized polycarbonate, and an aluminum alloy enclosure, it offers exceptional durability. It can survive winds of up to 200 km/h (124 mph) and is IPX6-rated for superior weatherproofing against the elements. The antenna's design focuses the signal into a narrow beam, maximizing signal strength and isolating it from noise, which is critical for stable long-distance connections.
Seamless Radio Integration
Designed for seamless integration, the UISP Dish is compatible with leading Ubiquiti radios, including the airFiber 5XHD (AF 5XHD) and the airMAX Rocket Prism AC 5 GHz (RP 5AC). It includes a WaveGuide adapter and features secure side latches for a quick, snap-in radio connection, simplifying installation and ensuring a stable, reliable setup. The precision alignment mounting bracket allows for easy and accurate aiming to establish the strongest possible link.
Technical Specifications
| Hardware & Performance | |
|---|---|
| Frequency Range | 5.15 - 6.875 GHz |
| Gain | 30 dBi |
| Beamwidth (3 dB) | Azimuth: 5 to 6° / Elevation: 5 to 6° |
| Beamwidth (6 dB) | Azimuth: 6.5 to 8° / Elevation: 6.5 to 8° |
| Polarization | Dual-linear |
| Cross-Pol Isolation | 20 dB |
| Maximum VSWR | 2:1 |
| Electrical Downtilt | 0° |
| Mechanical | |
| Dimensions | ⌀650 x 200 mm (⌀25.6 x 7.9") |
| Weight | Device: 4.54 kg (10 lb) / Mount: 3.1 kg (6.8 lb) |
| Enclosure Materials | Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Mounting | Pole Mount Alignment Kit (Included) with ±15° elevation adjustment |
| Pole Mount Diameter | ⌀40 to 90 mm (⌀1.57 to 3.5") |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 860 N @ 200 km/h (193 lbf @ 124 mph) |
| Weatherproofing | IPX6 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
