V-SOL

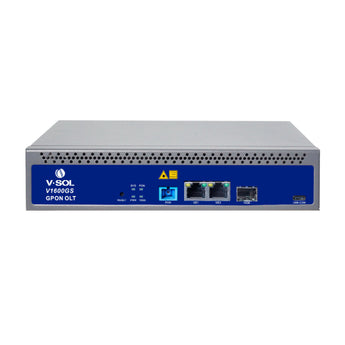

V-Sol V1600GS-F Single Port GPON Optical Line Terminal
Pickup available at NexGen Computing
Usually ready in 24 hours
The VSOL V1600GS-F Single Port GPON OLT is a high-performance, cost-effective optical line terminal purpose-built for delivering ultra-fast and reliable fiber optic connectivity across small to medium-sized networks. Designed in a compact 1U box form factor, the V1600GS-F integrates GPON OLT functionality with gateway and AC controller features, making it an all-in-one solution for FTTH (Fiber-to-the-Home), SOHO environments, SMBs, and rental housing network upgrades.
Equipped with one GPON port and supporting a splitting ratio of up to 1:128, this device can handle large-scale user deployments while maintaining excellent performance. With transmission distances of up to 20km, the V1600GS-F ensures stable and long-range coverage, perfect for delivering gigabit broadband services over passive optical networks.
Capable of 1.25Gbps upstream and 2.5Gbps downstream, the V1600GS-F is ideal for applications that demand high throughput such as HD video streaming, IP telephony, cloud access, and enterprise-level data management. Its flexible deployment makes it suitable for both urban and rural network topologies where performance and affordability are critical.
The device features three uplink ports — two Gigabit Ethernet RJ45 and one SFP/SFP+ combo port supporting up to 10Gbps — ensuring fast and scalable backhaul connectivity. It includes centralized network management through WEB, Telnet, CLI, and SNMP, offering streamlined deployment and simplified administration across a range of network architectures. With support for plug-and-play AP control and centralized AC management, it forms the backbone of a POL (Passive Optical LAN) setup for modern offices and enterprise parks.
Additionally, the V1600GS-F is engineered for resilience and durability, featuring 4KV lightning protection for power and 1KV surge protection on device interfaces. It also supports both AC (100~240V) and DC (12V/2A) power inputs, offering flexibility across installation scenarios.
FEATURES:
| All-in-one Single Port GPON OLT | |
| Integrated OLT, Gateway and AC Function | |
| High-Speed Fiber Optic Coverage | |
| Easy Installation Saves Investment | |
| Centralized Management and Plug & Play | |
| AC+AP Solution | |
| POL Network of Small & Medium-sized Enterprises | |
| Rental Housing Network Renovation |
SPECIFICATIONS:
| Rack | 1U |
| Uplink PortQTY | 3RJ45(GE): 2SFP(GE)/SFP+(10GE): 1 |
| QTY | 3 |
| RJ45(GE) | 2 |
| SFP(GE)/SFP+(10GE) | 1 |
| GPON Port SpecificationQTY | 1Fiber Type: 9/125μm SMConnector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBmGPON port speed: Upstream 1.244Gbps | Downstream 2.488GbpsWavelength: TX 1490nm, RX 1310nmMax splitting ratio: 1:128Transmission Distance: 20KM |
| QTY | 1 |
| Fiber Type | 9/125μm SM |
| Connector | SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm |
| GPON port speed | Upstream 1.244Gbps | Downstream 2.488Gbps |
| Wavelength | TX 1490nm, RX 1310nm |
| Max splitting ratio | 1:128 |
| Transmission Distance | 20KM |
| Management Ports | 1 x USB-COM(Type-C) port |
| Backplane Bandwidth | 16Gbps |
| Port Forwarding Rate | 23.808Mpps |
| Management Mode | WEB/Telnet/CLI/SNMP |
| Power SupplyAC Power Adapter | Working Voltage Range: 100~240V | Rated Voltage: 110V/220VDC Power Adapter: DC 12V/2A |
| AC Power Adapter | Working Voltage Range: 100~240V | Rated Voltage: 110V/220V |
| DC Power Adapter | DC 12V/2A |
| Lightning Protection LevelPower supply | 4KVDevice Interface: 1KV |
| Power supply | 4KV |
| Device Interface | 1KV |
| Product Dimensions | 21 x 17.3 x 4.36 cm |
| Product Weight | 1070 g |
WHAT'S IN THE BOX:
- V-Sol V1600GS-F Single Port GPON Optical Line Terminal x1
