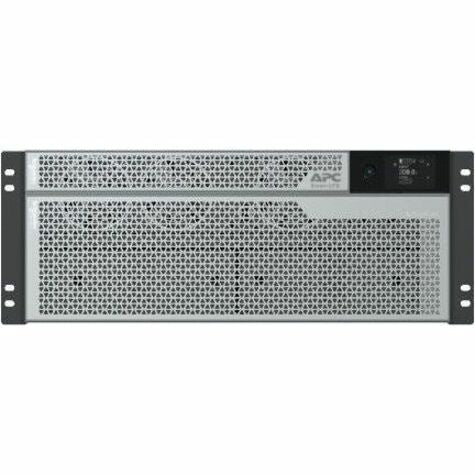

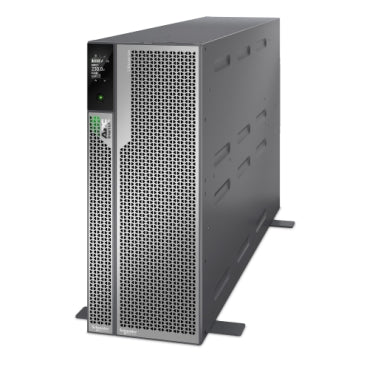

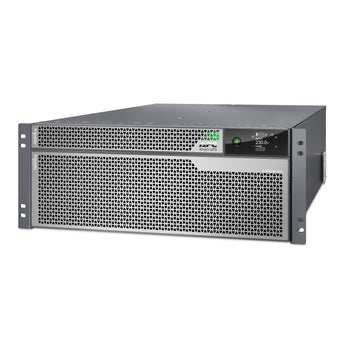

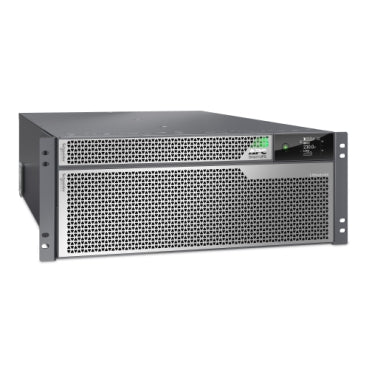

APC Smart-UPS Ultra 10kVA/10kW Rack/Tower Convertible Li-Ion Online UPS
Pickup available at NexGen Computing
Usually ready in 24 hours
Uninterruptible Power for Mission-Critical Systems
The APC Smart-UPS Ultra On-Line is a high-density, true double-conversion uninterruptible power supply designed to provide premium power protection for your critical servers, voice and data networks, medical labs, and light industrial applications. This versatile UPS can be deployed in either a tower or rack-mount configuration, offering flexibility for various installations. Its advanced Lithium-ion battery technology provides a significantly longer lifespan—up to three times that of traditional lead-acid batteries—reducing the total cost of ownership by minimizing the need for battery replacements under normal operating conditions. The Smart-UPS Ultra is also up to 50% smaller and lighter than comparable models, delivering 2.5 times the power density.
Advanced Performance and Management
Engineered for the most demanding power environments, the APC Smart-UPS Ultra features a true on-line, double-conversion architecture that ensures a clean, uninterrupted power supply to your connected equipment. It offers a wide input voltage window and precise output voltage and frequency regulation, along with an internal bypass for added reliability. The intuitive graphical LCD display provides detailed and accurate information at a glance and allows for easy local configuration. For remote management, this UPS is EcoStruxure™ Ready, featuring an integrated Network Management Card that enables you to monitor and manage your power infrastructure from anywhere. The included PowerChute™ Network Shutdown software ensures a graceful, unattended shutdown of your network operating systems in the event of an extended power outage.
Key Features:
- 10000VA / 10000W Power Capacity: Provides ample power for demanding server and network equipment.
- Lithium-Ion Battery: Offers a longer lifespan and reduced maintenance compared to traditional VRLA batteries.
- Rack/Tower Convertible Design: Includes hardware for flexible installation in various environments.
- Double-Conversion On-Line Topology: Delivers the highest level of power protection.
- High-Efficiency Green Mode: Achieves up to 98% efficiency, saving on utility and cooling costs.
- Multifunction LCD Status and Control Console: For easy monitoring and configuration.
- Network Management Card Included: Enables remote monitoring and management capabilities.
Technical Specifications
| Output | |
|---|---|
| Rated Power in W | 10000 W |
| Rated Power in VA | 10000 VA |
| Main Output Voltage | 230 V |
| Output Connection Type | 6 IEC 320 C13 / 6 IEC 320 C19 |
| Wave Type | Sine wave |
| Harmonic Distortion | Less than 5 % |
| Crest Factor | 3:1 |
| Input | |
| Main Input Voltage | 230 V |
| Input Frequency | 40/70 Hz |
| Input Connection Type | Hard Wire 3-wire |
| Battery & Runtime | |
| Battery Type | Li-Ion (Lithium-Ion) |
| Typical Backup Time at Full Load | 5 minutes |
| Typical Backup Time at Half Load | 11 minutes |
| Battery Recharge Time | 1.5 h |
| Battery Life (max) | 10 year(s) |
| Physical | |
| Height | 17.5 cm |
| Width | 43.2 cm |
| Depth | 83.2 cm |
| Net Weight | 55 kg |
| Rack Height | 4U |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95% |
| Operating Altitude | 0 - 3000 m |
| Communications & Management | |
| Pre-installed Device | Network management card with environmental monitoring |
| Control Panel | Multifunction LCD status and control console |
| Alarm | Audible and visible alarms : prioritized by severity |
| Surge Energy Rating | 1410 J |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
