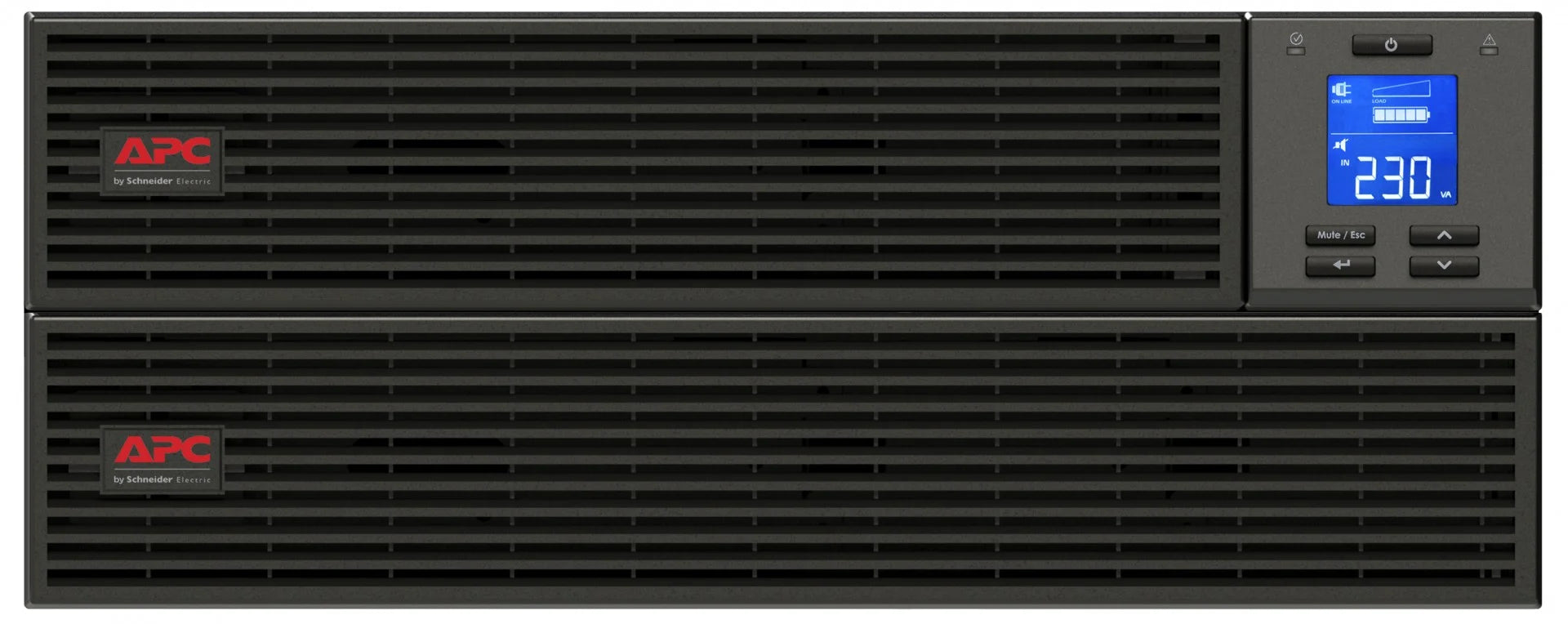

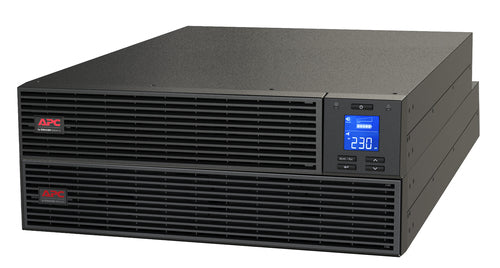

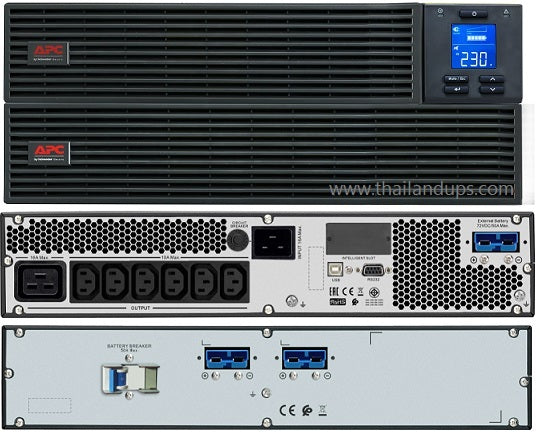

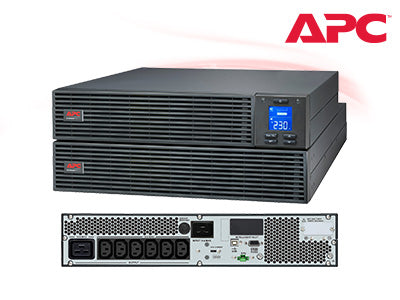

APC Easy UPS SRV 3000VA / 2400W 4U Rackmount Online UPS
Pickup available at NexGen Computing
Usually ready in 24 hours
Ensure Uninterrupted Power for Your Critical Systems
The APC Easy UPS Online SRV Rackmount is a high-quality, double-conversion online UPS designed to provide reliable power protection for your essential electronics, even in the most unstable power conditions. This 3kVA/2400W unit is engineered for IT professionals and network administrators who need to maintain business uptime and continuity. Its pure sine wave output and extended runtime capabilities ensure that your critical servers, storage, and networking equipment remain operational during power disruptions.
High-Performance and Efficient Operation
Featuring a double-conversion online topology, this UPS provides the highest level of power protection by completely isolating your equipment from raw utility power. It boasts an efficiency of up to 88% at full load, which helps to reduce energy costs and heat generation. The unit also includes an energy-saving ECO mode for even greater efficiency during stable power conditions. A built-in automatic and manual bypass ensures seamless power to your connected load, even in the event of an internal UPS fault.
Flexible and Scalable for Your Needs

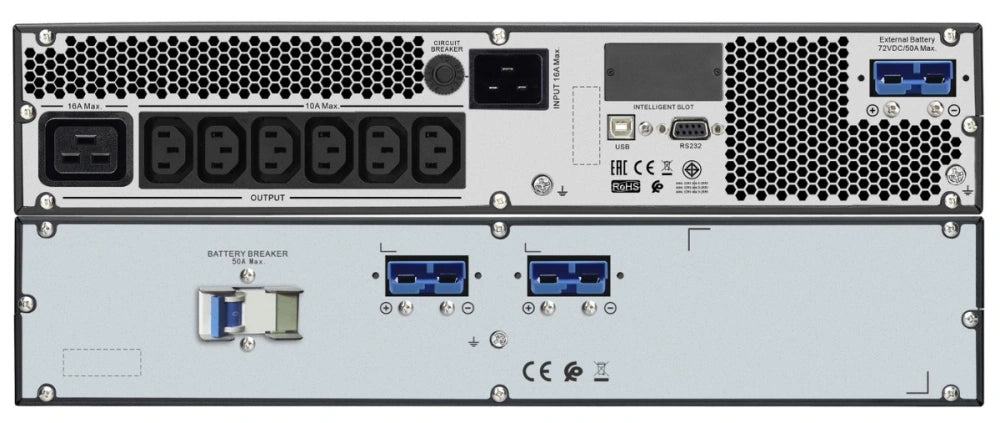

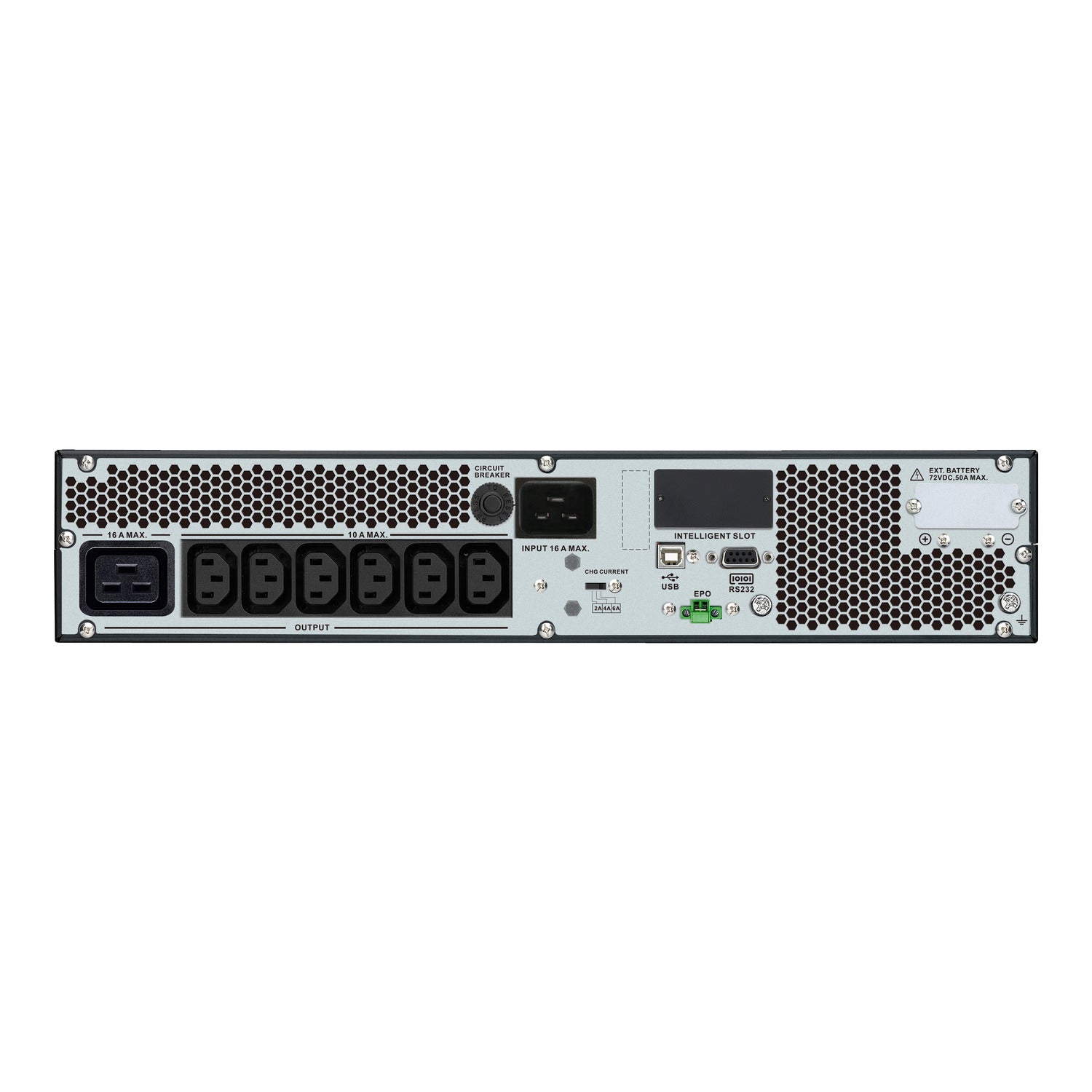

This versatile 4U rackmount UPS comes with a rail kit for easy installation in a standard server rack. It features a variety of output connections, including six IEC C13 and one IEC C19 outlets, to support a range of devices. For applications requiring longer backup times, the runtime can be extended by connecting up to four external battery packs (sold separately). The intuitive multifunction LCD status and control console provides clear and accurate information on the UPS status at a glance.
Advanced Management and Connectivity
The intelligent card slot allows for the installation of an optional Network Management Card (sold separately), enabling remote monitoring and management of the UPS over your network. This allows for integration with EcoStruxure IT or other third-party centralized management platforms. Additionally, the UPS is equipped with USB and RS-232 ports for local management.
| Main Specifications | |
| Product Type | Uninterruptible power supply (UPS) |
| Topology | Double-conversion online |
| Form Factor | Rackmount 4U |
| Power | |
| Rated Power | 3000VA / 2400W |
| Nominal Output Voltage | 230V (Configurable for 220V, 240V) |
| Nominal Input Voltage | 230V (Configurable for 220V, 240V) |
| Waveform Type | Sine wave |
| Efficiency at Full Load | 88.0% |
| Input/Output | |
| Input Connection | IEC 60320 C20 |
| Output Connections | (6) IEC 60320 C13, (1) IEC 60320 C19 |
| Battery & Runtime | |
| Battery Type | Lead-acid |
| Recharge Time | 4 hours |
| Extended Runtime | Supports up to 4 external battery packs (SRV72RLBP-9A) |
| Runtime at Full Load | 12.7 min |
| Runtime at Half Load | 30.1 min |
| Communications & Management | |
| Interface Port(s) | RS-232, USB |
| Control Panel | Multifunction LCD status and control console |
| Expansion Slots | 1 SmartSlot |
| Physical | |
| Dimensions (H x W x D) | 17.2 x 43.7 x 63.2 cm |
| Net Weight | 52 kg |
| Shipping Weight | 66.8 kg |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
| Acoustic Level | 50 dBA |
| Conformance | |
| Warranty | 2 years |
