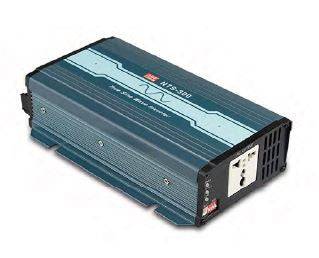

Mean Well NTS-300 Series 300W 24V DC to AC True Sine Wave Power Inverter
Pickup available at NexGen Computing
Usually ready in 24 hours
Reliable, High-Performance Power for Sensitive Electronics
Experience clean, stable, and reliable AC power wherever you need it with the Mean Well NTS-300-224UN, a 300-watt true sine wave DC to AC inverter. Designed for high-reliability off-grid applications, this inverter converts 24V DC power from batteries into pure, high-quality AC power, making it ideal for a vast range of uses, from mobile devices and off-grid solar systems to marine and vehicle applications.
True Sine Wave Output for Optimal Performance
Unlike modified sine wave inverters, the NTS-300 generates a true sine wave output (THD<3%) that is identical to or even better than the power supplied by your utility company. This clean output is crucial for powering sensitive electronics such as modern TVs, computers, laptops, and medical equipment, preventing crashes, glitches, and damage. Its high-frequency design and microcontroller (MCU) control ensure rapid response to environmental changes and superior reliability.
Engineered for Demanding Conditions
The NTS-300 is built to last, featuring a rugged design and a wide operating temperature range of -25 to +70°C. It boasts an impressive peak power capability of up to 450W for 10 seconds and a surge power of 600W for 30 cycles, allowing it to handle devices with high startup currents. With an efficiency rating of up to 93%, it maximizes battery life by minimizing power loss during conversion. Comprehensive protection features, including safeguards against over-temperature, output short circuits, and overload conditions, ensure safe and dependable operation.
Versatile and User-Friendly
This inverter is compatible with both traditional lead-acid and modern lithium-ion batteries. Users can easily select the appropriate AC output voltage (200/220/230/240V) and frequency (50/60Hz) via a DIP switch to match regional standards. The universal AC outlet ensures compatibility with a wide variety of plugs, making it a flexible solution for global applications.
Key Features:
- 300W Continuous Power with True Sine Wave Output (THD<3%).
- High Surge Power: 450W peak power and 600W surge capability.
- High DC-AC efficiency up to 93%.
- Wide operating temperature range (-25°C to +70°C).
- Digital design with MCU control for enhanced reliability.
- Selectable AC output voltage and frequency.
- Comprehensive protections: Overload, Short Circuit, Over Temperature.
- Suitable for Lead-Acid and Li-ion batteries.
| Official Specifications | |
|---|---|
| Model | NTS-300-224UN |
| Output Specifications | |
| Rated Power (Continuous) | 300W |
| Over Power (3 min.) | 345W |
| Peak Power (10 sec.) | 450W |
| Surge Power (30 cycles) | 600W |
| AC Voltage | 200 / 220 / 230 / 240 VAC (Selectable by DIP S.W) |
| Frequency | 50 / 60 Hz (Selectable by DIP S.W) |
| Waveform | True Sine Wave (THD<3%) |
| AC Regulation | ±3.0% |
| Input Specifications | |
| DC Voltage | 24V |
| Voltage Range | 20 ~ 33VDC |
| DC Current (Typ.) | 15A |
| Efficiency (Typ.) | 93% |
| Battery Types | Lead-acid or Li-ion |
| Environment | |
| Working Temperature | -25 ~ +70°C (Refer to derating curve) |
| Working Humidity | 20% ~ 90% RH non-condensing |
| Storage Temp., Humidity | -30 ~ +70°C, 10 ~ 95% RH non-condensing |
| Vibration | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
