Mean Well

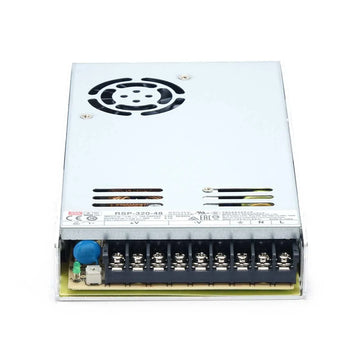

Mean Well RSP-320-48 320W 48V Enclosed Power Supply with PFC
Pickup available at NexGen Computing
Usually ready in 24 hours
Reliable, Efficient Power for Demanding Industrial Applications
The Mean Well RSP-320-48 is a high-performance 320W single-output enclosed AC/DC power supply, engineered for reliability and efficiency in a compact, 1U low-profile design (30mm). It delivers a stable 48V DC output, making it an ideal power source for a wide range of applications, including industrial automation, control systems, mechanical and electrical equipment, and LED displays. With its universal AC input range of 88 to 264VAC and a built-in active Power Factor Correction (PFC) function, this unit ensures consistent performance and power quality across various environments.
Key Features:
- High Efficiency: Achieves up to 90% efficiency, minimizing energy loss and reducing operating costs.
- Advanced Cooling: A built-in long-life DC fan provides forced air cooling, allowing the unit to operate at full load in ambient temperatures up to 50°C.
- Comprehensive Protection: Equipped with robust protections against short circuits, overload (105-135%), over-voltage, and over-temperature, safeguarding your critical equipment.
- Low Profile Design: Its compact 1U height makes it perfect for installations where space is at a premium.
- Wide Operating Range: Capable of operating in a wide temperature range from -30°C to +70°C (with suitable derating).
- Safety Certified: Compliant with numerous international safety standards, including UL60950-1.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Model | RSP-320-48 |
| Output | |
| DC Voltage | 48V |
| Rated Current | 6.7A |
| Rated Power | 321.6W |
| Ripple & Noise (max.) | 200mVp-p |
| Voltage Adj. Range | 41 ~ 56V |
| Input | |
| Voltage Range | 88 ~ 264VAC / 124 ~ 370VDC |
| Frequency Range | 47 ~ 63Hz |
| Power Factor (Typ.) | PF>0.95/230VAC, PF>0.98/115VAC at full load |
| Efficiency (Typ.) | 90% |
| Inrush Current (Typ.) | 40A/230VAC |
| Protection | |
| Overload | 105 ~ 135% rated output power. Protection type: Hiccup mode, recovers automatically after fault condition is removed. |
| Over Voltage | 57.6 ~ 67.2V. Protection type: Shut down o/p voltage, re-power on to recover. |
| Over Temperature | Protection type: Shut down o/p voltage, recovers automatically after temperature goes down. |
| Environment | |
| Working Temperature | -30 ~ +70°C (Refer to derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Operating Altitude | Up to 5000 meters |
| Physical | |
| Dimensions (L x W x H) | 215 x 115 x 30 mm |
| Weight | 0.9 Kg |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
