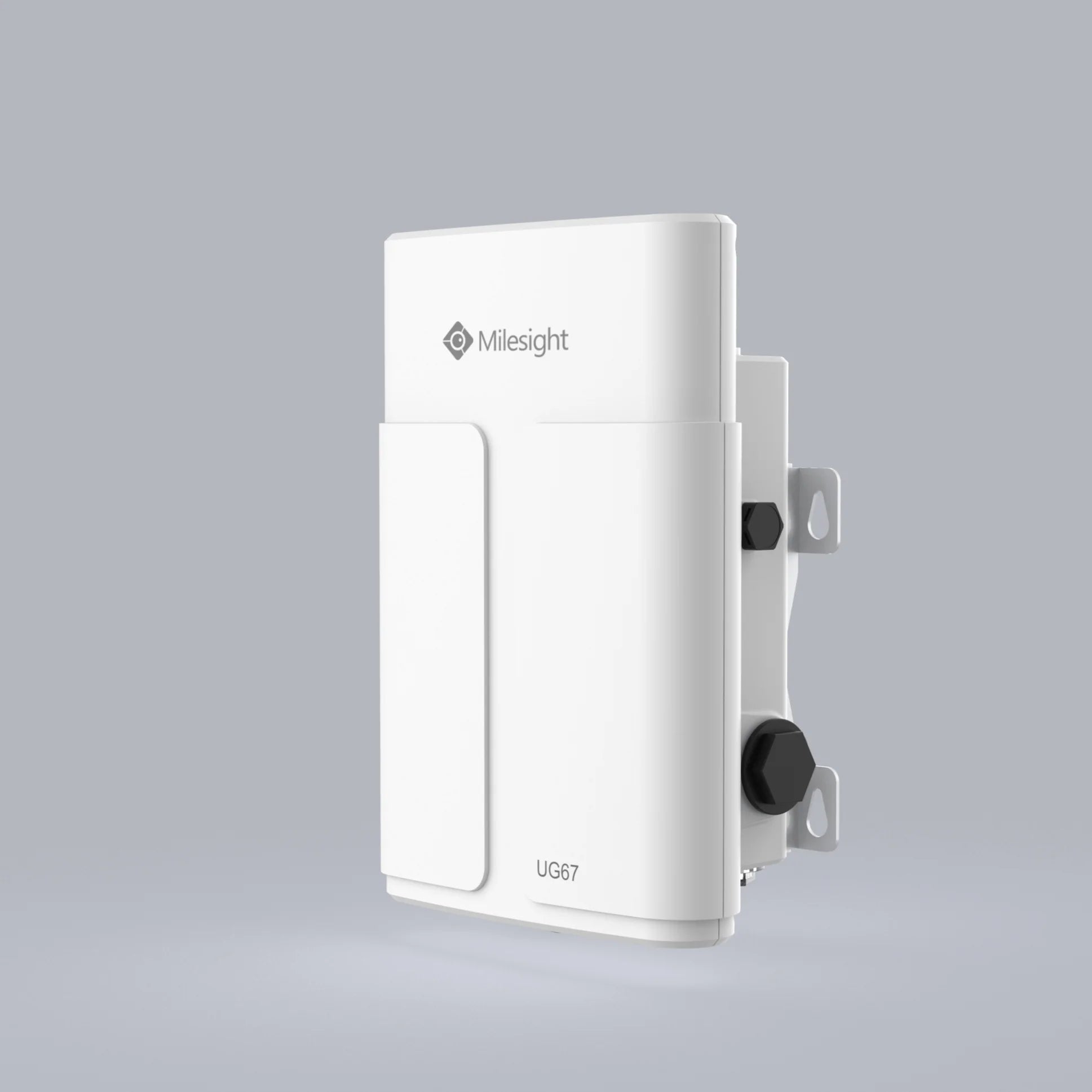

Milesight UG67 Industrial Outdoor 4G/LTE LoRaWAN Gateway (8-Channel, 868MHz)
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, High-Performance Outdoor LoRaWAN Gateway
The Milesight UG67 is a robust, 8-channel outdoor LoRaWAN® gateway engineered for demanding industrial environments. Featuring an IP67-rated waterproof and dustproof enclosure, this gateway is perfectly suited for a wide range of outdoor applications, including smart agriculture, smart metering, and smart city infrastructure. It leverages the high-performance Semtech SX1302 LoRa chip and a powerful quad-core processor, enabling it to support connections with over 2000 sensor nodes. With a line-of-sight range of up to 15 km, the UG67 ensures extensive coverage for your IoT network.
Reliable Connectivity & Uninterrupted Operation
Ensure constant data flow with multiple backhaul options, including high-speed LTE, Ethernet (with PoE PD support), and Wi-Fi. This model is equipped with a 4G LTE cellular module for flexible and reliable network access. A standout feature is the built-in supercapacitor, which keeps the gateway operational for up to a minute during a power outage, allowing it to send a final alarm. Security is paramount, with support for multiple VPN protocols like OpenVPN, IPsec, and WireGuard, ensuring your data is transmitted securely.
Simplified Deployment and Management
The UG67 is designed for easy deployment and centralized management. It is compatible with major network servers like The Things Stack and ChirpStack and features a built-in network server. Management is streamlined through a web GUI, CLI, and the Milesight IoT Cloud platform. The gateway also includes advanced features like a noise analyzer to optimize deployment and Node-RED for low-code, user-friendly programming.
Key Features:
- IP67 Rated Enclosure: Waterproof and dustproof for harsh outdoor conditions.
- High-Performance Core: Quad-core 1.5 GHz CPU, 512 MB RAM, and 8 GB eMMC.
- Next-Gen LoRa Chip: Equipped with the SX1302 chip, handling more traffic with lower power consumption.
- 8 Channels: Supports up to 8 half/full-duplex channels for simultaneous data reception from up to 2000 nodes.
- Flexible Backhaul: Connect via Ethernet, Wi-Fi, and 4G LTE cellular.
- Power Redundancy: Supports both DC power and PoE (802.3af), with a built-in supercapacitor for power outage alerts.
- Integrated Antennas: Internal LoRa, Cellular, Wi-Fi, and GPS antennas, with optional external LoRa antennas for enhanced coverage.
- Broad Compatibility: Works with mainstream network servers including The Things Stack, ChirpStack, and more.
Technical Specifications
| Hardware System | |
|---|---|
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Antenna | 2 × Internal Antennas & 2 × 50 Ω N-Female External Connectors |
| Channels | 8 (Half/Full-duplex) |
| Frequency Band | 868 M (EU868) |
| Sensitivity | -140dBm @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Network Interfaces | |
| Ethernet | 1 × RJ45 (10/100/1000 Base-T), PoE PD supported |
| Wi-Fi | IEEE 802.11b/g/n, 2.4GHz, AP or Client mode |
| Cellular | 1 × Mini SIM-2FF Slot (4G LTE) |
| GPS | Internal Antenna, -167dBm Sensitivity |
| Power Supply | |
| Power Input | Standard 802.3af PoE input or 12 VDC via M12 connector |
| Physical Characteristics | |
| Ingress Protection | IP67 |
| Dimensions | 240 x 164 x 90.9 mm |
| Weight | 1463g |
| Mounting | Wall or Pole Mounting |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
