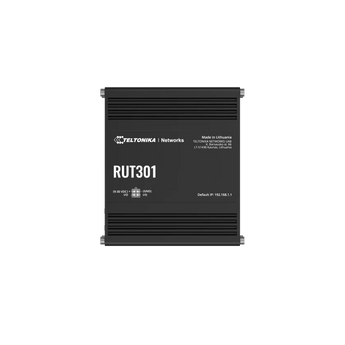

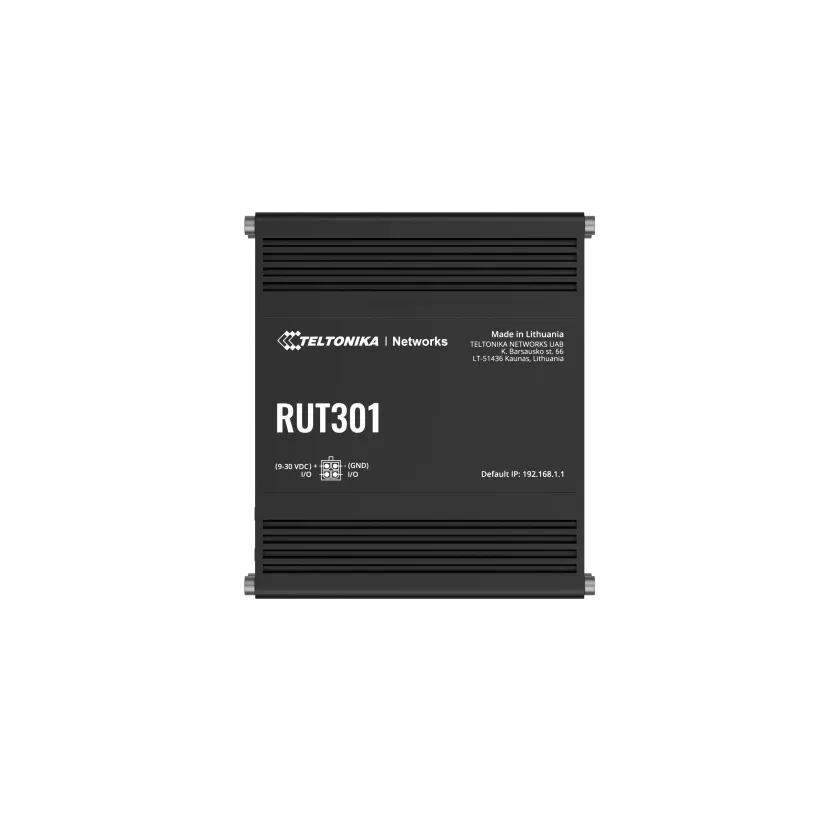

Teltonika RUT301 5-Port Industrial Ethernet Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, Secure, and Cost-Effective Industrial Connectivity
The Teltonika RUT301 is a powerful and compact industrial Ethernet router designed for demanding applications that require reliable, secure, and uninterrupted wired connectivity. Encased in a rugged aluminum housing, this router is engineered to withstand harsh environments, making it the perfect choice for industrial machinery, enterprise networking, and retail systems. It offers a cost-efficient solution without compromising on performance or security, providing a robust feature set for professional applications.
High-Performance Networking and Advanced Security
Equipped with five Fast Ethernet ports (1 WAN, 4 LAN), two configurable digital Inputs/Outputs, and a USB 2.0 port, the RUT301 provides versatile connectivity options. The router is powered by RutOS, a secure and feature-rich operating system based on OpenWRT. It comes with a pre-configured firewall for immediate security and supports a comprehensive suite of VPN services, including OpenVPN, IPsec, WireGuard, and ZeroTier, ensuring your data remains encrypted and secure. Advanced features like static and dynamic routing (BGP, OSPF v2, RIP v1/v2), Quality of Service (QoS), and support for over 25 DDNS providers offer granular control over your network traffic.
Industrial-Grade Design and Remote Management
The RUT301 is built to last with a durable aluminum housing and an IP30 ingress protection rating. It can operate in extreme temperatures ranging from -40 °C to 75 °C, ensuring reliability in any industrial setting. The router is fully compatible with the Teltonika Remote Management System (RMS), allowing for complete remote monitoring, configuration, and management of your entire fleet of routers from a single platform, even without public IP addresses. This simplifies maintenance, reduces operational costs, and ensures your network infrastructure is always running at peak performance.
Key Features at a Glance:

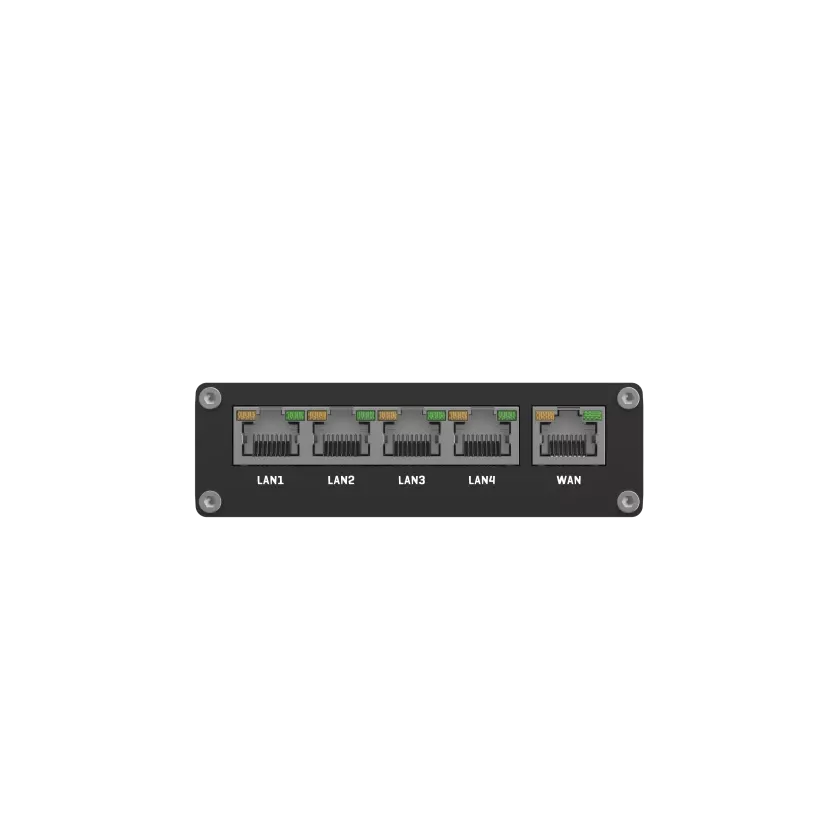

- Connectivity: 5 x 10/100 Mbps Ethernet Ports (1 x WAN, 4 x LAN).
- I/O & USB: 2 x Configurable Digital Inputs/Outputs and 1 x USB 2.0 Port.
- Durability: Rugged aluminum housing with IP30 rating for harsh environments.
- Advanced Security: Pre-configured Firewall and multiple VPN services (OpenVPN, IPsec, WireGuard).
- RutOS: Powerful and secure operating system with extensive networking features.
- Remote Management: Full compatibility with Teltonika RMS for easy remote access and control.
Technical Specifications
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Flash Storage | 16 MB Serial NOR Flash |
| Ethernet | |
| WAN | 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Firewall | Port forward, traffic rules, custom rules. Pre-configured firewall. |
| VPN | |
| Supported Services | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Interfaces | |
| Digital Input | 2 x Digital Input (0 - 6 V detected as logic low, 8 - 30 V detected as logic high) |
| Digital Output | 2 x Digital Output (Open collector output, max output 40V, 400mA) |
| USB | 1 x USB A port for external devices |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power Consumption | Idle: < 0.8 W, Max: < 3.8 W |
| Physical Specifications | |
| Casing Material | Aluminium housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 233 g |
| Mounting Options | DIN Rail, Wall Mount |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
