Teltonika TSF010 5-Port Industrial Ethernet DIN Rail Switch
Pickup available at NexGen Computing
Usually ready in 24 hours

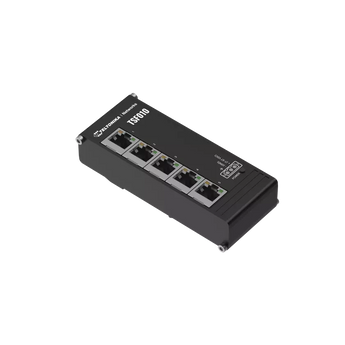

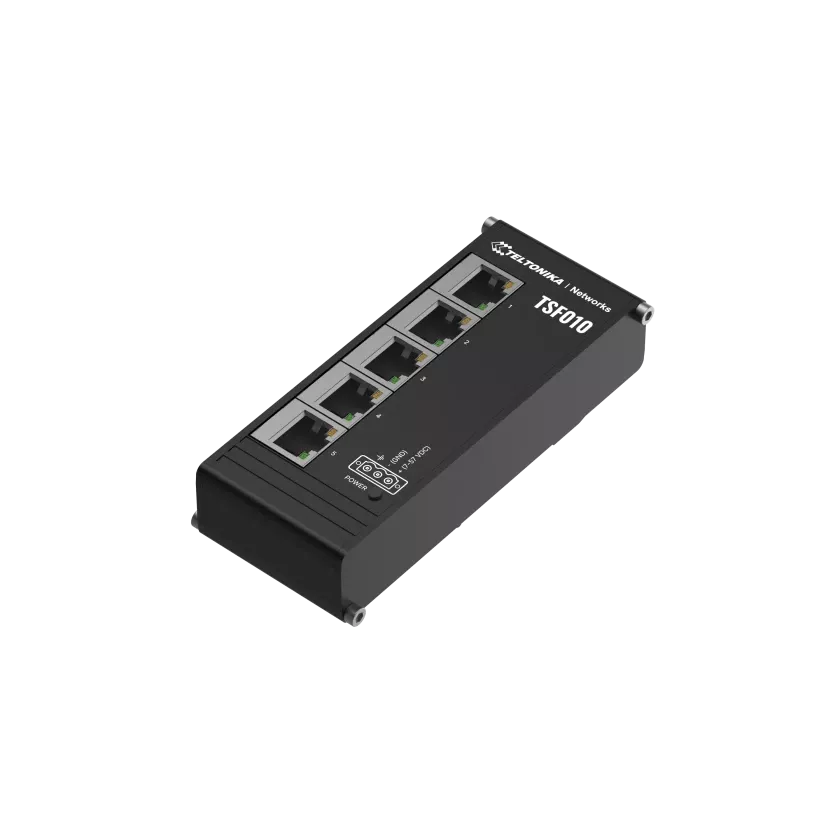

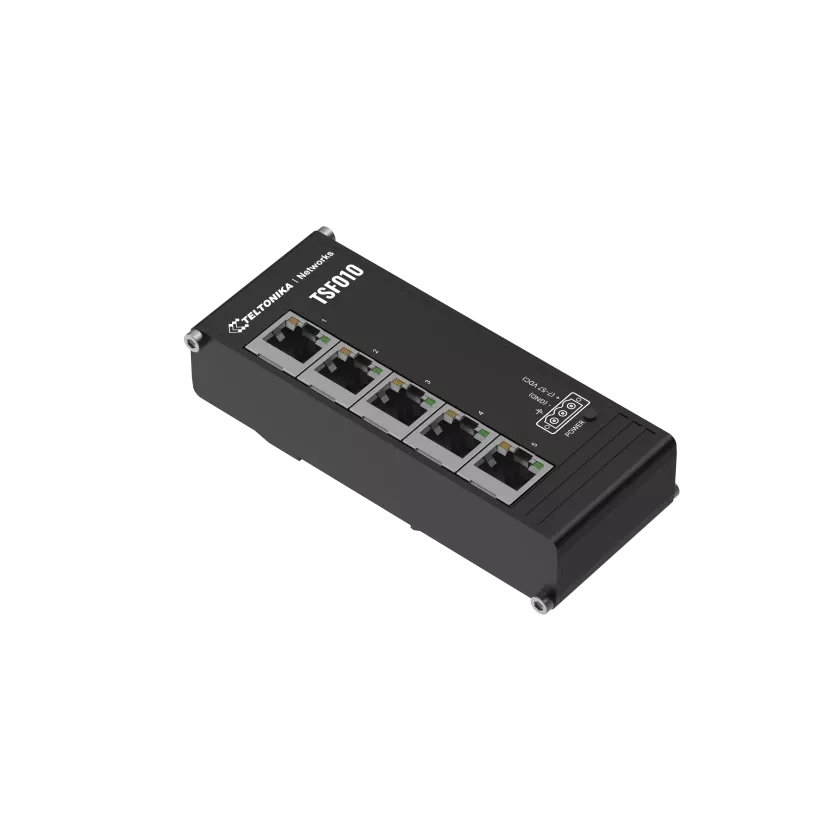

Teltonika TSF010: The Ultra-Slim, Plug-&-Play Industrial Ethernet Switch
Meet the Teltonika TSF010, an unmanaged Ethernet switch engineered for industrial applications where space and reliability are critical. Its innovative flat design and integrated DIN rail bracket make it perfect for seamless, plug-and-play deployment in crowded industrial cabinets. Constructed with a rugged anodized aluminum housing, the TSF010 is built to withstand harsh environments, ensuring dependable network performance. This compact and lightweight switch, weighing only 142g, provides a simple yet robust solution for expanding your network connectivity.
Engineered for Industry
The TSF010 is equipped with five 10/100 Mbps Ethernet ports, supporting auto MDI/MDIX crossover for hassle-free connectivity. It boasts a non-blocking bandwidth of 10 Gbps, ensuring smooth and efficient data transmission across your network without bottlenecks. A wide input voltage range of 7-57 VDC, coupled with overvoltage, reverse polarity, and surge protection, offers unparalleled flexibility and safety for various industrial power sources. With its low power consumption, the TSF010 is an energy-efficient choice for your industrial networking needs.
Key Features:
- Plug-and-Play: Unmanaged switch for simple and fast installation without any configuration.
- 5x Fast Ethernet Ports: Equipped with five RJ45 ports with 10/100 Mbps speed.
- Slim, Compact Design: Flat profile measuring 113 x 28 x 50 mm is ideal for tight spaces.
- Integrated DIN Rail Bracket: Allows for effortless mounting in industrial control panels.
- Durable Aluminum Housing: Provides robust protection and operates in temperatures from -40°C to 75°C.
- Wide Voltage Range: Supports a 7-57 VDC power input, making it suitable for a variety of industrial applications.
| Ethernet | |
|---|---|
| LAN | 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame support | 9216 bytes |
| Power | |
| Connector | 3-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: 1 W / Max: 1.5 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Physical Specification | |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113 x 28 x 50 mm |
| Weight | 142 g |
| Mounting | Integrated DIN rail bracket |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
