Tenda 9-Port Fast Ethernet Switch with 8-Port PoE | TEF1109P-8-63W
Pickup available at NexGen Computing
Usually ready in 24 hours

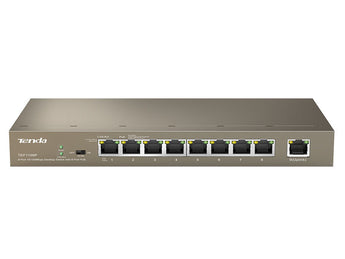

Power and Protect Your Network with the Tenda TEF1109P-8-63W PoE Switch
Engineered for reliability and performance, the Tenda TEF1109P-8-63W is a 9-port desktop switch specifically designed to meet the demands of modern surveillance and network infrastructures. This unmanaged, plug-and-play switch provides a simple and cost-effective solution for expanding your network and powering devices such as IP cameras, VoIP phones, and wireless access points.
Robust Power Over Ethernet (PoE)
Featuring 8 Fast Ethernet ports that comply with IEEE 802.3at (PoE+) and 802.3af (PoE) standards, this switch delivers power and data over a single Ethernet cable. It boasts a total PoE power budget of 58W, with the ability to supply up to 30W to a single port, making it ideal for a wide range of PoE-enabled devices.
Extended Transmission Distance
Break the standard 100-meter Ethernet barrier with Tenda's innovative Extend Mode. When enabled, this feature allows for data and power transmission up to 250 meters, perfect for deploying cameras and other devices in large areas or challenging environments without the need for additional extenders. In Extend Mode, ports 1-4 will operate at 10Mbps and are isolated from each other but can communicate with the uplink port.
Superior 6KV Lightning Protection
Designed to withstand harsh conditions, the TEF1109P-8-63W offers professional-grade 6KV lightning protection for all ports and the power supply. This robust protection safeguards your investment against power surges and lightning strikes, ensuring stable and reliable network operation, especially for outdoor camera installations.
Key Features at a Glance:
- 9-Port Fast Ethernet: Includes 8 10/100Mbps PoE+ ports and 1 dedicated uplink port.
- High PoE Budget: 58W total power budget to support multiple devices simultaneously.
- Long-Range Transmission: Up to 250m data and power delivery in Extend Mode.
- 6KV Lightning Protection: Enhanced durability against electrical surges.
- Plug and Play: Simple setup with no configuration required.
- Silent Operation: Fanless design ensures quiet performance in any workspace.
Technical Specifications
| Hardware Specifications | |
|---|---|
| Interfaces | 8x 10/100 Base-TX RJ45 Ports (Data/Power) 1x 10/100 Base-TX RJ45 Port (Data) |
| PoE Supply | Ports 1-8 support IEEE 802.3at/af Single Port: up to 30W Total Budget: 58W |
| Input Voltage | 100-240V AC 50/60Hz |
| Dimensions | 177.5mm x 104mm x 26mm |
| Lightning Protection | 6KV for Ports, 4KV for Power |
| LED Indicators | 9x Link/Ack, 1x Power |
| Performance | |
| Switching Capacity | 1.8 Gbit/s |
| Packet Forwarding Rate | 1.34 Mpps |
| MAC Address Table | 4K |
| Software & Standards | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Operating Modes |
Default Mode: Standard 10/100Mbps auto-negotiation on all ports. Extend Mode: Enables 250m transmission and VLAN isolation on ports 1-4 (10Mbps). |
| Environmental | |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
