TP-Link

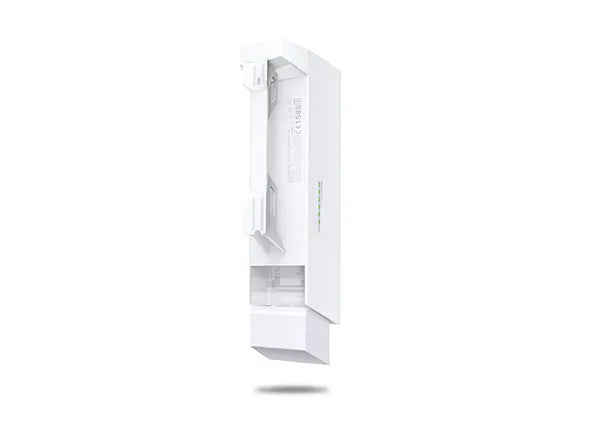

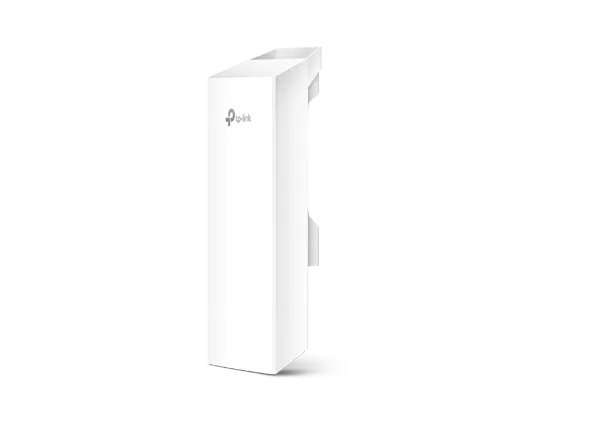

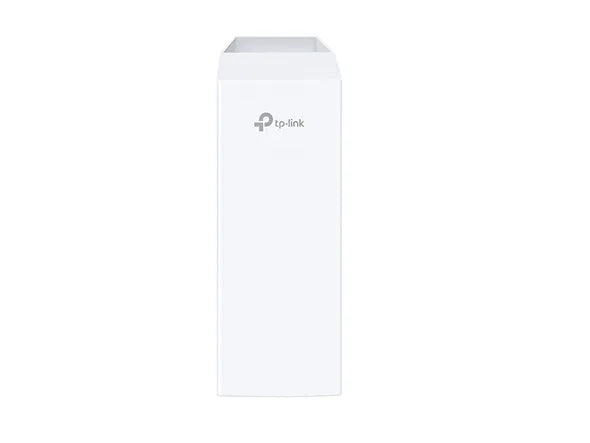

TP-Link CPE210 2.4GHz 300Mbps Outdoor Wi-Fi CPE
Pickup available at NexGen Computing
Usually ready in 24 hours
Extend Your Network Outdoors with High-Power, Long-Range Wireless
The TP-Link CPE210 is a cost-effective and powerful solution for extending wireless network coverage outdoors. It is specifically designed for long-distance applications, making it ideal for Point-to-Point (PtP), Point-to-Multipoint (PtMP), and general outdoor Wi-Fi coverage. With its enterprise-grade hardware and user-friendly management, the CPE210 is a perfect choice for both business and home users seeking reliable, long-range wireless connectivity.
Enterprise-Level Hardware for Superior Performance
Engineered with a Qualcomm Atheros enterprise-level chipset, a high-gain 9dBi dual-polarized antenna, and a dedicated metal reflector, the CPE210 ensures high performance and lower noise interference. This advanced antenna system allows for system-level optimizations that enable wireless transmission over distances greater than 5km. The device features adjustable transmission power, from 0 up to 27dBm (500mw), giving you precise control over your wireless signal.
Built for the Outdoors
The CPE210 is built to withstand harsh environments. Its outdoor ASA stabilized plastic enclosure is IPX5 waterproof certified, ensuring it can operate flawlessly in nearly any climate. It can endure a wide range of operating temperatures, from -40℃ (-40℉) to +70℃ (158℉). For added durability, it includes 15KV ESD and 6KV lightning protection.
Advanced Software & Management
TP-Link's exclusive Pharos MAXtream TDMA technology improves throughput, capacity, and latency, which is essential for high-density PtMP applications. The CPE210 also includes Pharos Control, a centralized management software that allows you to easily discover, monitor, and manage all network devices from a single PC. The device supports multiple operation modes, including AP, Client, AP Router, and AP Client Router (WISP), providing flexible solutions for various networking scenarios.
Flexible & Convenient Deployment
The included passive PoE adapter supports Power over Ethernet deployment up to 60 meters (200 feet), allowing for flexible installation without the need for a nearby power outlet. This feature also allows the device to be reset remotely, adding a layer of convenience for network maintenance.
Key Features at a Glance:
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna.
- Adjustable transmission power up to 27dBm/500mw.
- Long-range wireless transmission exceeding 5km.
- Pharos MAXtream TDMA technology for improved performance.
- Centralized management with Pharos Control software.
- Durable, weatherproof IPX5 certified enclosure.
- Passive PoE support for flexible placement.
| Technical Specifications | |
|---|---|
| Hardware Features | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 x 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in), 1 Grounding Terminal, 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC |
| Dimensions (W x D x H) | 224 x 79 x 60 mm |
| Antenna | Built-in 9dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 65° (H-Plane) / 35° (E-Plane) |
| Protection | 15KV ESD Protection, 6KV Lightning Protection |
| Enclosure | Outdoor ASA stabilized plastic material, IPX5 waterproof Certification |
| Wireless Features | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz, Dynamic) |
| Frequency | 2.4~2.483GHz |
| Transmission Power | 27dBm/500mw (Adjustable power by 1dBm) |
| Software Features | |
| Wireless Configurations | Pharos MAXtream TDMA Technology, Selectable Bandwidth: 5/10/20/40MHz, Auto Channel Selection, Transmit Power Control, Dynamic Frequency Selection (DFS), WDS Enable/Disable, Multi-SSID with VLAN Tagging (AP mode only), Distance/ACK Timeout Setting |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption, SSID Broadcast Enable/Disable, MAC Address Filtering |
| Management | Discovery and remote management via Pharos Control application, HTTP/HTTPS web-based management, System Log, SNMP Agent(v2c), Ping Watch Dog, Dynamic DDNS, SSH Server |
| System Tools | Signal Quality Indicators, Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Monitors, Spectrum Analyzer, Speed Test, Ping, Traceroute |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
