TP-Link

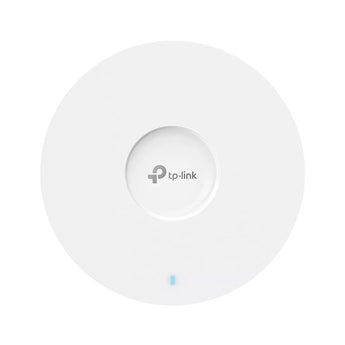

TP-Link Omada AX6000 WiFi 6 Ceiling Mount Access Point
Pickup available at NexGen Computing
Usually ready in 24 hours
Experience Blazing-Fast, High-Density WiFi with the TP-Link Omada AX6000 Access Point
Upgrade your business network to the next generation of wireless connectivity with the TP-Link Omada AX6000 Ceiling Mount Access Point. Designed for demanding environments such as offices, schools, and hospitality venues, this high-performance access point delivers ultra-fast WiFi 6 speeds, extensive coverage, and seamless integration into the Omada Software Defined Networking (SDN) platform for powerful, centralized management.
Unparalleled WiFi 6 Performance
Leveraging the latest 802.11ax technology, the EAP683UR offers combined speeds of up to 5952 Mbps (4804 Mbps on the 5 GHz band and 1148 Mbps on the 2.4 GHz band). This ensures smooth streaming, rapid downloads, and lag-free performance for a high number of connected devices. With support for advanced features like 1024-QAM, OFDMA, and MU-MIMO, the access point significantly reduces latency and increases efficiency in high-density environments.
Key Features:
- AX6000 Dual-Band WiFi 6: Experience incredible speeds of 4804 Mbps (5 GHz) and 1148 Mbps (2.4 GHz) for all your business needs.
- 2.5G Wired Performance: A 2.5 Gigabit Ethernet port breaks through the gigabit barrier, ensuring maximum throughput for your wired network.
- Ultra-Range Coverage: High-power transmission and 4x4 MIMO internal antennas provide robust and extensive wireless coverage for large areas.
- Centralized Cloud Management: Fully integrates with the Omada SDN platform, allowing you to manage your entire network from a single interface, either locally or from the cloud.
- Advanced Connectivity: Supports Omada Mesh for flexible wireless deployment and Seamless Roaming, which keeps clients connected to the best possible signal as they move.
- Flexible Power Options: Supports both 802.3at PoE+ for easy installation and DC power (adapter not included), giving you flexibility in deployment.
Technical Specifications
| Hardware Features | |
|---|---|
| Interface | 1× 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12 V / 2 A DC (Power adapter not included) |
| Max. Power Consumption | EU: 20.43W / US: 23.69W |
| Dimensions (W x D x H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Bluetooth | Yes, v5.2 |
| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | 1024-QAM, Long OFDM Symbol, OFDMA, MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, QoS |
| Wireless Security | Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Concurrent Clients | 510+ |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300, OC200), Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP683 UR, Ceiling/Wall Mounting Kits, Installation Guide |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
