Ubiquiti

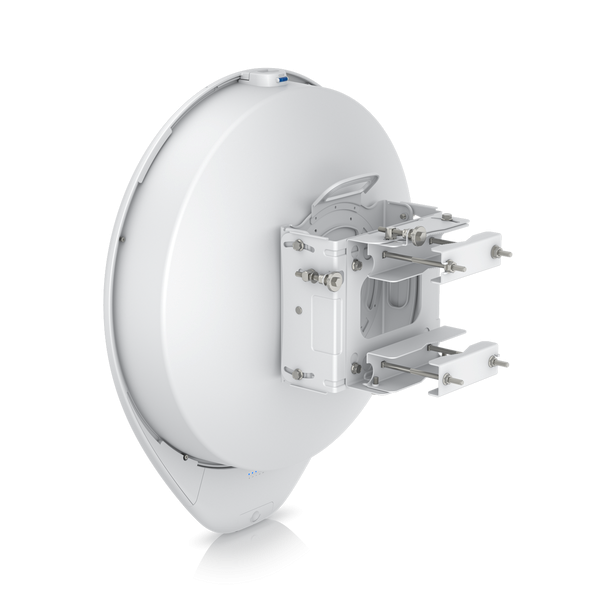

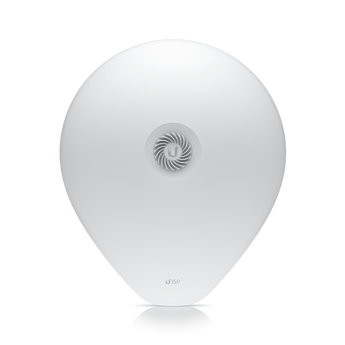

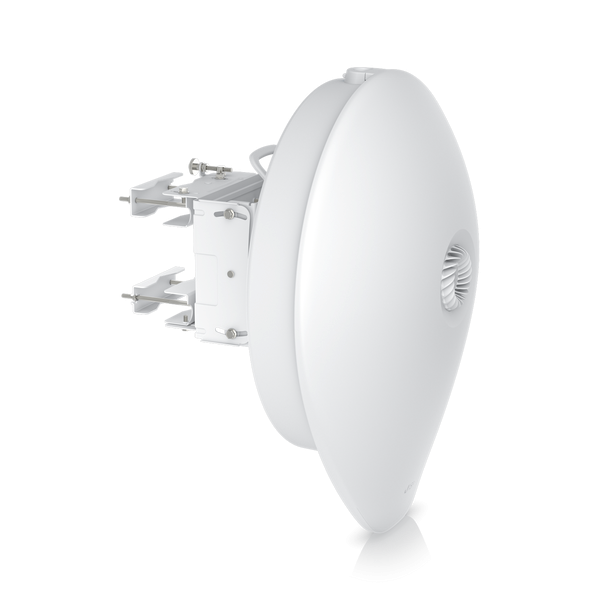

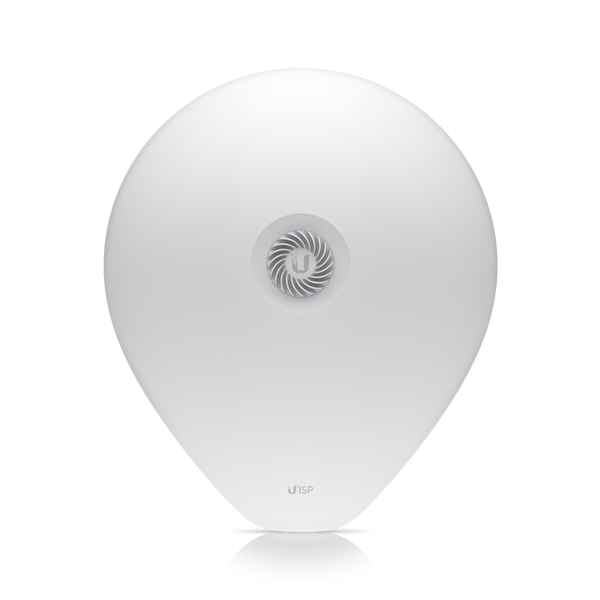

Ubiquiti airFiber 60 XR 15km+ 60GHz PtP Bridge
Pickup available at NexGen Computing
Usually ready in 24 hours
Dominate the Spectrum with Extreme-Range, Multi-Gigabit Connectivity
Introducing the Ubiquiti airFiber 60 XR (AF60-XR), a revolutionary 60 GHz Point-to-Point (PtP) bridge engineered for establishing high-capacity, long-distance links. This system is designed to deliver an incredible 5.4 Gbps total throughput (2.7 Gbps duplex) across distances of 15 kilometers and beyond, making it the ultimate solution for ISPs and enterprise backhauls. By utilizing the low-interference 60 GHz spectrum and Ubiquiti's Wave Technology, the AF60-XR provides stable, low-latency performance for the most demanding network links.
Unparalleled Performance and Reliability
The airFiber 60 XR is built for resilience. It features an integrated high-gain dish antenna for robust link establishment and a built-in 5 GHz backup radio that ensures operational redundancy and uninterrupted service, providing over 800+ Mbps of weather-resilient failover capacity. For ultimate network flexibility and throughput, it is equipped with both a 10G SFP+ port for high-speed fiber uplinks and a Gigabit Ethernet RJ45 port. An integrated GPS enhances synchronization and performance, ensuring your link operates at peak efficiency.
Robust Design & Simplified Management
Engineered to withstand harsh environments, the AF60-XR is constructed from UV-stabilized polycarbonate and steel, with an IPX6 weatherproofing rating for durability. Setup and management are streamlined thanks to a built-in Bluetooth management radio, allowing for quick configuration via the UISP® Mobile app. The device is fully managed and monitored through the comprehensive Ubiquiti Internet Service Provider (UISP) platform, which offers powerful tools for link planning, antenna alignment, and network diagnostics.
Technical Specifications
| Hardware & System | |
|---|---|
| Processor | Quad-Core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 1 GB DDR3L |
| Networking Interface | (1) 10/100/1000 Mbps RJ45 Port (1) 1/10G SFP+ Port |
| Max. Power Consumption | 24W |
| Power Method | Passive PoE 4-pairs or 2-pairs |
| Power Supply | 48VDC, 0.65A Gigabit PoE Adapter (Included) |
| GPS | Yes |
| Management | Bluetooth for easy setup via UISP App, Web UI |
| RF Performance | |
| Operating Frequency | 57 - 71 GHz (Depends on regulatory region) |
| Max. Throughput | 5.4 Gbps Total (2.7 Gbps Duplex) |
| Max. Range | 15+ km |
| Backup RF | 5 GHz (800+ Mbps) |
| Channel Bandwidth | 2160, 1080 MHz |
| Encryption | WPA2-PSK (AES) |
| Mechanical & Environmental | |
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
| Weight | Without Mount: 8.6 kg (19 lb) With Mount: 13 kg (28.7 lb) |
| Enclosure Materials | UV Stabilized Polycarbonate, Steel |
| Mounting | Precision Alignment Kit (Included) |
| Wind Loading | 422N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | FCC, IC, CE |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
