Ubiquiti UISP airMAX 5 GHz Rocket Prism 5AC Includes POE Injector | RP-5AC-Gen2
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Unrivaled Wireless Performance in Congested Environments

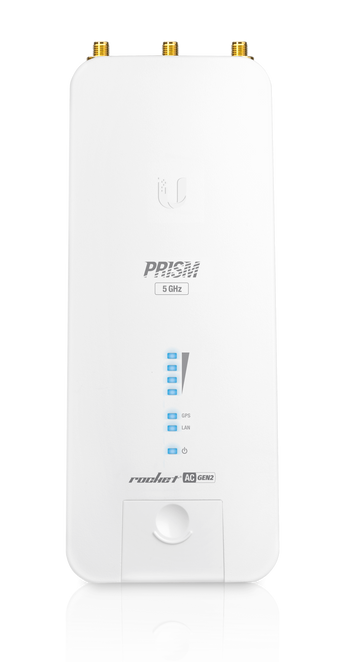

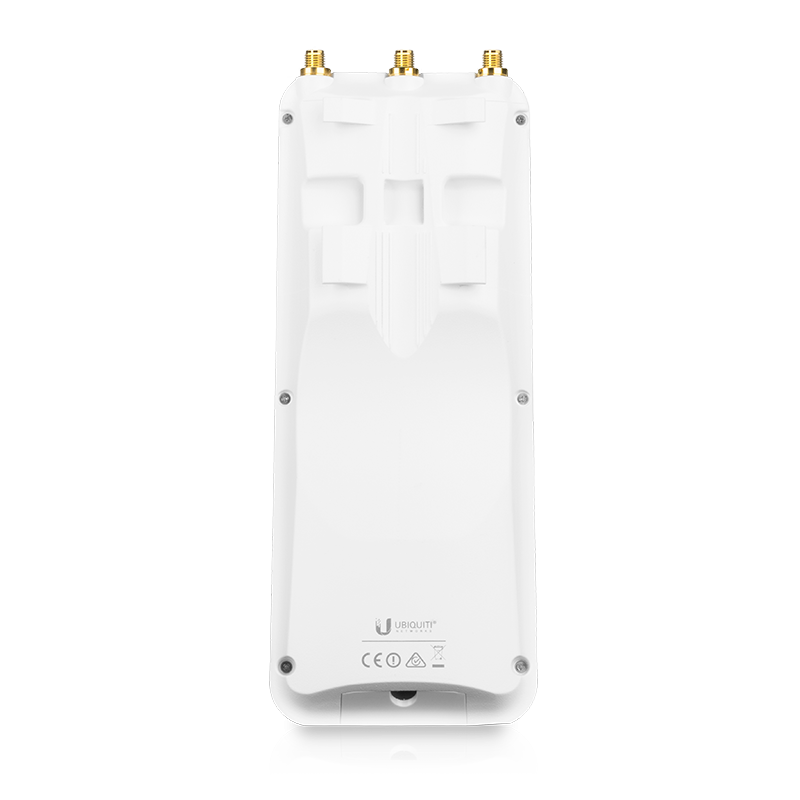

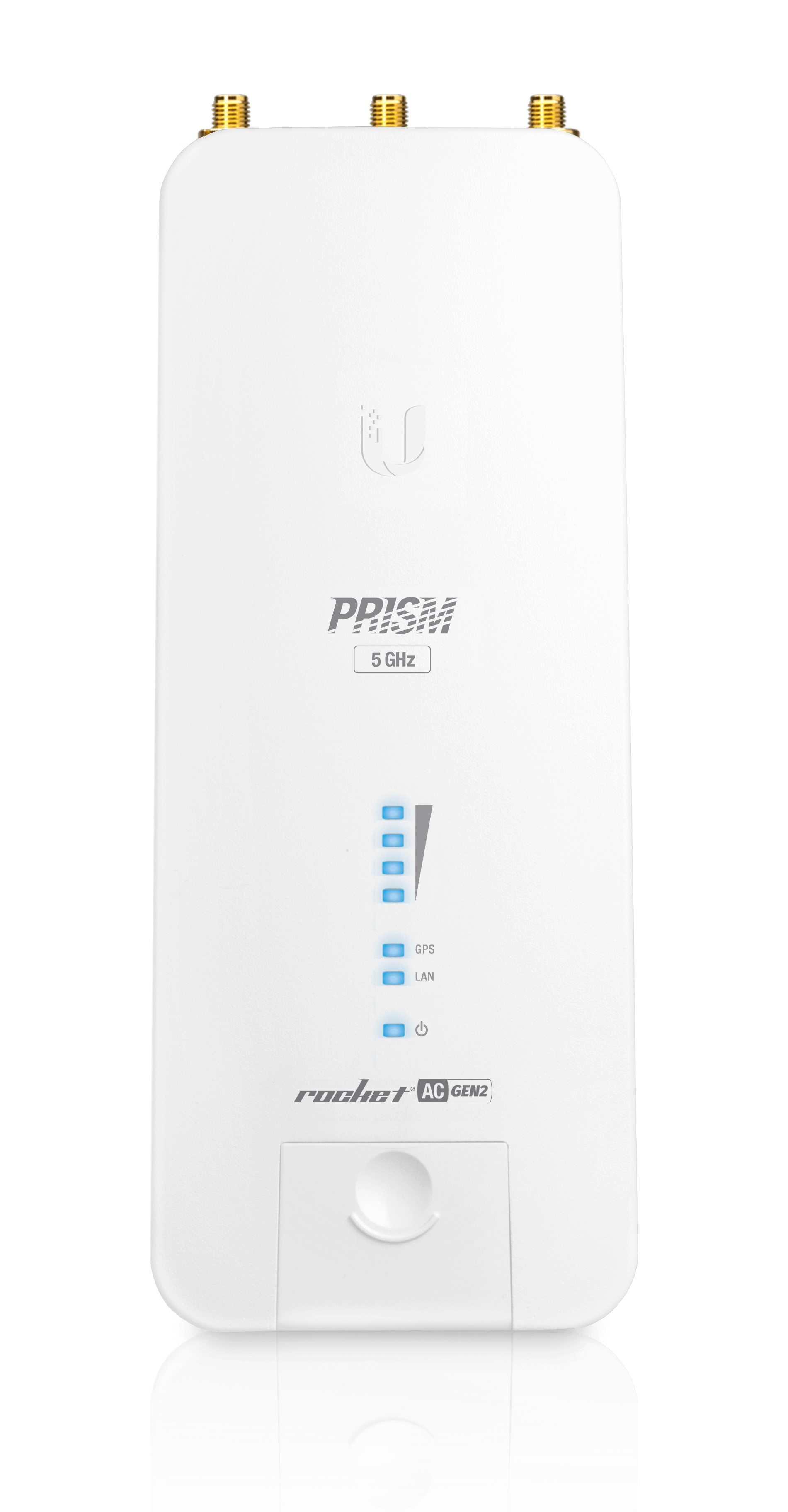

Experience exceptional wireless performance with the Ubiquiti airMAX Rocket Prism 5AC Gen2, a 5 GHz Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) BaseStation designed to excel in the most demanding RF environments. This unit features Ubiquiti's revolutionary airPrism technology, which provides breakthrough radio selectivity in unlicensed wireless band performance. By isolating signals within the operating channel, airPrism technology significantly increases capacity and throughput in co-location deployments. The Rocket Prism 5AC Gen2 is engineered for high performance, featuring a custom Ubiquiti airMAX ac processor and delivering real TCP/IP throughput of over 500+ Mbps.
Advanced Filtering and Superior Co-Location
The Rocket Prism 5AC Gen2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. It also features enhanced protection against ESD events for improved durability. With GPS Sync support, this BaseStation enables faster, more scalable, carrier-class networks, achieving up to 90% higher throughput than competing solutions. The die-cast aluminum casing provides robust protection against electromagnetic interference, ensuring reliable operation.
Global Deployment and Flexible Configuration
Deploy the Rocket Prism 5AC Gen2 anywhere in the world, with full-band 5 GHz coverage from a single radio. This allows for incredible flexibility in configuring channel bandwidths, subject to local country regulations. The included 24V, 1A Gigabit PoE adapter provides power and data over a single Ethernet cable, simplifying installation.
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Material | Die-cast Aluminum |
| Hardware | |
| Processor | Atheros MIPS 74Kc |
| Memory | 128 MB DDR2 SDRAM |

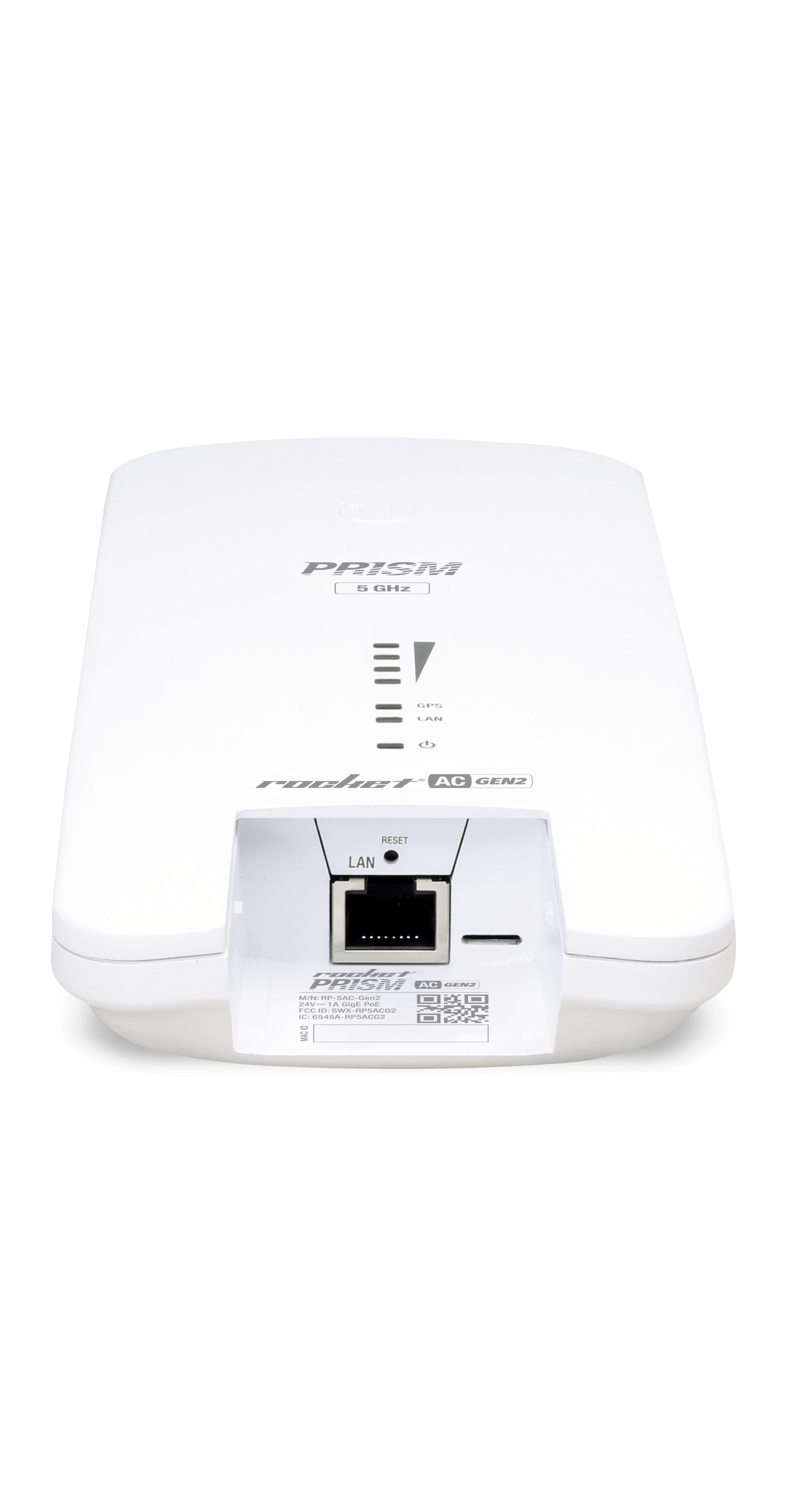

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| RF Connectors | (2) RP-SMA (Waterproof), (1) GPS (Waterproof) |

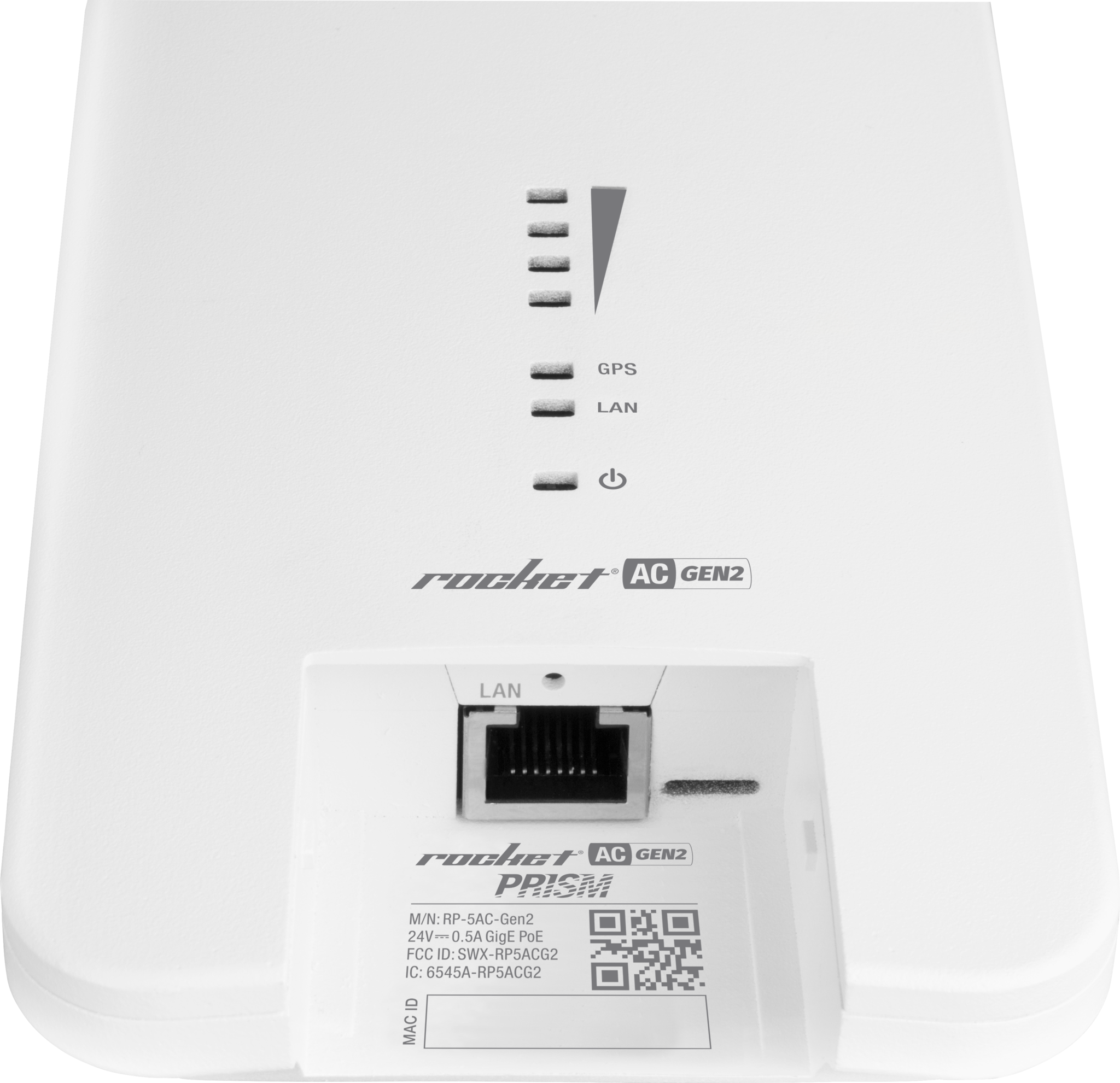

| LEDs | (4) Signal Strength, GPS, Power, LAN |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 9.5W |
| Supported Voltage Range | 18-26VDC |
| Operating Frequency | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 | 5150 - 5250 MHz |
| USA U-NII-2A | 5250 - 5350 MHz |
| USA U-NII-2C | 5470 - 5725 MHz |
| USA U-NII-3 | 5725 - 5850 MHz |
| Environmental | |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| ESD/EMP Protection | ± 24kV Contact / Air for Ethernet |
| Shock and Vibration | ETSI300-019-1.4 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
