Uniview

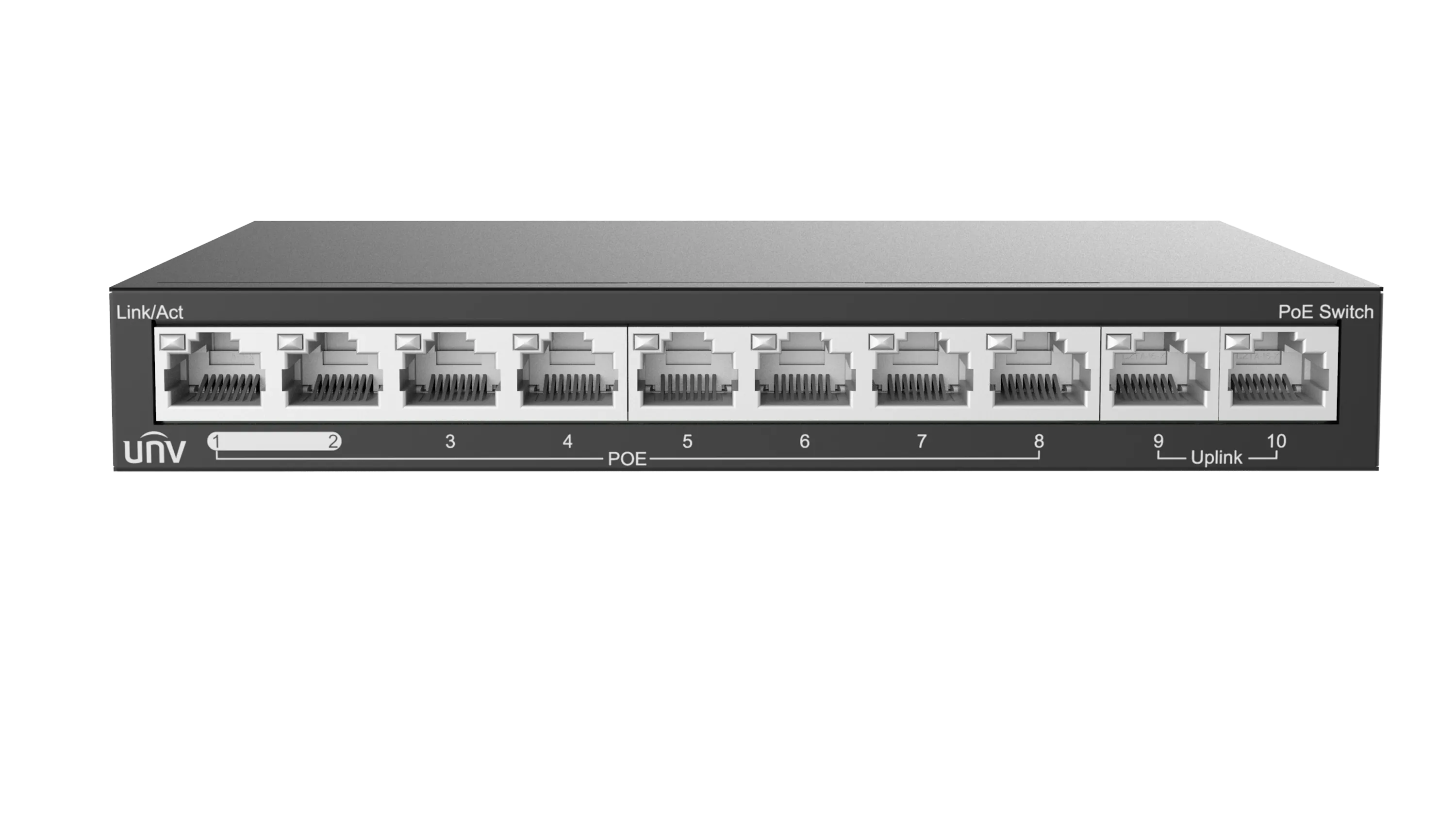

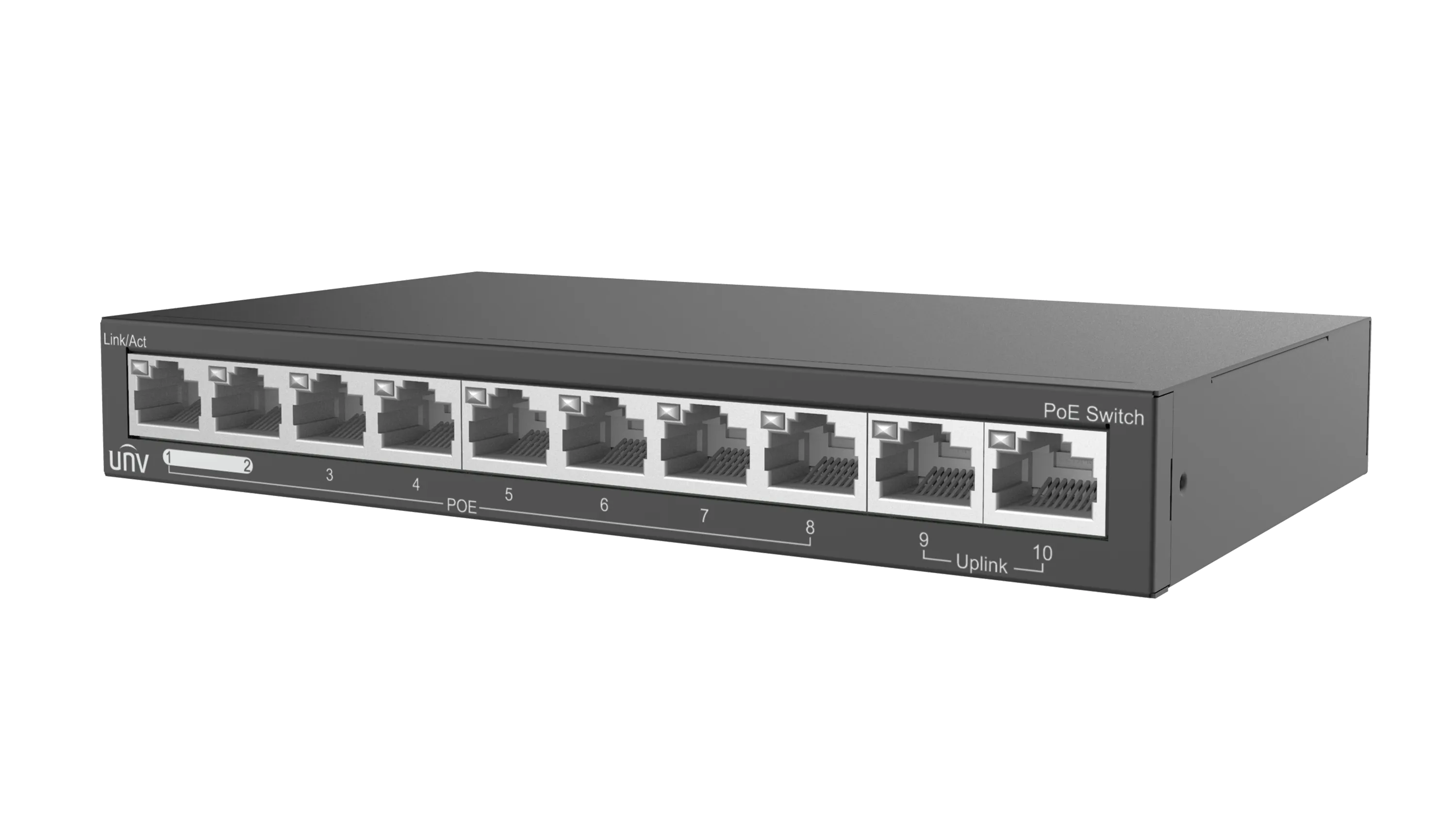

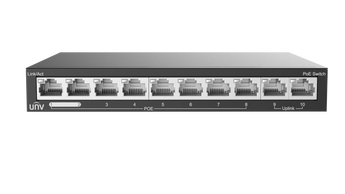

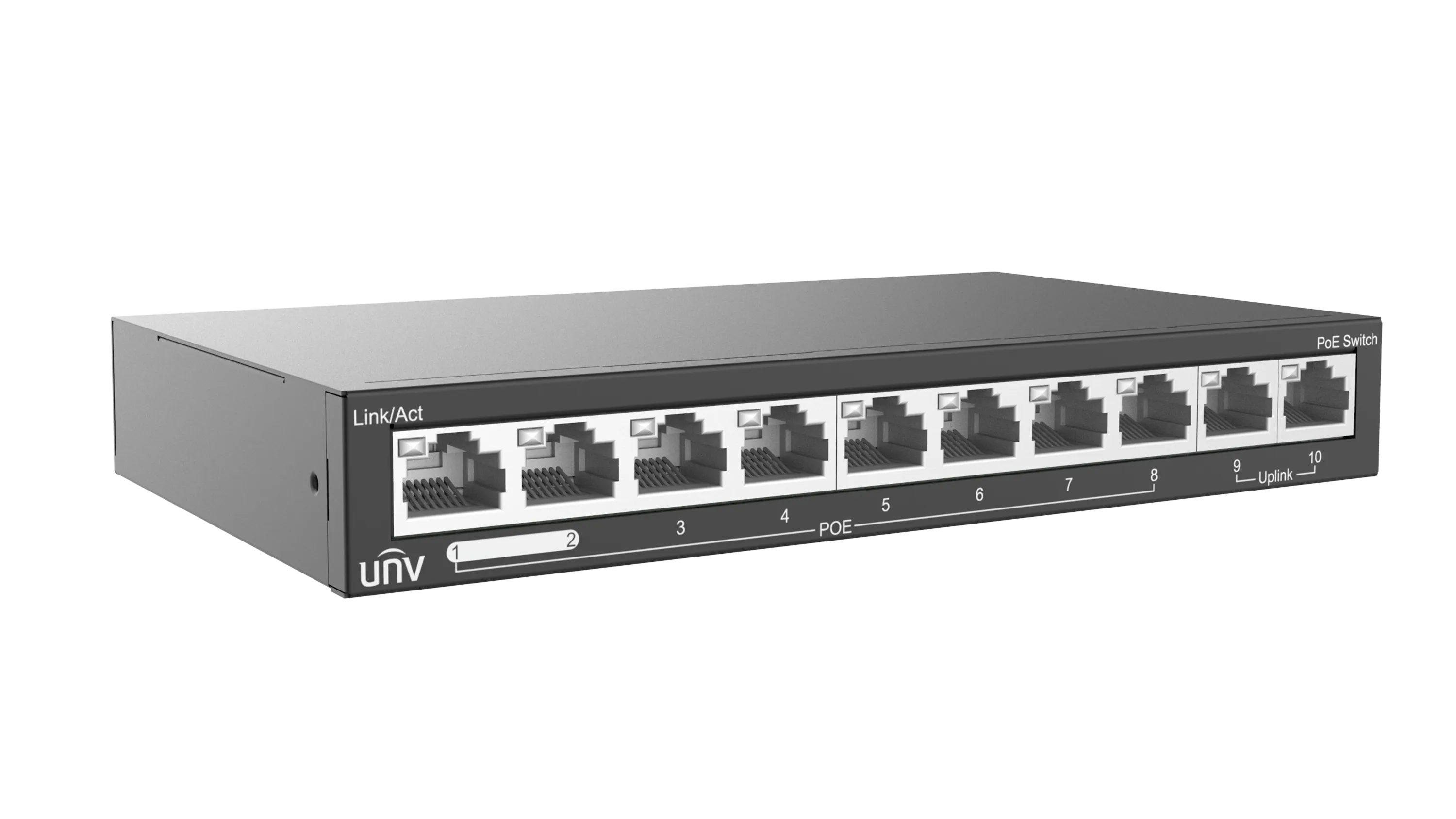

Uniview 10-Port Unmanaged Fast Ethernet Switch with 8 PoE+ Ports
Pickup available at NexGen Computing
Usually ready in 24 hours
Power Your Network with Uniview's Reliable 8-Port PoE+ Switch
Streamline your surveillance or network setup with the Uniview 10-Port Unmanaged PoE+ Switch. Designed for simplicity and efficiency, this switch provides power and data over a single Ethernet cable to 8 PoE-compatible devices like IP cameras, VoIP phones, and wireless access points. With a robust 88W total power budget, it delivers up to 30W per port, supporting both IEEE 802.3af and 802.3at standards. Its plug-and-play design means no configuration is required, making it an ideal solution for both novice and professional installers.
Extended Reach for Flexible Installations
A standout feature is the innovative EXTEND mode, which allows for PoE and data transmission up to an impressive 250 meters (820 feet). This capability is perfect for large-area deployments such as warehouses, parking lots, and retail spaces, eliminating the need for additional power outlets or extenders in distant locations. The switch also features multiple working modes to adapt to your specific needs, including options for network security and surveillance optimization.
Built for Durability and Silent Operation
Housed in a sturdy, all-metal casing, this Uniview switch is built for long-term reliability. The fanless design ensures completely silent operation, making it suitable for deployment in noise-sensitive environments like offices and classrooms. Two dedicated 10/100Mbps uplink ports provide a stable connection to your main network or NVR, ensuring smooth data flow without sacrificing any of the 8 PoE ports.
Comprehensive Specifications Table
| Hardware Specification | |
|---|---|
| Model | NSW2020-10T-POE-IN |
| Ports | 8 x 10/100Mbps PoE RJ45 Ports 2 x 10/100Mbps Uplink RJ45 Ports |
| Switching Capacity | 2 Gbps |
| Forwarding Performance | 1.49 Mpps |
| MAC Address Table | 1K |
| Packet Buffer | 448 Kbit |
| Working Modes | Default (Normal), EXTEND (Surveillance) |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az |
| Power over Ethernet (PoE) | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Ports | Ports 1-8 |
| Max. Power Per Port | 30W |
| Total PoE Power Budget | 88W |
| General | |
| Power Supply | 48/51V DC (via external power adapter 100-240V AC, 50/60Hz) |
| Max. Power Consumption | 94W |
| Cooling | Fanless |
| Dimensions (W×D×H) | 171 x 103 x 25 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
