Uniview

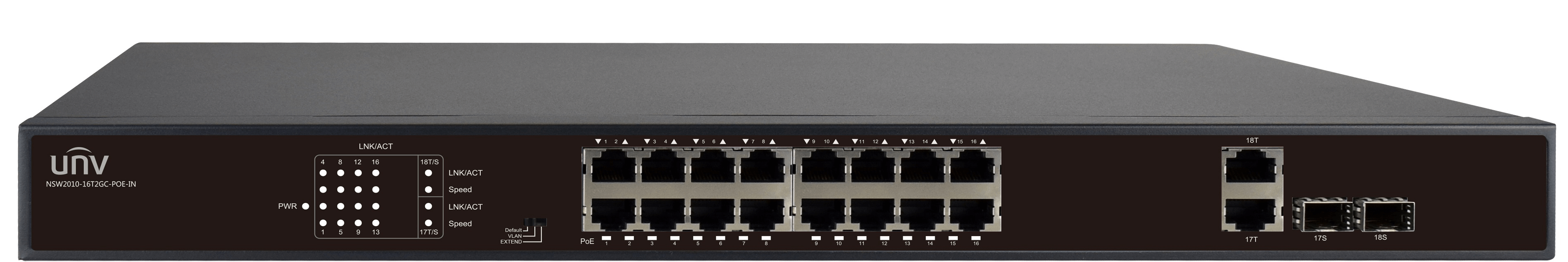

UNV - 16 Port PoE Switch, supports EXTEND Mode up to 250M
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Precision for Professional Surveillance
Experience robust and reliable network performance with the Uniview 16-Port PoE+ Switch, engineered for professional surveillance systems and demanding network environments. This high-performance switch provides both power and data over a single Ethernet cable, simplifying your installation and reducing clutter. With a total power budget of 250W, it can deliver up to 30W per port, easily powering IP cameras, VoIP phones, wireless access points, and other PoE-compatible devices.
Extended Reach with Surveillance Mode
A standout feature of this switch is its EXTEND (Surveillance) mode, which allows for data and power transmission up to an impressive 250 meters. This capability is perfect for large-area installations such as parking lots, warehouses, and campuses, eliminating the need for additional power outlets or network extenders. In addition to the EXTEND mode, the switch offers a Normal mode for standard operation and a Secure (VLAN) mode, where downlink ports can only communicate with the uplink ports, enhancing network security.
Flexible Connectivity and Solid Performance
The switch is equipped with 16 10/100Mbps PoE+ ports and 2 Gigabit combo uplink ports (RJ45/SFP), providing flexible, high-speed connections to your network backbone or NVRs. With a switching capacity of 7.2Gbps and a forwarding performance of 5.36Mpps, it ensures smooth, non-blocking data flow for high-bandwidth video streams. Housed in a durable, all-metal chassis, this switch is built for reliability and longevity.
Comprehensive Specifications
| Hardware Specifications | |
|---|---|
| Ports | 16 x 10/100Mbps PoE Ports (RJ45) 2 x 10/100/1000Mbps Combo Ports (RJ45/SFP) |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Max. PoE Power | Total Budget: 250W Max per Port: 30W |
| Switching Capacity | 7.2Gbps |
| Forwarding Performance | 5.36Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 4Mbit |
| Working Modes | Default (Normal), VLAN (Secure), EXTEND (Surveillance up to 250m) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Power Supply | AC: 100-240V, 50/60Hz |
| Cooling | 2 Fans |
| Dimensions (W x D x H) | 440mm x 207mm x 45mm (17.3" x 8.1" x 1.8") |
| Weight | <4.2kg |
| Housing | All Metal |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Operating Humidity | 10% ~ 90% (non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
