Uniview

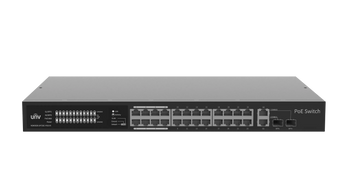

Uniview 26-Port PoE+ Switch with 2 Gigabit Combo Uplinks, 370W
Pickup available at NexGen Computing
Usually ready in 24 hours
Power and Flexibility for Your Professional Network
Elevate your network's capability with the Uniview 26-Port PoE+ Switch, a robust and high-performance solution designed for demanding environments like large-scale IP surveillance, smart offices, and enterprise LANs. This switch delivers a massive 370W total power budget across 24 high-speed PoE+ ports, efficiently powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices without needing separate power sources. Two additional Gigabit Combo uplink ports provide flexible, high-speed connections to your core network, ensuring smooth data flow and eliminating bottlenecks.
Engineered for Advanced Surveillance
This switch is optimized for security applications with multiple, user-selectable working modes. Activate EXTEND (Surveillance mode) to achieve an impressive data and power transmission distance of up to 250 meters, perfect for cameras positioned far from the switch. The VLAN (Secure mode) enhances security by isolating downlink ports, ensuring they can only communicate with the uplink ports, protecting your network from internal threats. The all-metal housing ensures durability and reliable operation, making it a cornerstone of your security infrastructure.
Intelligent and Reliable Operation
Designed for plug-and-play deployment, this unmanaged switch is easy to use while offering advanced features like port traffic control and buffer optimization for peak performance. It complies with IEEE 802.3at/af PoE standards, delivering up to 30W per port to power even high-demand devices. With a substantial 8.8 Gbps switching capacity and a 16K MAC address table, this Uniview switch is built to handle heavy network loads with enterprise-grade reliability.
Comprehensive Specifications
| Hardware Specifications | |
|---|---|
| Ports | 24 x 10/100Mbps PoE ports (RJ45) 2 x 1000Mbps Combo ports |
| Switching Capacity | 8.8 Gbps |
| Forwarding Performance | 6.55 Mpps |
| Packet Buffer | 4 Mbit |
| MAC Address Table | 16K |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| PoE (Power over Ethernet) | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Max. PoE Power (Total) | 370W |
| Max. Power per Port | 30W |
| Priority Ports | Ports 1 to 8 |
| Features | |
| Working Modes | Default (Normal), VLAN (Secure), EXTEND (Surveillance) |
| Physical & Environmental | |
| Power Supply | AC: 100 to 240V, 50/60Hz |
| Max. Power Consumption | 390W |
| Cooling Fans | 1 |
| Dimensions (W×D×H) | 440mm x 245mm x 44mm |
| Weight | 2.90 kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
