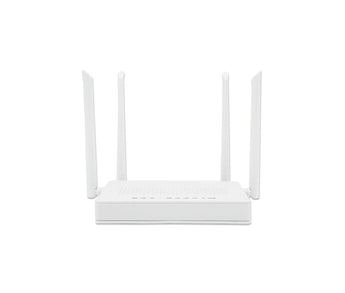

VSOL V2802DAC Dual-Band WiFi 5 xPON ONT/ONU with 2x Gigabit Ethernet Ports
Pickup available at NexGen Computing
Usually ready in 24 hours
Blazing-Fast, Uninterrupted Connectivity for Your Home or Office
Experience the next level of fiber optic internet with the VSOL V2802DAC, a high-performance xPON Optical Network Unit (ONU) designed to meet the demanding needs of modern FTTH (Fiber to the Home) networks. This versatile device functions as both an ONU and a powerful WiFi 5 router, delivering seamless, high-speed internet access for all your devices. Whether you're streaming 4K content, engaging in competitive online gaming, or running a busy home office, the V2802DAC provides the reliability and performance you need.
Key Features:
- Dual-Mode xPON Compatibility: Automatically detects and adapts to both GPON and EPON networks, offering maximum flexibility for various fiber internet providers.
- High-Speed WiFi 5: Equipped with dual-band 802.11ac technology, the V2802DAC delivers combined speeds of up to 1200Mbps (AC1200), ensuring smooth, lag-free performance for all your wireless devices.
- Gigabit Wired Connections: Two Gigabit Ethernet (GE) ports provide ultra-fast, stable wired connections for devices like PCs, gaming consoles, and smart TVs.
- EasyMesh Support: Expand your WiFi coverage seamlessly by creating a mesh network with other EasyMesh-compatible devices for whole-home connectivity without dead zones.
- Advanced Layer 2/3 Functions: Supports a wide range of networking features including VLAN tagging, QoS for traffic prioritization, IGMP Snooping for optimized multicast streaming, and a built-in firewall for enhanced security.
- IPv4/IPv6 Dual Stack: Future-proof your network with support for both IPv4 and IPv6 protocols, ensuring compatibility with the latest internet standards.
- Remote Management: Fully manageable through a VSOL OLT using OAM/OMCI, Telnet, WEB, and TR069 protocols, allowing for easy configuration and maintenance.
Technical Specifications
| Hardware Parameters | |
| Dimensions (L×W×H) | 178mm × 120mm × 30mm |
| Net Weight | 0.31kg |
| Power Adapter | DC 12V, 1A, external AC-DC power adaptor |
| Power Supply | ≤12W |
| Operating Temperature | 0°C to +55°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Indicators | PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G |
| PON Interface | |
| Port Type | 1 x PON port (EPON PX20+ and GPON Class B+) |
| Connector | SC single mode, SC/UPC connector |
| TX Optical Power | 0 to +4dBm |
| RX Sensitivity | -27dBm |
| Transmission Distance | 20KM |
| Wavelength | TX 1310nm, RX 1490nm |
| User & WLAN Interface | |
| User Interface | 2 x GE, Auto-negotiation, RJ45 ports |
| WLAN Standard | Compliant with IEEE802.11b/g/n/ac |
| Frequency | 2.4GHz & 5.8GHz |
| Antenna | 2T2R, 5dBi antenna |
| Speed | Up to 1.167Gbps |
| Wireless Features | Multiple SSID, WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) authentication, EasyMesh |
| Software & Management | |
| Management | OAM/OMCI, Telnet, WEB, TR069 |
| Connection Modes | Support bridge, router & bridge/router mixed mode |
| Data Service Functions | Full speed non-blocking switching, 2K MAC address table, VLAN support, Port Monitoring/Mirroring/Rate Limiting/SLA, IGMP Snooping |
| QoS | Support 4 queues, SP, WRR, 802.1P, DSCP |
| L3 Functions | Static Route, DHCP Server, NAT/DMZ/DDNS/Virtual Server, DHCP/PPPOE/Static, IPv4/IPv6 dual stack |
| Security | Support ACL, MAC filter, Firewall |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
