TP-Link

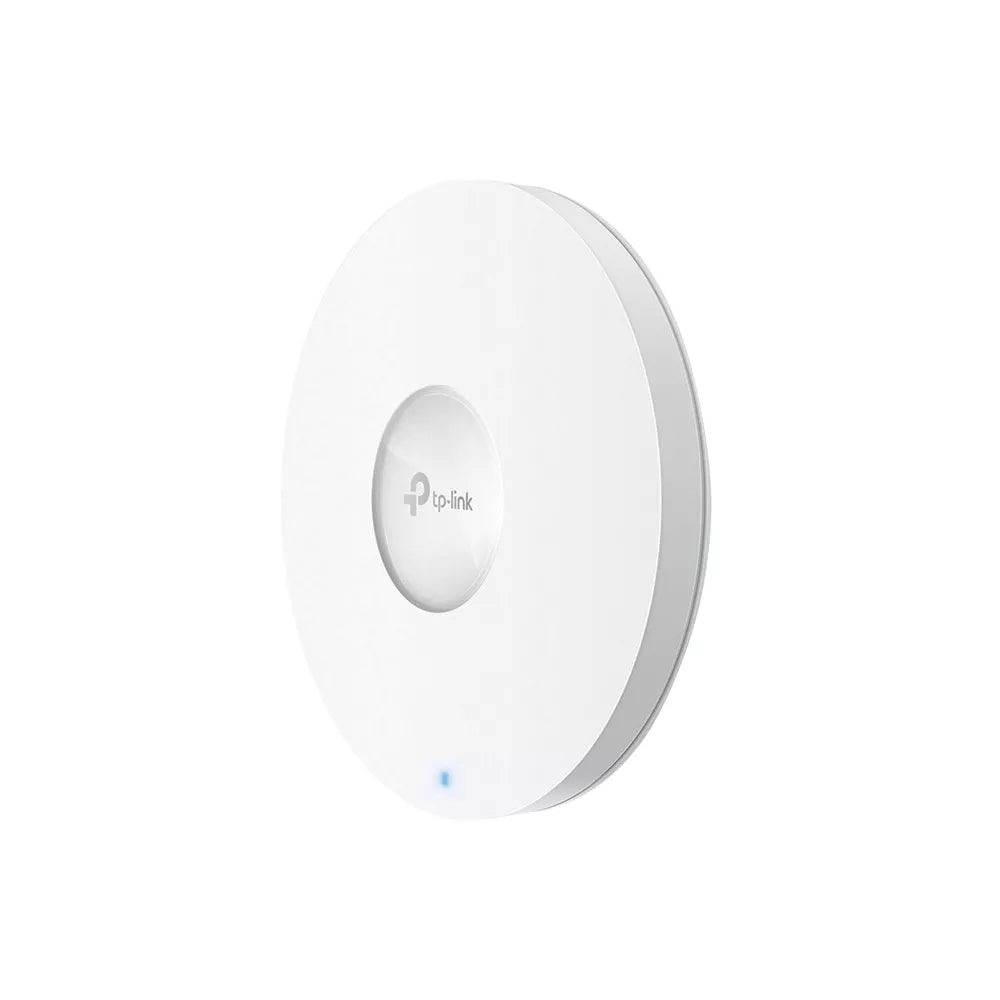

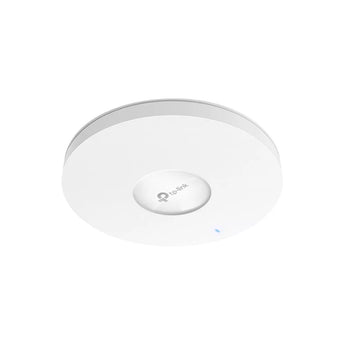

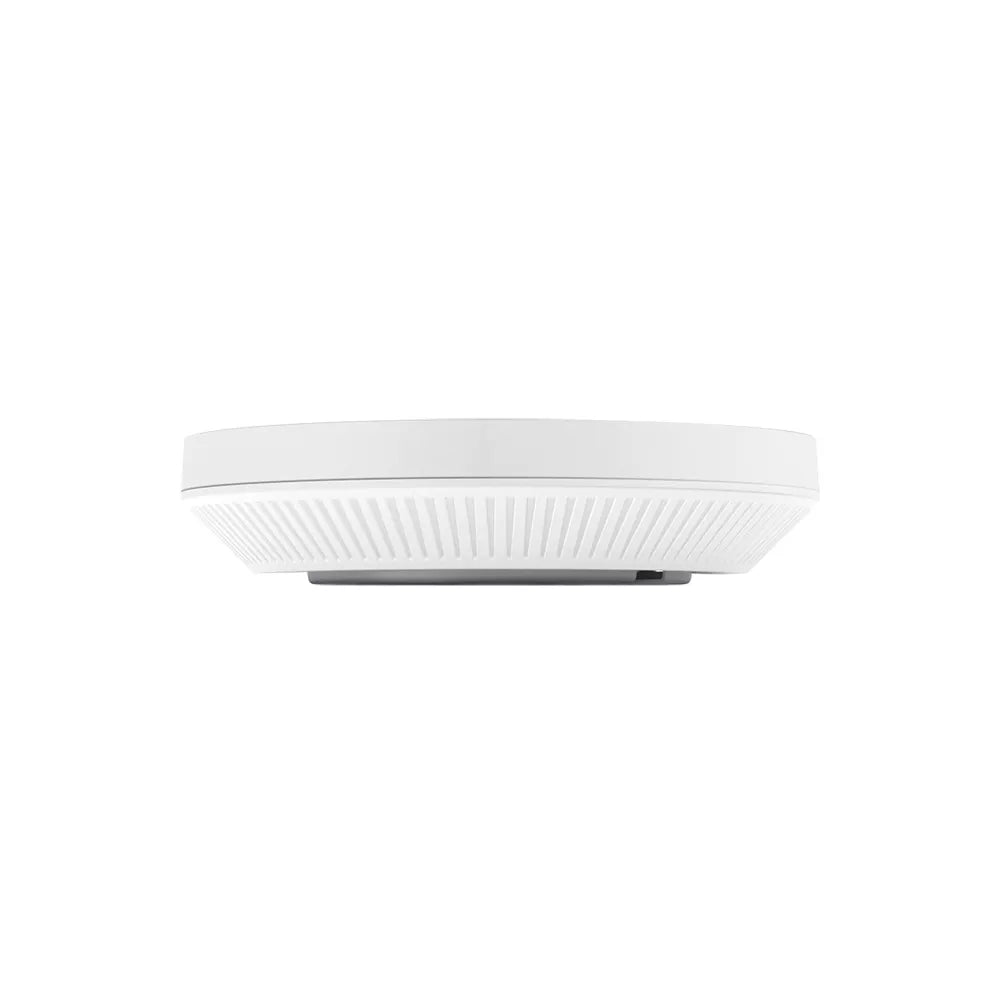

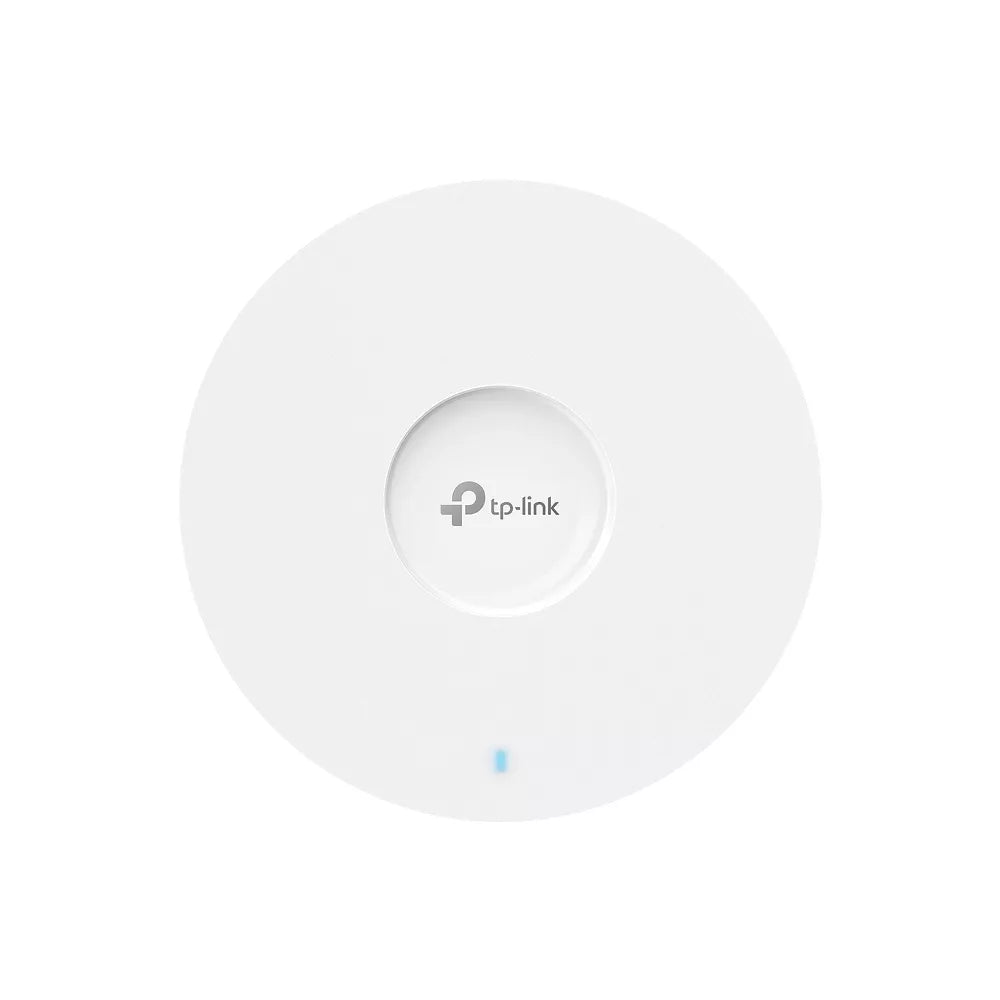

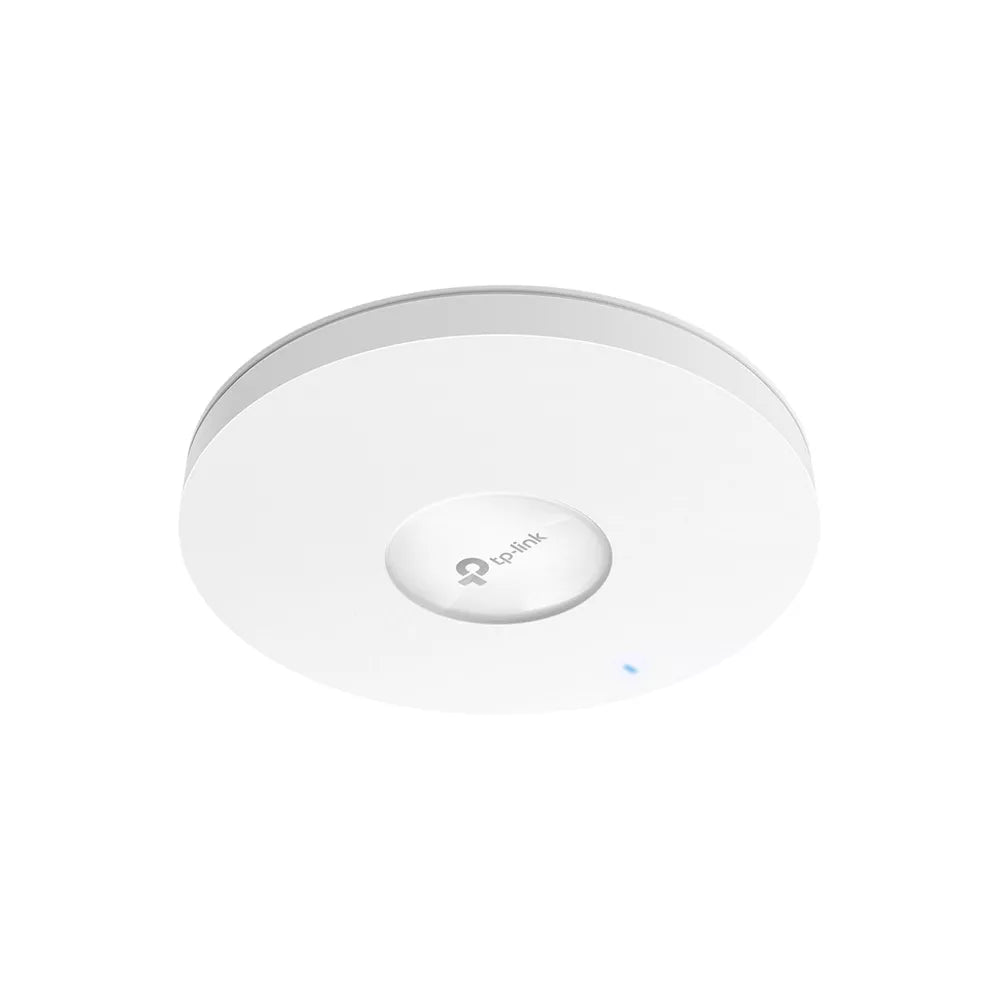

TP-Link Omada EAP653 AX3000 WiFi 6 Ceiling Mount Access Point
Pickup available at NexGen Computing
Usually ready in 24 hours
Blazing-Fast AX3000 WiFi 6 for High-Density Environments
Experience the next generation of wireless connectivity with the TP-Link EAP653, designed for demanding business environments. It delivers lightning-fast AX3000 WiFi 6 speeds, reaching up to 2976 Mbps with 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band. This ensures smooth streaming, rapid downloads, and lag-free conferencing, even with numerous connected devices. The integration of advanced WiFi 6 features like OFDMA and MU-MIMO significantly improves efficiency, allowing more devices to connect simultaneously without sacrificing speed, making it ideal for offices, hotels, classrooms, and retail spaces.
Seamless Integration with Omada SDN
The EAP653 is part of the Omada Software Defined Networking (SDN) platform, which provides 100% centralized cloud management for a highly scalable network. Manage your entire network, including access points, switches, and routers, from a single, intuitive interface via a web browser or the Omada app. This platform enables Zero-Touch Provisioning, intelligent monitoring, and seamless management across multiple sites, simplifying network administration and reducing operational costs.
Optimized Performance and Flexible Deployment
Engineered for peak performance, the EAP653 supports the 160 MHz channel, doubling the data throughput at peak times on a single stream. Features like Omada Mesh allow for wireless connectivity between access points, offering extended range and flexible deployment in hard-to-wire areas. Seamless Roaming ensures that video calls and voice streams remain uninterrupted as users move between locations. The device is powered by 802.3at PoE+ for easy and flexible installation without the need for extra power adapters.
Ultra-Slim and Elegant Design
The EAP653 features an ultra-slim, elegant design (Φ160 mm × 33.6 mm) that blends perfectly into any modern interior. Its compact and agile form factor allows for unobtrusive ceiling or wall mounting (kits included), saving space while delivering exceptional wireless performance.
| Technical Specifications | |
|---|---|
| Hardware Features | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE+ / 12V DC (Adapter not included) |
| Power Consumption | EU: 13.07 W / US: 13.98 W |
| Dimensions (W x D x H) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi |

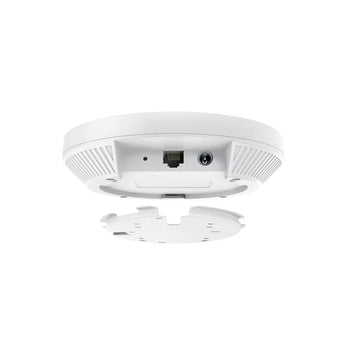

| Mounting | Ceiling / Wall Mounting (Kits included) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | 1024-QAM, 4× Longer OFDM Symbol, OFDMA, MU-MIMO, HE160 (160 MHz), Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming |
| Wireless Security | Captive Portal Authentication, Access Control, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300, OC200), Omada Software Controller, Omada Cloud-Based Controller |
| Cloud Access | Yes (Through Omada Controller) |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Management Features | Email Alerts, LED ON/OFF Control, SNMP v1, v2c, v3, SSH, Web-based Management (HTTP/HTTPS), L3 Management, Multi-site Management, Management VLAN |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP653 Access Point, Ceiling/Wall Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
