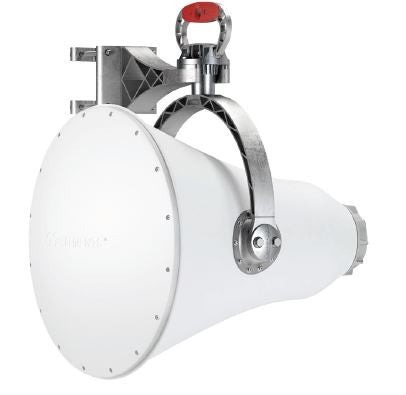

RF elements UltraHorn TP 5GHz - 24dBi Antenna | UH-TP-5-24
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Unprecedented Network Performance in Noisy Environments
Experience the pinnacle of noise rejection and link performance with the RF elements UltraHorn™ TP 5-24. This high-gain, highly directional scalar horn antenna is engineered to create robust, long-distance Point-to-Point (PtP) links, even in the most saturated RF environments. Its unique design focuses the signal into a single main lobe, completely eliminating side lobes. This allows the antenna to reject noise and interference, resulting in a stable connection with a low noise floor and high throughput.
Revolutionary TwistPort™ Connector for Zero Loss
The UltraHorn™ TP 5-24 features RF elements' industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. This innovative design eliminates the need for coaxial RF cables and connectors, creating a virtually lossless connection to the radio. Installation is brilliantly simple and can be done with one hand – just twist and lock the radio into place for a perfect connection every time.
Key Features and Benefits:
- 24dBi High Gain: Ensures strong signal reception for stable, long-range links across an ultra-wideband spectrum of 5180-6775 MHz.
- Zero Side Lobes: The symmetrical beam pattern is focused into a single main lobe, providing ultimate noise rejection and making the antenna easy to aim.
- 99% Beam Efficiency: With virtually all energy focused in the main beam, the antenna offers unmatched performance in co-location deployments without needing costly aftermarket shields.
- Lossless TwistPort™ Connector: The quick-locking waveguide port ensures maximum RF power is transferred from the radio to the antenna.
- Durable Construction: Built from UV-resistant ABS plastic, polycarbonate, aluminum, and stainless steel to withstand harsh environmental conditions with an IP55 rating.
- Innovative Mounting System: The pre-assembled antenna and two-part mounting bracket simplify installation and allow for precise ±25° azimuth and elevation adjustments.
Comprehensive Technical Specifications
| Performance | |
|---|---|
| Frequency Range | 5180 - 6775 MHz |
| Gain | 24 dBi |
| Azimuth Beam Width -3 dB | H 11° / V 11° |
| Elevation Beam Width -3 dB | H 11° / V 11° |
| Azimuth Beam Width -6 dB | H 16° / V 15° |
| Elevation Beam Width -6 dB | H 16° / V 15° |
| Beam Efficiency | 99 % |
| Front-to-Back Ratio | 40 dB |
| Polarization | Dual-Linear H+V |
| Technical Data | |
| Antenna Connection | TwistPort™ - Quick Locking Waveguide Port |
| Antenna Type | Horn |
| Materials | UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel |
| Environmental Rating | IP55 |
| Pole Mounting Diameter | 30 - 80 mm |
| Operating Temperature | -30°C to +55°C (-22°F to +131°F) |
| Wind Survival | 160 km/h (100 mph) |
| Wind Load | 150 N (Front) / 104 N (Side) at 160 km/h |
| Mechanical Adjustment | ± 25° Elevation, ± 25° Azimuth |
| Weight | 8.2 kg (18 lbs) – single unit |
| Dimensions (W x H x D) | 572 x 635 x 578 mm (22.5 x 25 x 22.8 in) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
