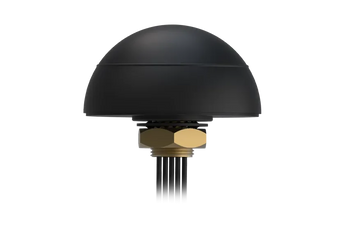

Teltonika 5-in-1 MIMO Roof Antenna (4G LTE, Wi-Fi, GNSS)
Pickup available at NexGen Computing
Usually ready in 24 hours
All-in-One Connectivity Solution
Experience robust, high-performance connectivity with the Teltonika Combo MIMO Antenna, a single, rugged unit that integrates five separate antennas. This 5-in-1 solution is engineered to provide reliable 4G LTE, dual-band Wi-Fi, and precise GNSS positioning for a wide range of mobile and IoT applications. By combining MIMO (Multiple Input, Multiple Output) technology for both cellular and Wi-Fi, this antenna significantly enhances data speeds and signal strength. It is an ideal choice for industrial vehicles, commercial telematics, remote monitoring, and other demanding M2M systems.
Rugged & Weatherproof Design
Built to withstand harsh environments, the antenna is housed in a durable, UV-stable ABS radome with an IP65 rating for protection against dust and water ingress. Its low-profile and robust construction ensures longevity and reliable performance in operating temperatures ranging from -40°C to +85°C. The secure screw-mount installation makes it a permanent and tamper-proof solution for vehicles and outdoor enclosures.
Seamless Integration
The antenna comes equipped with five 3-meter RG174 cables, allowing for flexible placement and easy connection to a variety of Teltonika routers and other compatible devices. The cellular and GNSS antennas terminate with standard SMA male connectors, while the Wi-Fi antennas use RP-SMA male connectors, ensuring broad compatibility.
Technical Specifications
| LTE MIMO Antenna | |
|---|---|
| Frequency Range | 698-960 / 1710-2690 MHz |
| Gain | 3 dBi |
| Polarization | Linear |
| V.S.W.R | <3.0 |
| Impedance | 50 Ω |
| Connector | 2x SMA Male |
| Wi-Fi MIMO Antenna | |
| Frequency Range | 2400-2483.5 / 4900-5825 MHz |
| Gain | 2 dBi |
| Polarization | Linear |
| V.S.W.R | <2.5 |
| Impedance | 50 Ω |
| Connector | 2x RP-SMA Male |
| GNSS Antenna | |
| Frequency Range | 1575.42-1610 MHz |
| LNA Gain | 28±2 dB |
| Polarization | RHCP |
| Noise Figure | <1.5 dB |
| Supply Voltage | 3-5 VDC |
| Current Consumption | <15 mA |
| Impedance | 50 Ω |
| Connector | SMA Male |
| Mechanical & Environmental | |
| Radome Material | ABS (UV Stable) |
| Ingress Protection | IP65 |
| Operating Temperature | -40°C to +85°C |
| Mounting Method | Screw Mount (M27 stud) |
| Dimensions | Ø 110 x 55 mm |
| Weight | <550g |
| Cable | 5x RG174, 3000 mm |
| RoHS Compliant | Yes |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
