ASRock

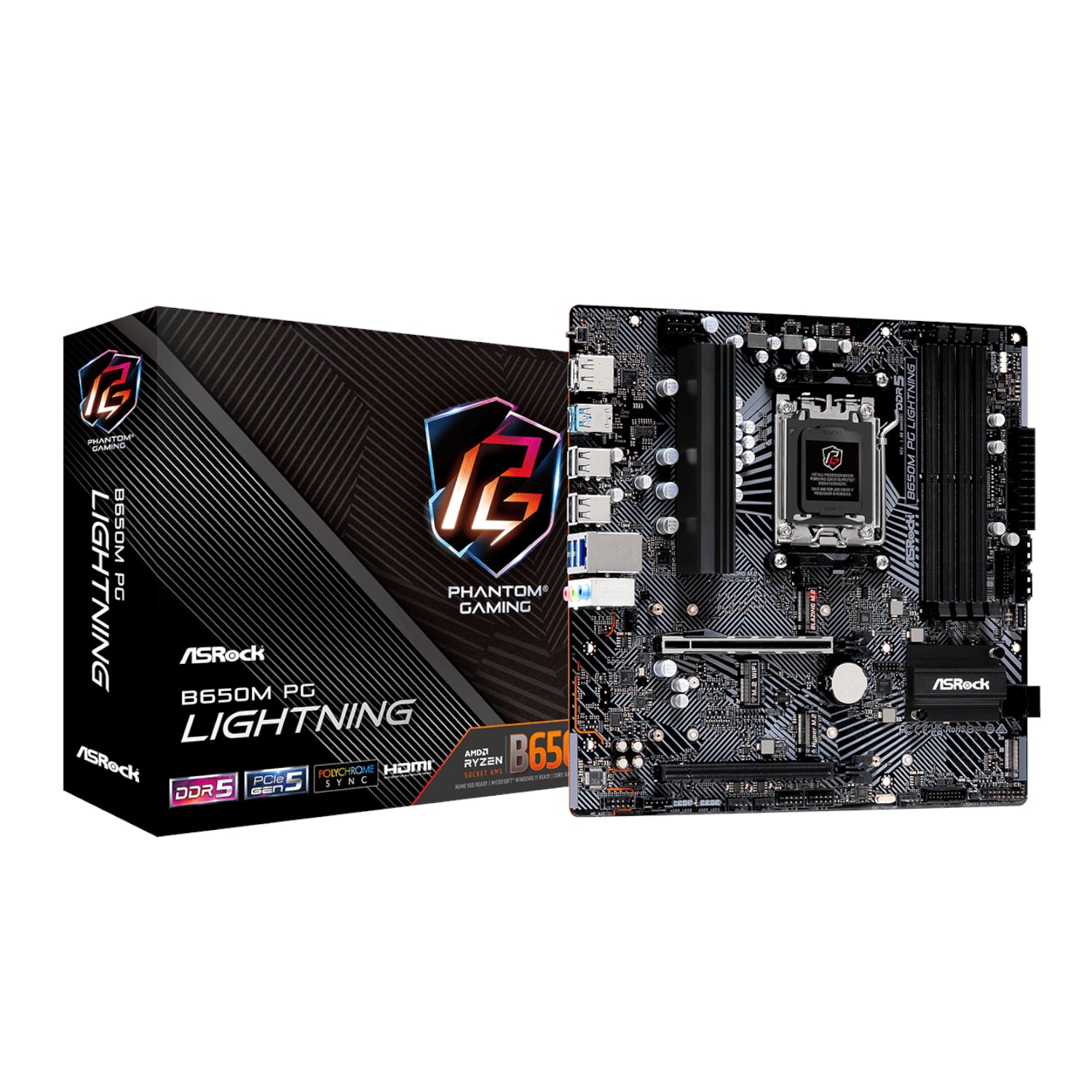

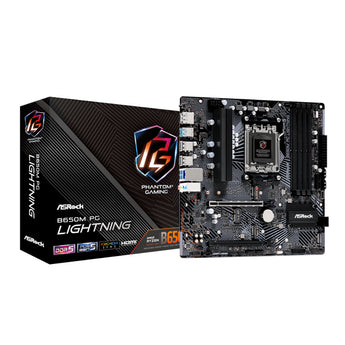

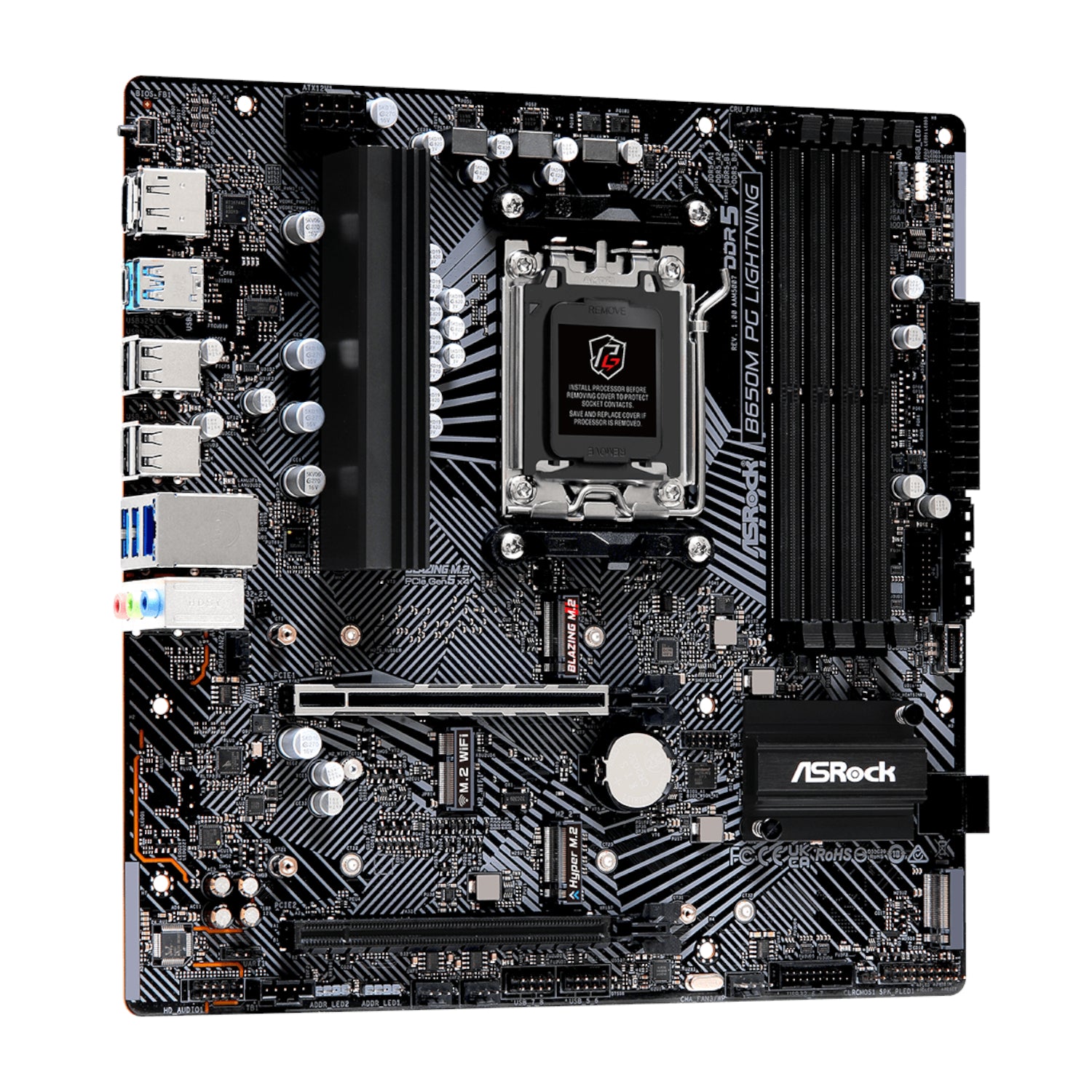

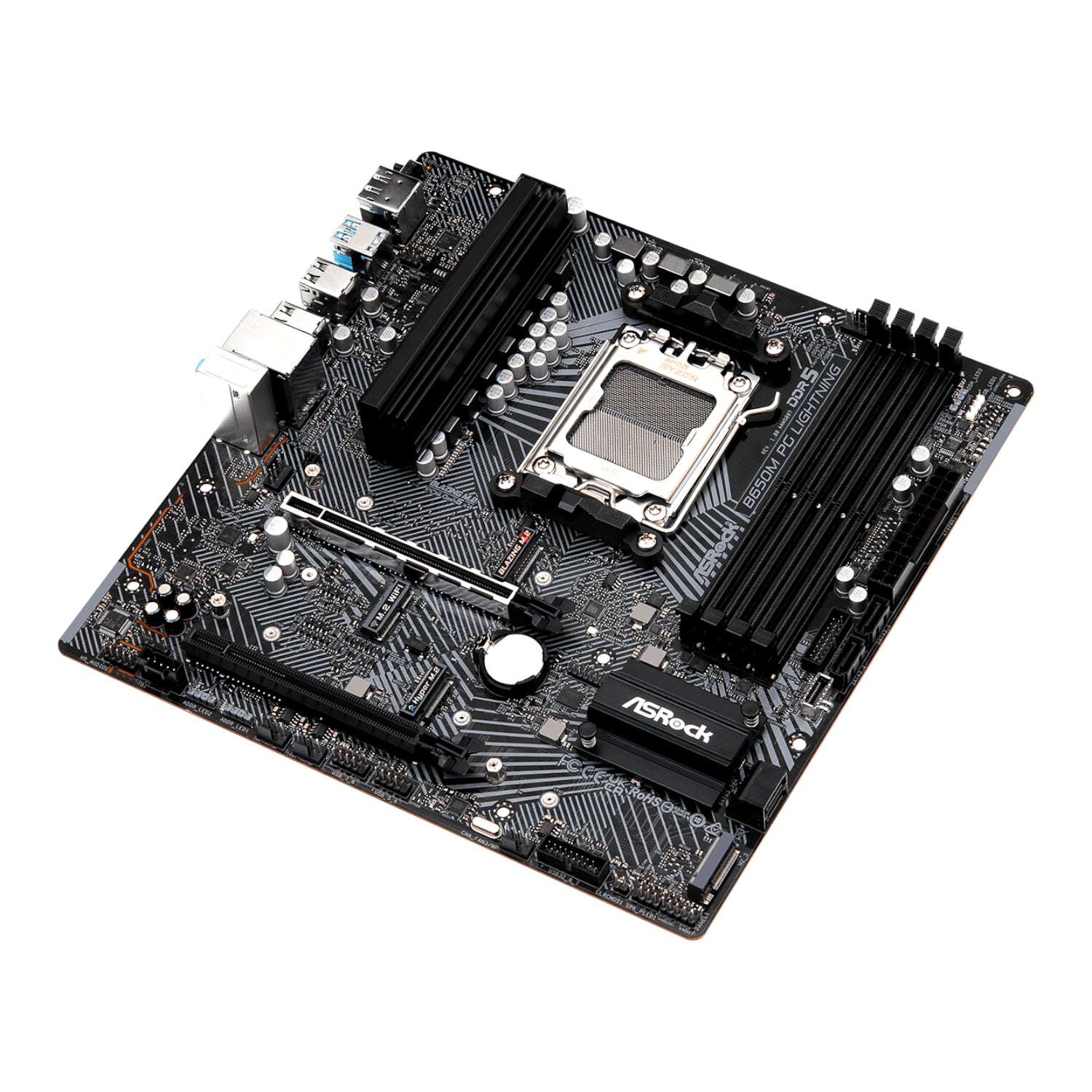

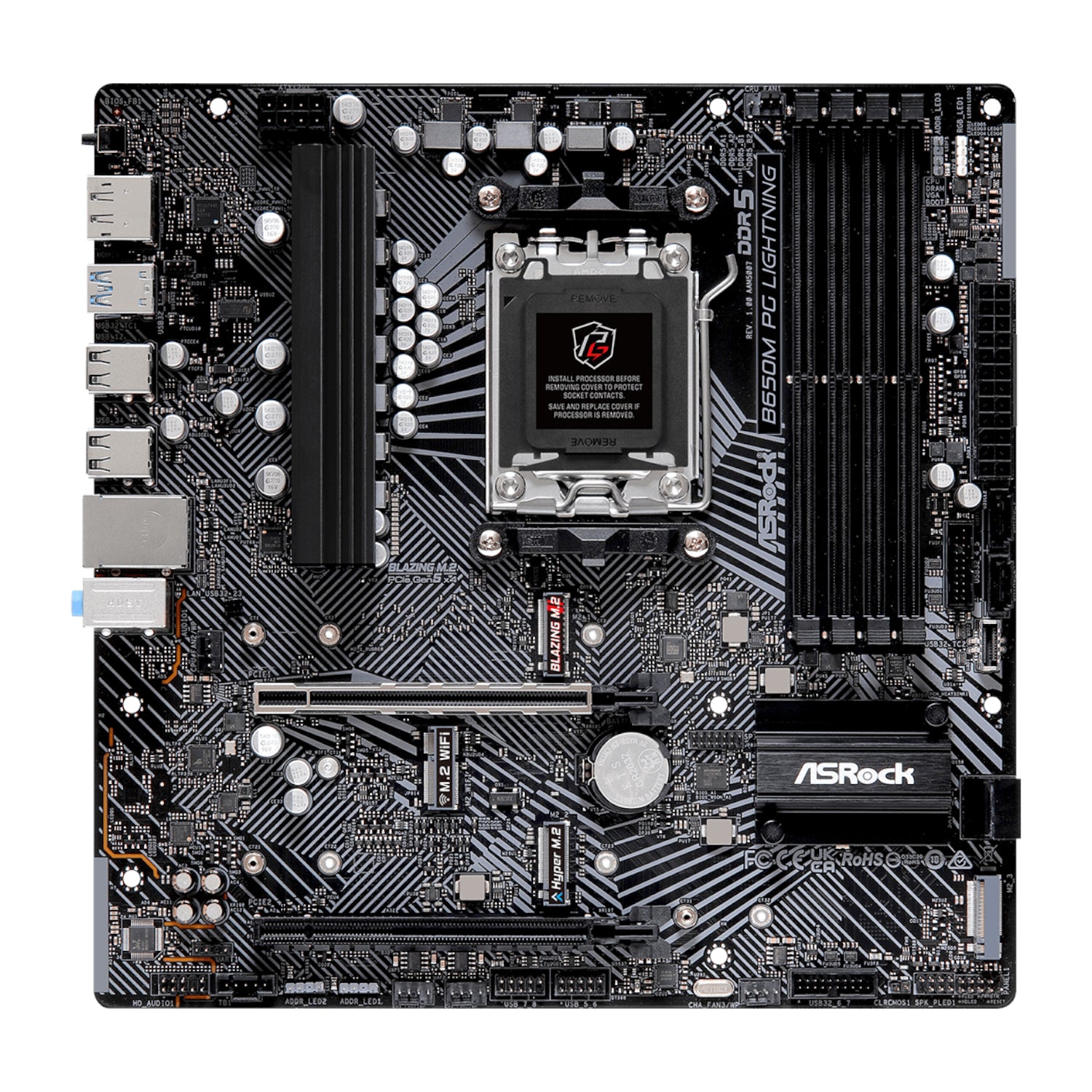

ASRock B650M PG Lightning AM5 Micro ATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Next-Gen Performance
Experience the future of gaming and content creation with the ASRock B650M PG Lightning motherboard. Engineered to support the latest AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors, this Micro ATX powerhouse delivers uncompromising performance in a compact form factor. Its robust 6+2+1 Phase Power Design featuring Dr.MOS technology ensures smooth and stable power delivery to the CPU, unlocking enhanced performance for the most demanding tasks and intense gaming sessions.
Blazing-Fast Speeds for Storage and Memory
Step into the new era of speed with a Blazing M.2 slot, utilizing the latest PCI Express 5.0 standard to achieve double the bandwidth of the previous generation. This motherboard is also equipped with two additional Hyper M.2 (PCIe Gen4x4) slots, providing ample high-speed storage options for your games and applications. Complementing this is support for up to 192GB of dual-channel DDR5 memory, with overclocking potential reaching an incredible 7200+ MHz (OC) for extreme responsiveness and multitasking capabilities.
Connectivity and Audio Perfected for Gamers
The Phantom Gaming 2.5G LAN port offers a massive boost in networking performance, providing faster, uncompromised connectivity for gaming, file transfers, and backups. For immersive sound, the 7.1 CH HD Audio with the Realtek ALC897 codec and Nahimic Audio software delivers a rich and detailed audio experience, giving you a competitive edge. The board also features a versatile array of USB ports, including rear USB 3.2 Gen2 Type-A and Type-C, to connect all your next-generation devices at up to 10 Gbps.
Durable, Reliable, and Ready to Build
Built on a 6-layer PCB for lower temperatures and higher energy efficiency, the B650M PG Lightning is designed for stability and longevity. Features like the BIOS Flashback button and ASRock's Auto Driver Installer simplify the setup and update process, making it an excellent choice for both seasoned builders and newcomers.
| Core Features | |
|---|---|
| CPU Support | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| Power Design | 6+2+1 Power Phase, Dr.MOS |
| Form Factor | Micro ATX |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max. Memory | 192GB |
| Memory Support | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) |
| Memory Profile | Supports AMD EXtended Profiles for Overclocking (EXPO™) & Intel® Extreme Memory Profile (XMP) |
| Storage | |
| M.2 Slots | 1 x Blazing M.2 Socket (PCIe Gen5x4) 1 x Hyper M.2 Socket (PCIe Gen4x4) 1 x M.2 Socket (PCIe Gen4x2) |
| SATA Ports | 4 x SATA3 6.0 Gb/s Connectors |
| RAID Support | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Expansion Slots | |
| PCIe x16 | 1 x PCIe 4.0 x16 Slot 1 x PCIe 3.0 x16 Slot |
| WiFi/BT | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Networking & Audio | |
| Ethernet | 2.5 Gigabit LAN (Phantom Gaming 2.5G LAN) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio |
| I/O Ports | |

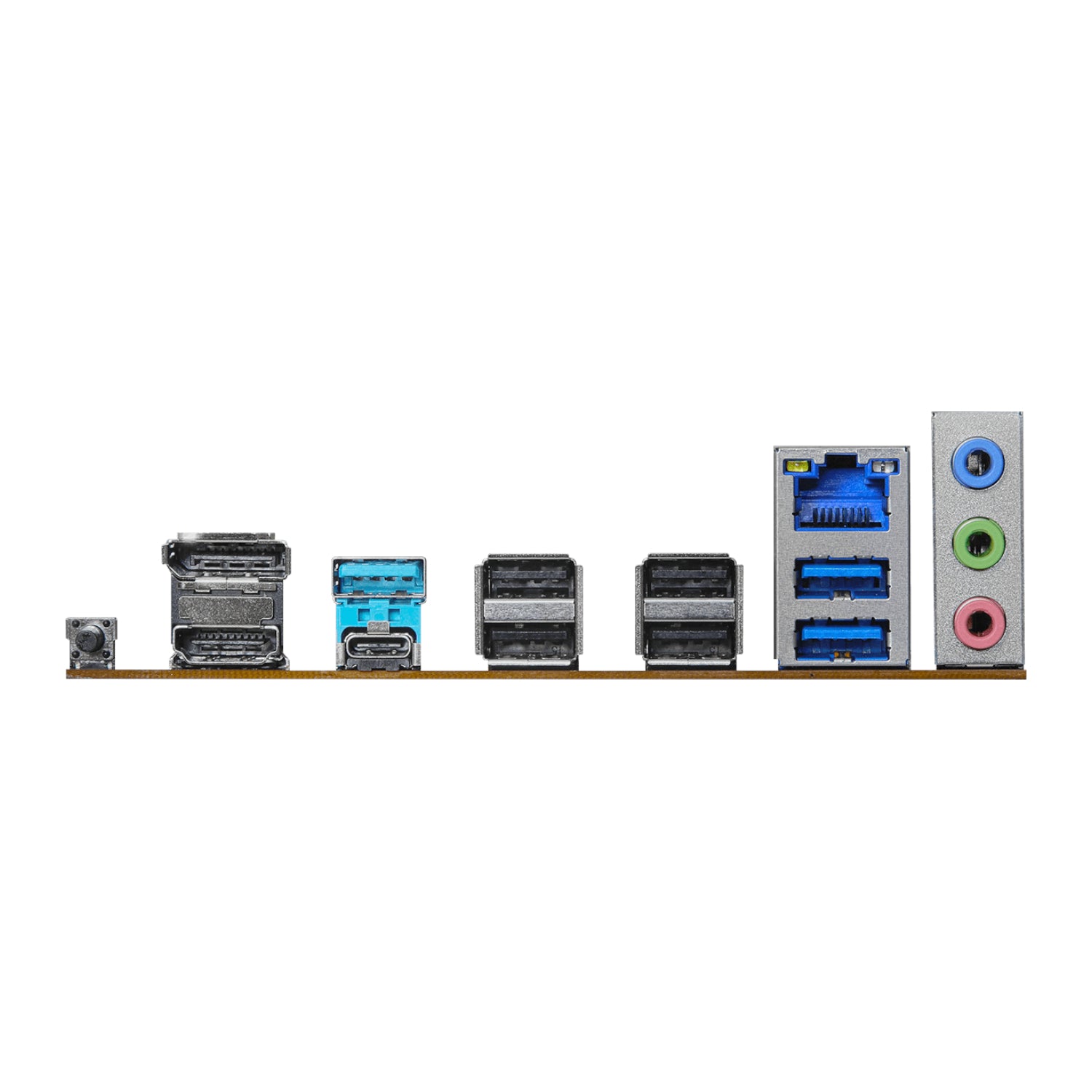

| Rear I/O | 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 1 x RJ-45 LAN Port, HD Audio Jacks, BIOS Flashback Button |
| Internal I/O | 1 x Front Panel Type C USB 3.2 Gen1 Header, 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x SPI TPM Header, 3 x Addressable LED Headers, 1 x RGB LED Header |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
