ASRock
ASRock B650 Pro RS WiFi AM5 ATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
Unlock Next-Gen Performance
Engineered for enthusiasts and gamers, the ASRock B650 Pro RS WiFi is a masterfully designed ATX motherboard that forms the perfect foundation for AMD's latest Ryzen™ 9000, 8000, and 7000 series processors. Experience a new era of speed and efficiency with support for DDR5 memory, reaching overclocking speeds of up to 7200+ MHz. Its robust 14+2+1 Phase Power Design with SPS ensures stable and reliable power delivery for even the most demanding CPUs, providing a rock-solid computing experience.
Blazing-Fast Connectivity and Storage
Step into the future with cutting-edge storage solutions. This motherboard is equipped with a Blazing M.2 slot that supports the latest PCI Express 5.0 standard, delivering breathtaking transfer speeds of up to 128GB/s for your next-gen SSDs. In addition, it offers a Hyper M.2 (PCIe Gen4x4) slot and another M.2 slot for extensive storage flexibility. For networking, the B650 Pro RS WiFi features Dragon 2.5G LAN for high-speed wired connections and the latest 802.11ax Wi-Fi 6E for a fast, uncompromised wireless experience.
Comprehensive Features and Durability
The ASRock B650 Pro RS WiFi is built to last with a 6-layer PCB design that provides stable signal traces and power shapes for lower temperatures and higher energy efficiency. It also features a flexible integrated I/O shield for easy installation. For immersive audio, it comes with a 7.1 CH HD Audio Codec (Realtek ALC897) and Nahimic Audio. The board also includes a BIOS Flashback button for easy updates and an ASRock Post Status Checker for simplified troubleshooting.
| Processor | |
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | |
| Chipset | AMD B650 |
| Memory | |
| Memory Slots | 4 x DDR5 DIMM Slots |
| Max Memory | Up to 192GB |
| Memory Support | Dual Channel DDR5, up to 7200+ (OC) |
| Expansion Slots | |
| PCIe 4.0 x16 | 1 |
| PCIe 3.0 x16 | 1 |
| PCIe 4.0 x1 | 1 |
| Storage | |
| M.2 Slots | 1 x Blazing M.2 (PCIe Gen5x4), 1 x Hyper M.2 (PCIe Gen4x4), 1 x M.2 (PCIe Gen3x2 & SATA3) |
| SATA 6Gb/s | 4 |
| RAID Support | Supports RAID 0 and RAID 1 for SATA storage devices |
| Networking | |
| LAN | Dragon 2.5G LAN |
| Wireless | 802.11ax Wi-Fi 6E + Bluetooth |
| Audio | |
| Audio Codec | Realtek ALC897 7.1 CH HD Audio Codec |
| Audio Features | Nahimic Audio |
| Rear Panel I/O | |

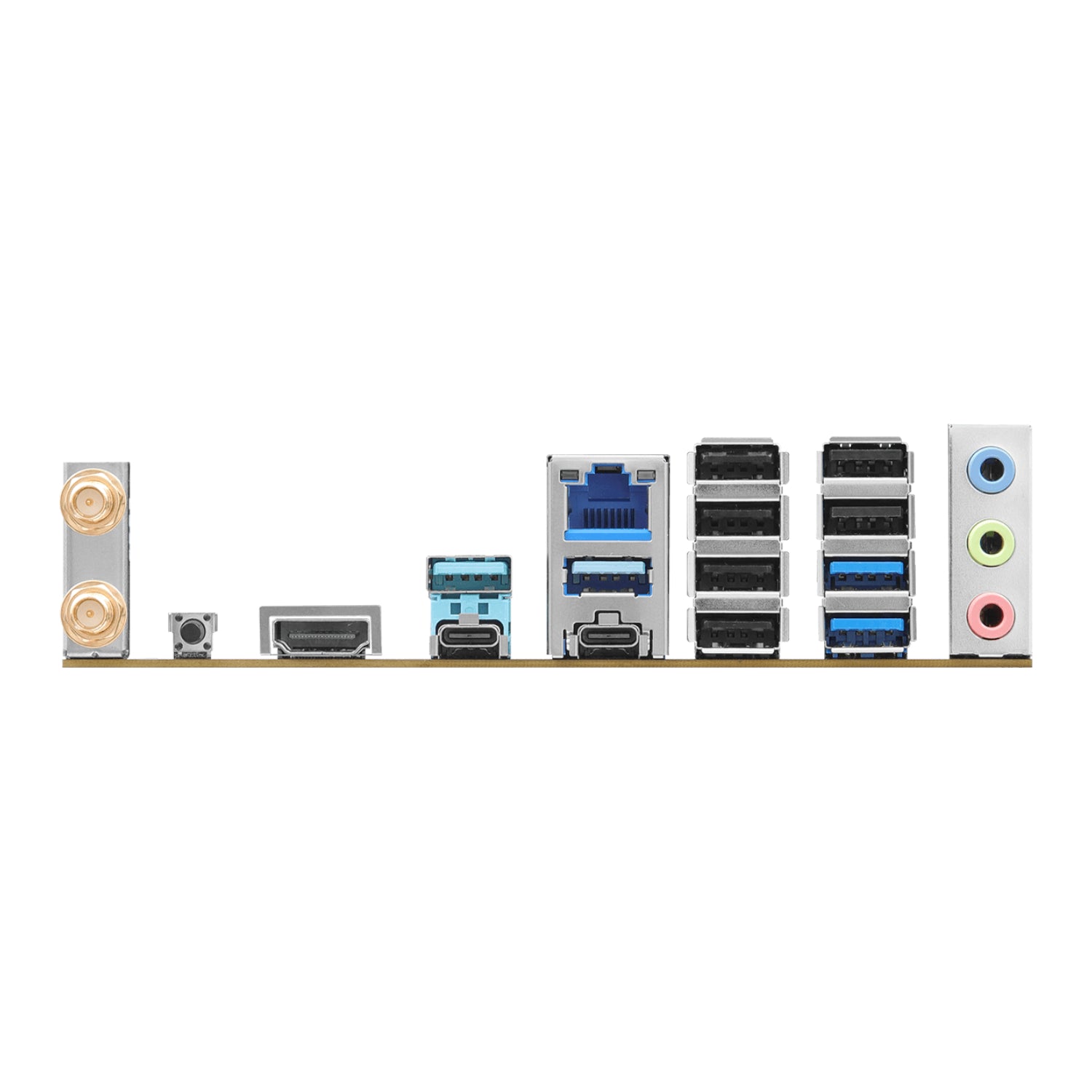

| Ports | 2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1, 6 x USB 2.0, 1 x RJ-45 LAN Port, HD Audio Jacks, 1 x BIOS Flashback Button |
| Internal I/O | |
| USB | 1 x Front Panel Type C USB 3.2 Gen2x2 Header, 1 x USB 3.2 Gen1 Header (Supports 2 ports), 2 x USB 2.0 Headers (Support 3 ports) |
| Physical Specs | |
| Form Factor | ATX |
| Dimensions | 12.0" x 9.6" |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
