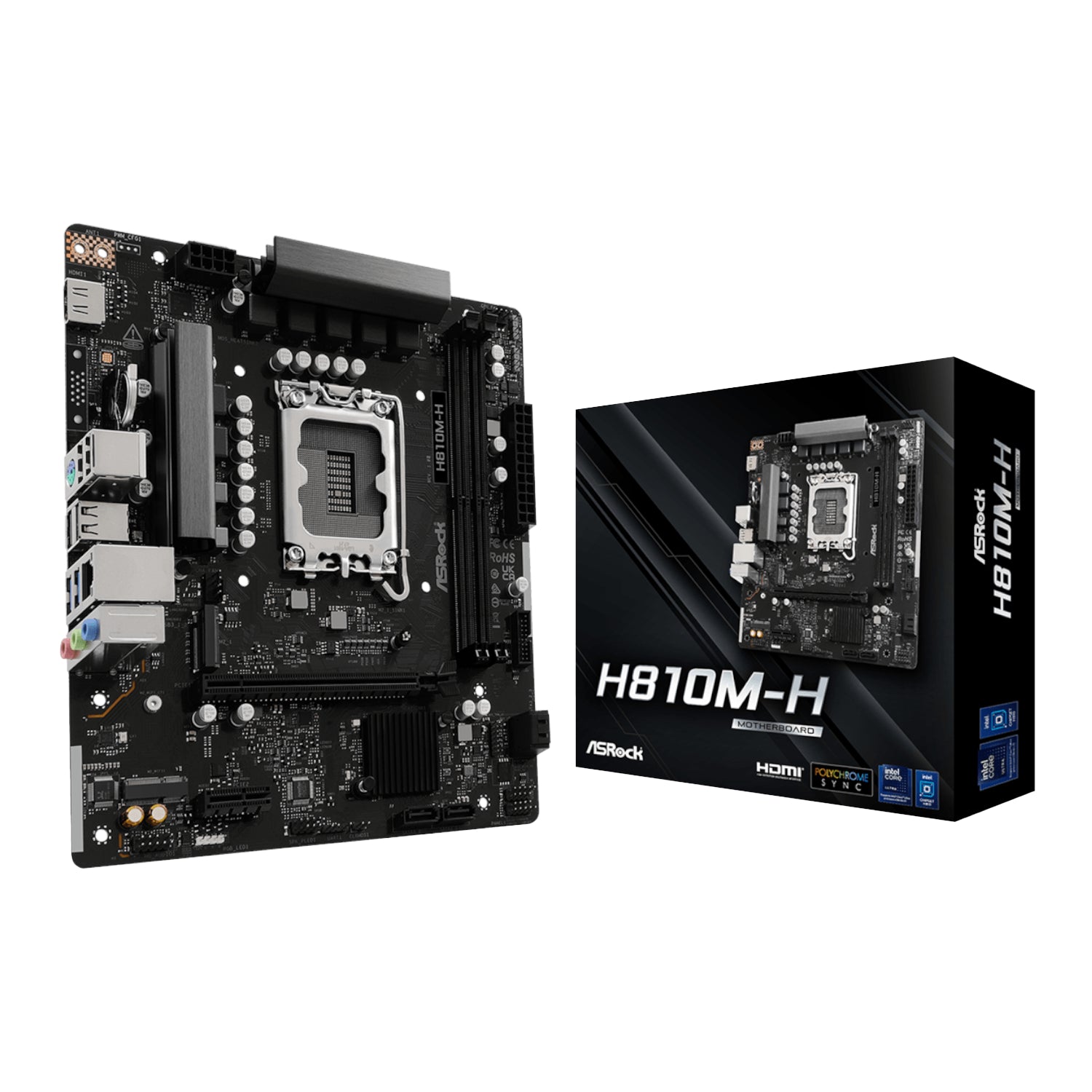

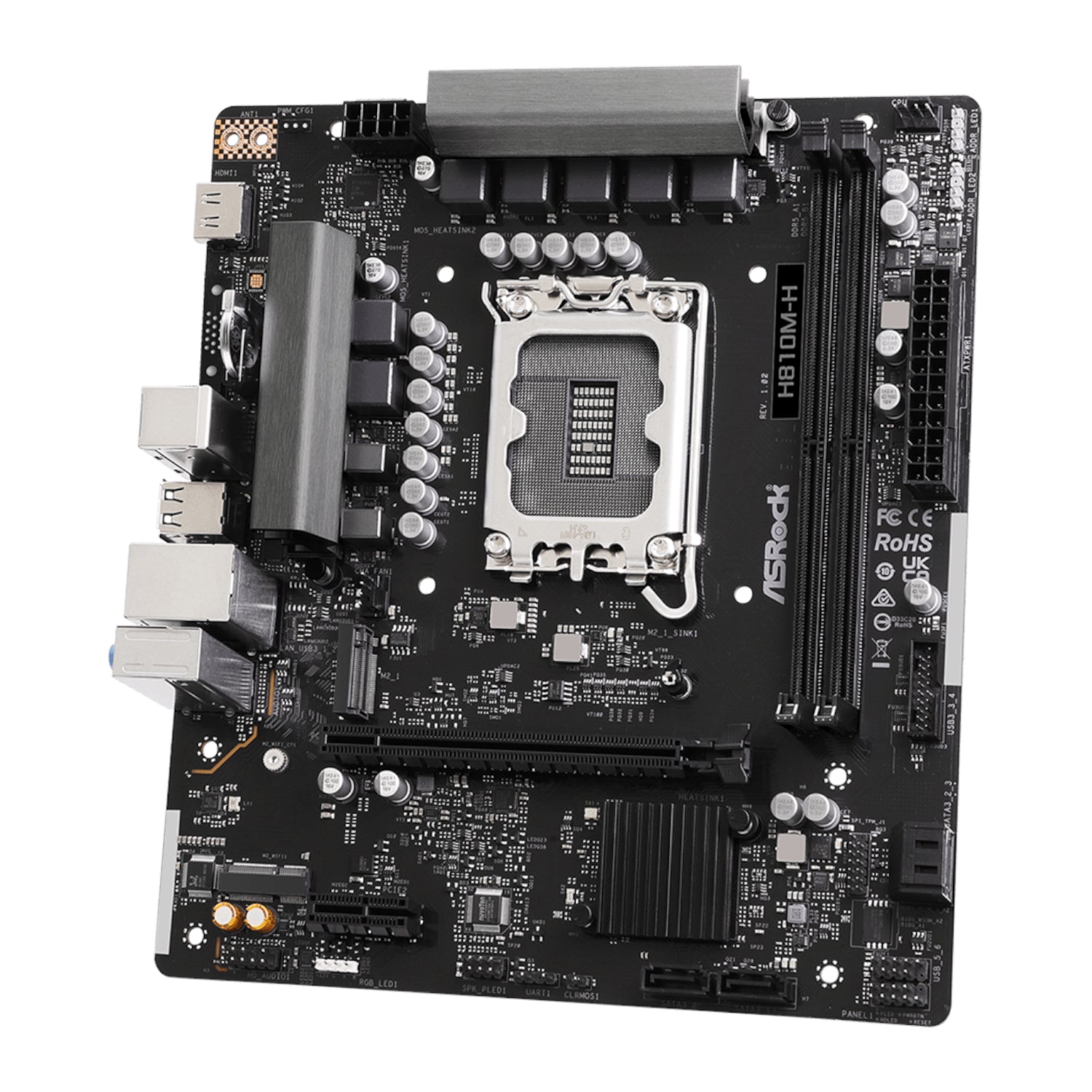

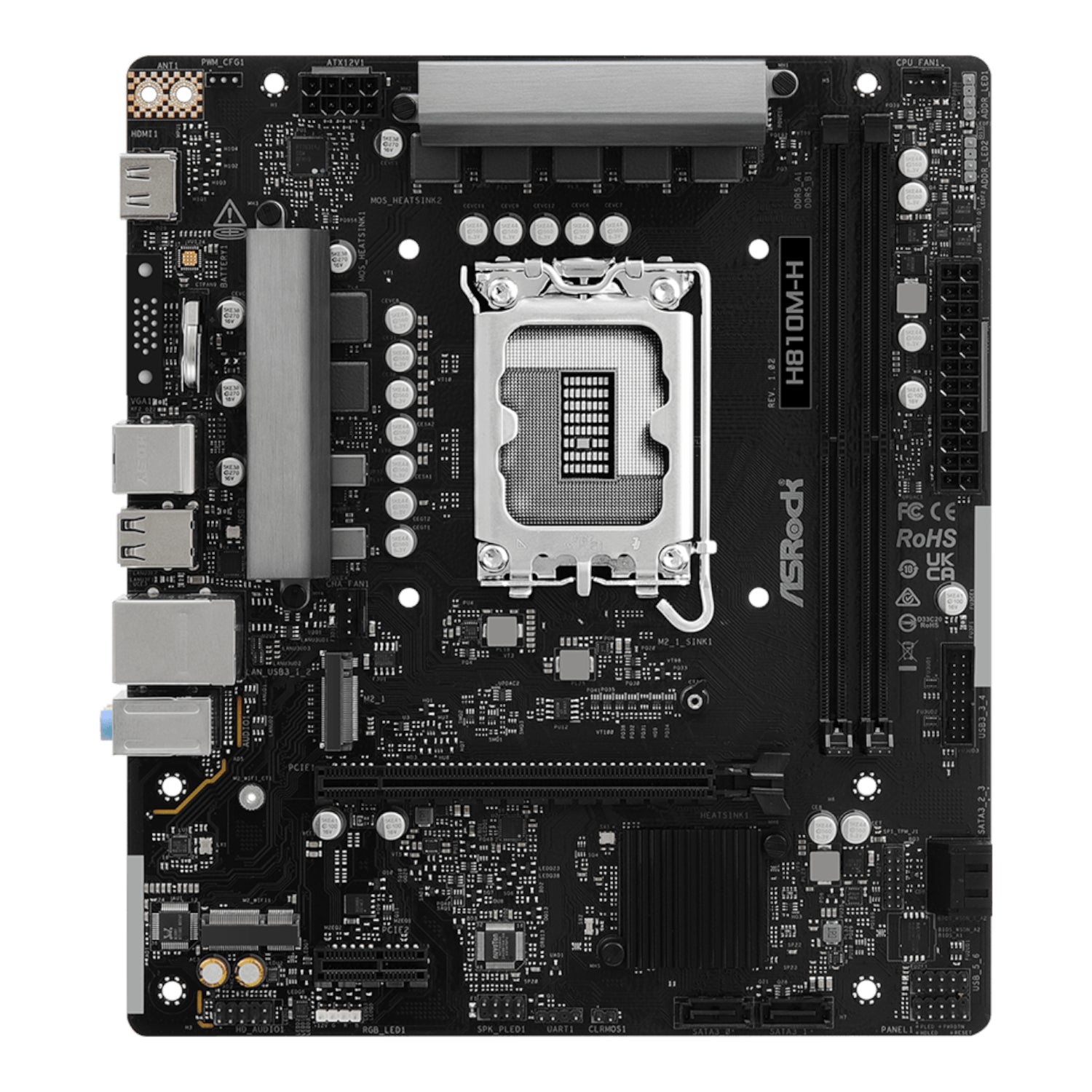

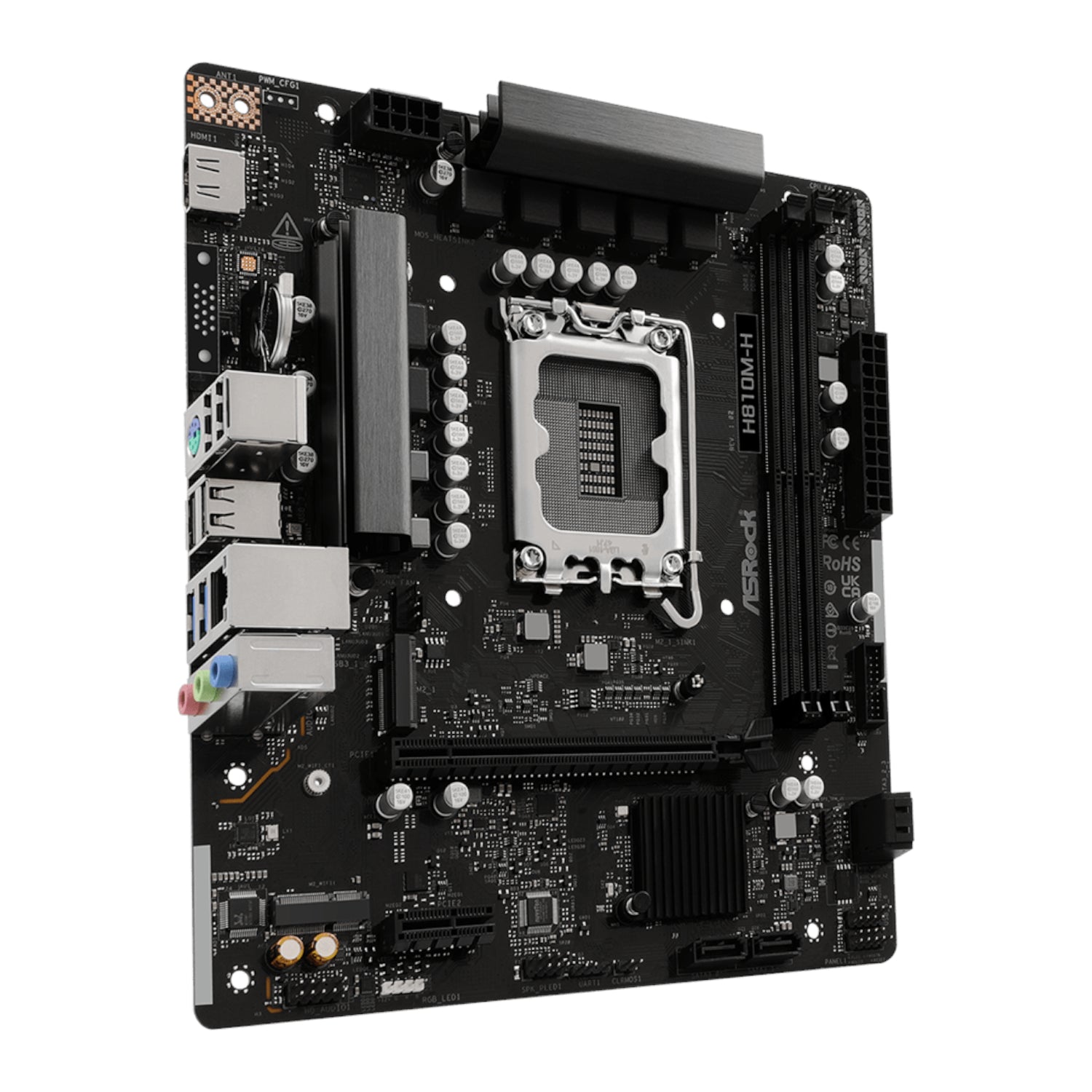

ASRock H810M-H LGA1851 Micro ATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
Your Essential Foundation for Next-Gen Intel Power
Build a modern, capable, and cost-effective system with the ASRock H810M-H motherboard. Designed specifically for the latest Intel® Core™ Ultra Series 2 processors with the LGA1851 socket, this Micro ATX board is the perfect starting point for compact builds without sacrificing performance. It leverages the power of the Intel H810 chipset to bring you next-generation features like Dual Channel DDR5 memory support and a high-speed Hyper M.2 slot, ensuring your PC is ready for the latest applications and games.
Core Features
- Intel® LGA1851 Socket: Ready for Intel® Core™ Ultra Series 2 processors, providing a direct path to the latest CPU architecture for top-tier performance in gaming and content creation.
- Stable Power Delivery: Featuring a 6+1+1+1+1 power phase design, the H810M-H ensures a stable and reliable power supply to the CPU for consistent performance under load.
- Next-Gen DDR5 Memory: Experience a significant boost in speed and efficiency with Dual Channel DDR5 memory technology, supporting frequencies up to 6400MHz for superior system responsiveness.
- High-Speed Storage: Includes a Hyper M.2 socket that supports PCIe Gen4x4 SSDs for lightning-fast data transfer speeds, drastically reducing load times. Also equipped with four SATA3 6.0 Gb/s ports for traditional hard drives and SSDs.
- Essential Connectivity: Comes equipped with a reliable Realtek Gigabit LAN port, USB 3.2 Gen1 ports for fast peripheral connections, and 7.1 CH HD Audio powered by the Realtek ALC897 codec for an immersive sound experience.
Comprehensive Specifications Table
| Feature | Specification |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) for LGA1851 Socket |
| Chipset | Intel® H810 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400MHz - Max. capacity of system memory: Up to 128GB |
| Graphics | - Intel® Xe LPG Graphics Architecture (Requires processor with integrated graphics) - 1 x HDMI 2.1 Port |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek) |
| Expansion Slots |
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x1 Slot - 1 x M.2 Socket (Key E), for WiFi/BT module |
| Storage |
Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
| USB | - 4 x USB 3.2 Gen1 (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) |
| Internal I/O | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector - 1 x Chassis/Water Pump Fan Connector - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |

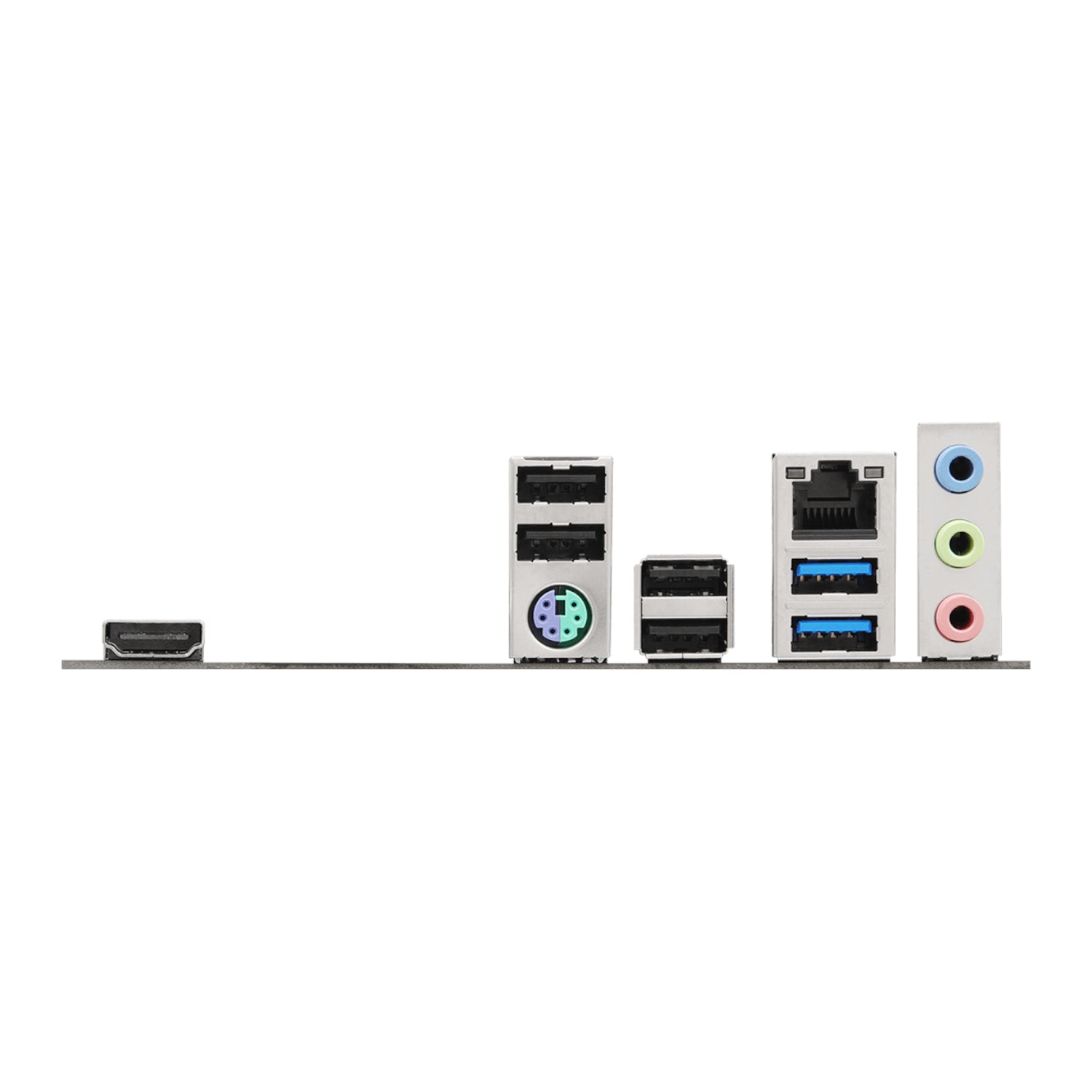

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | Microsoft Windows® 11 64-bit |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
