ASUS

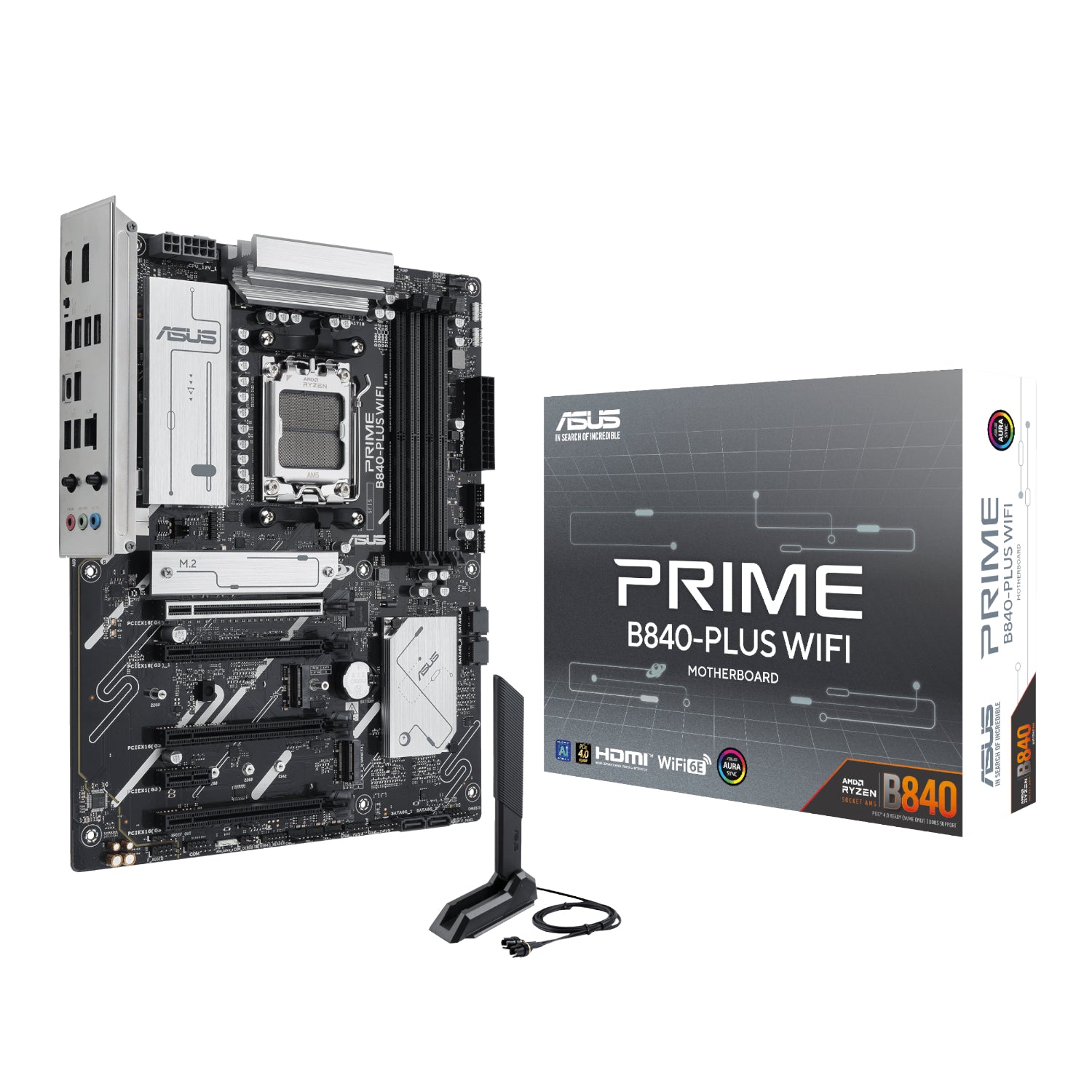

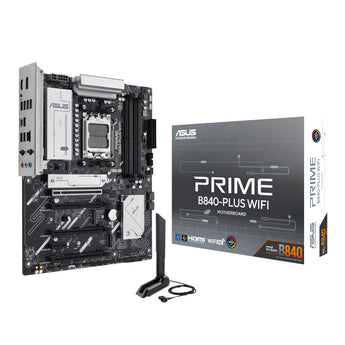

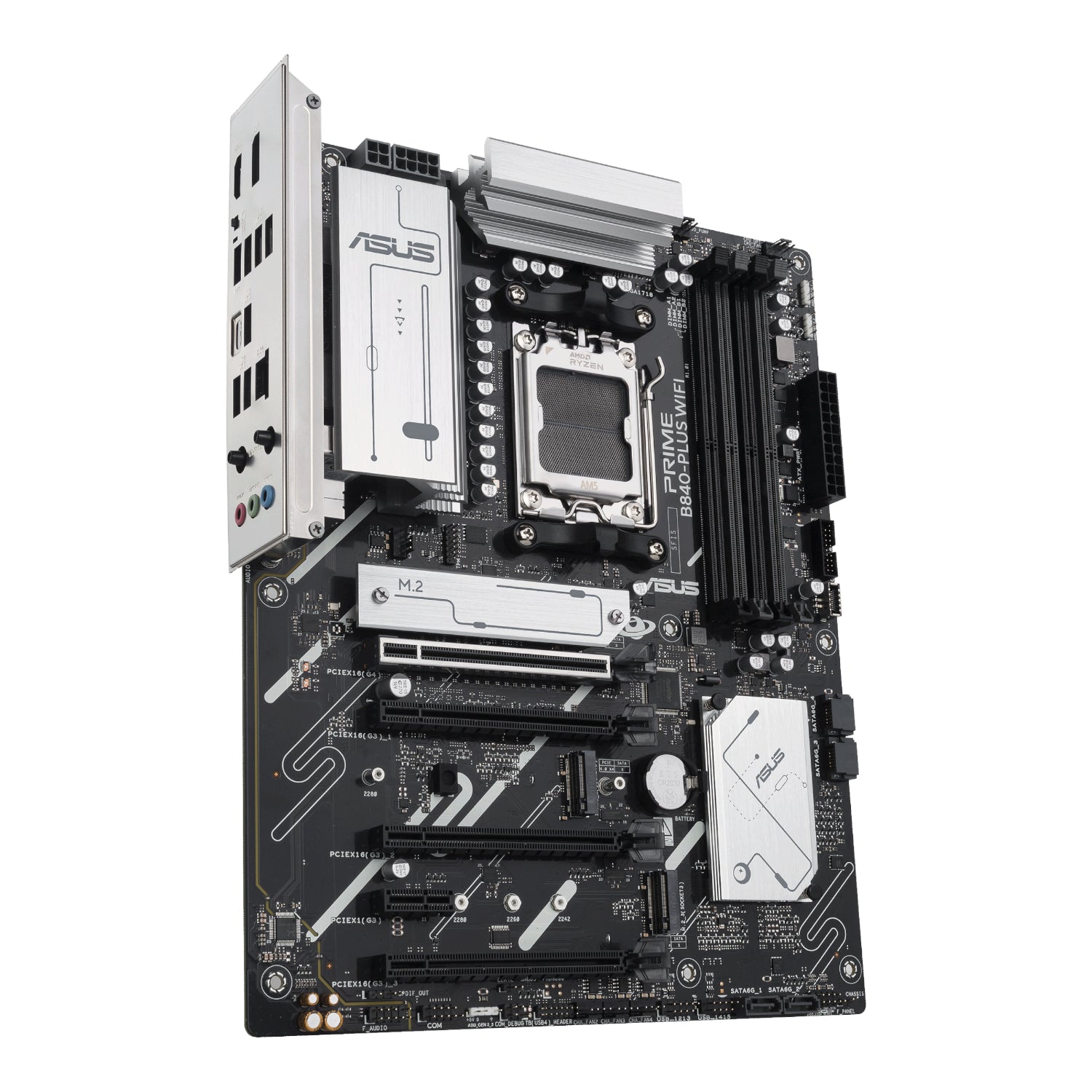

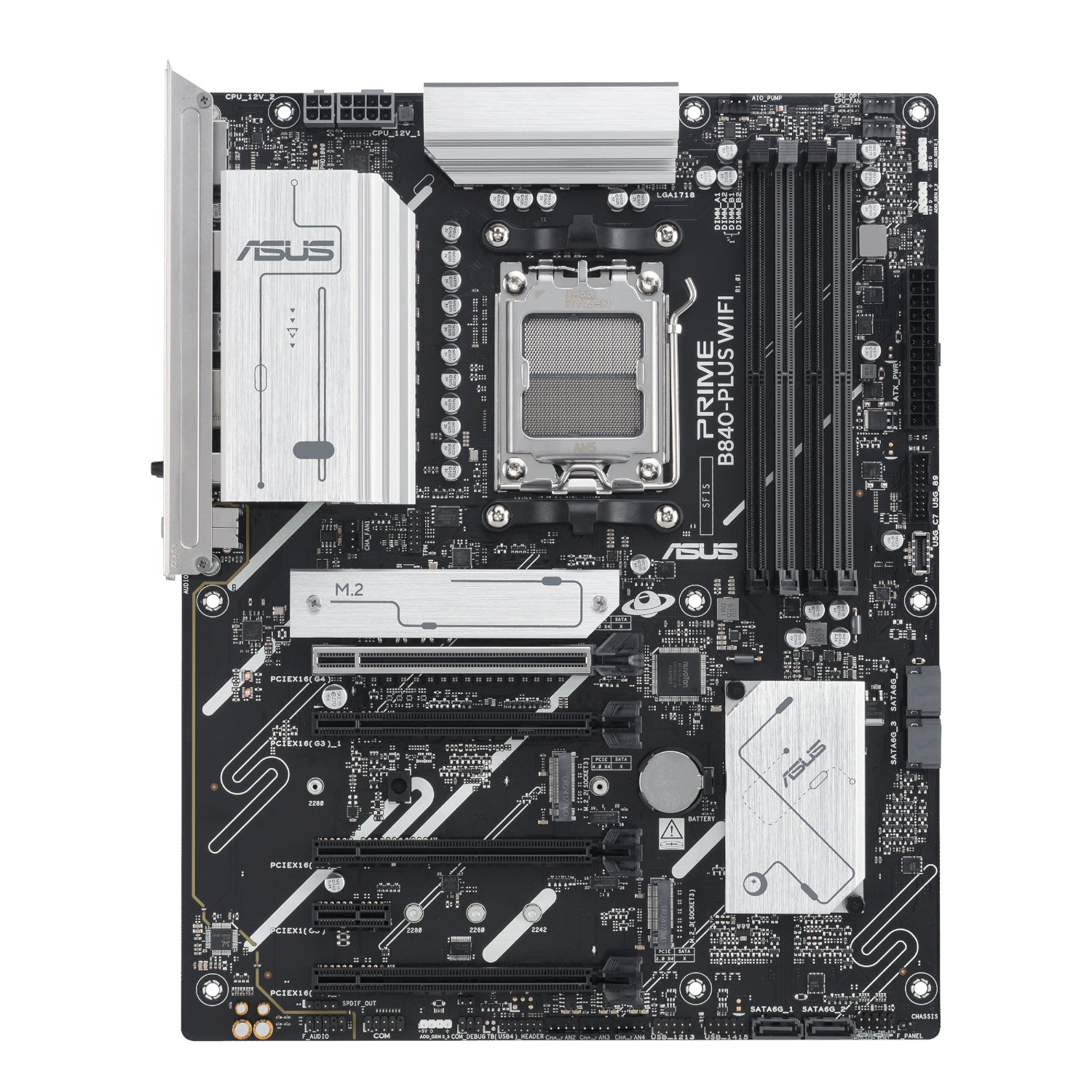

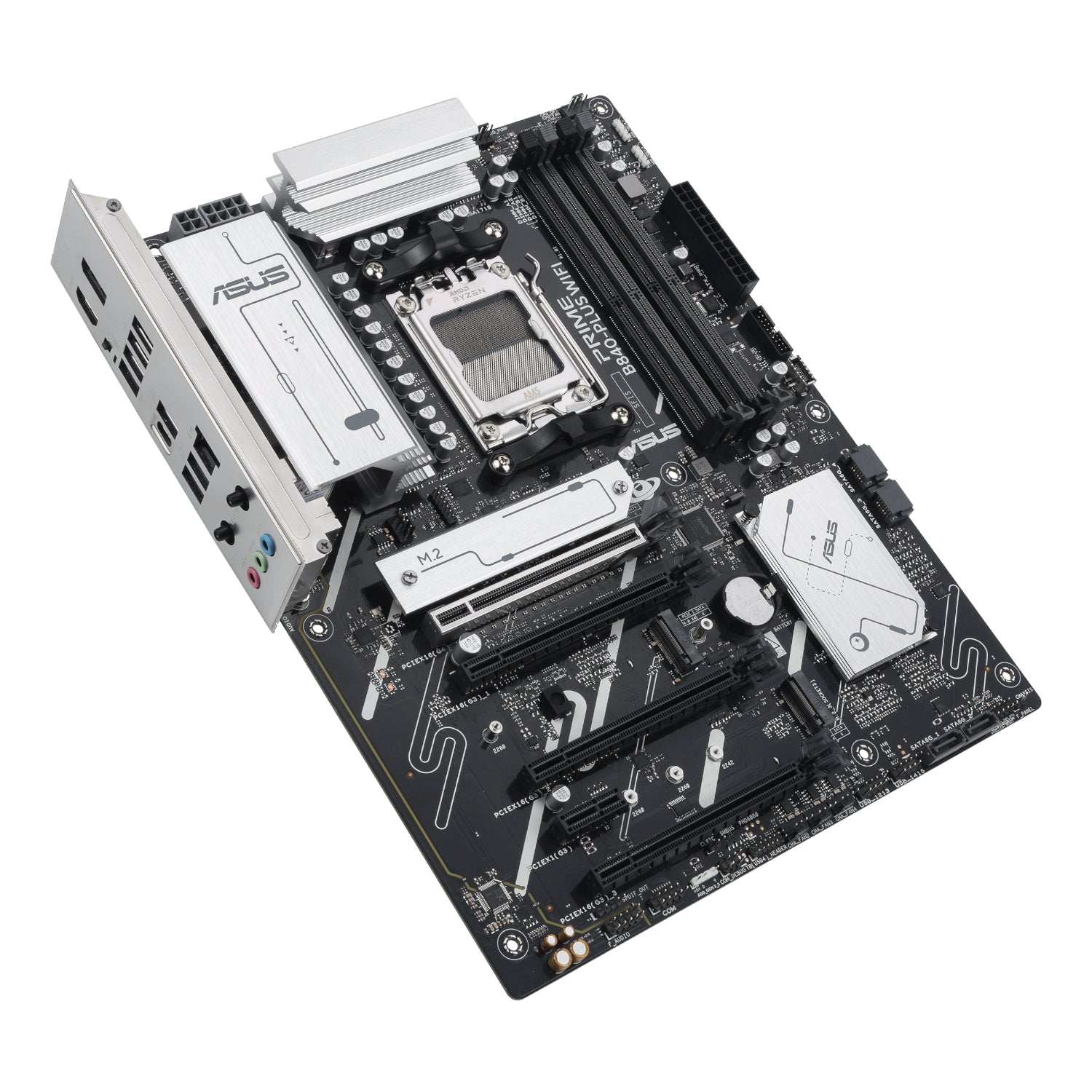

ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.
The PRIME B840-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads. PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
This motherboard offers a versatile range of connectivity, including support for Wi-Fi 6E, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connections. Built-in Wi-Fi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6GHz band, Wi-Fi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps.
The PRIME B840-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
FEATURES:
| ATX Form Factor | |
| AMD B840 Chipset | |
| Supports AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors | |
| Support for DDR5 up to 7600+MT/s, AEMP supported | |
| PCIe 4.0 support for graphics cards | |
| Wi-Fi 6E and 2.5Gb Ethernet support for faster data transfer | |
| Aura Sync RGB Lighting |
SPECIFICATIONS:
| Socket | AM5 |
| CPU | Supports AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B840 Chipset |
| DDR5 Memory | Support DDR5 up to 7600+MT/s (OC) Non-ECC, Un-buffered Memory, ASUS Enhanced Memory Profile (AEMP) |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 256 |
| PCI-E 4.0 x16 | 1 |
| PCI-E 3.0 x16 | 2 |
| PCI-E 3.0 x1 | 1 |
| SATA 6G | 4 |
| M.2 Slot | 3 |
| LAN | Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless and Bluetooth | Wi-Fi 6E, Bluetooth v5.3 |

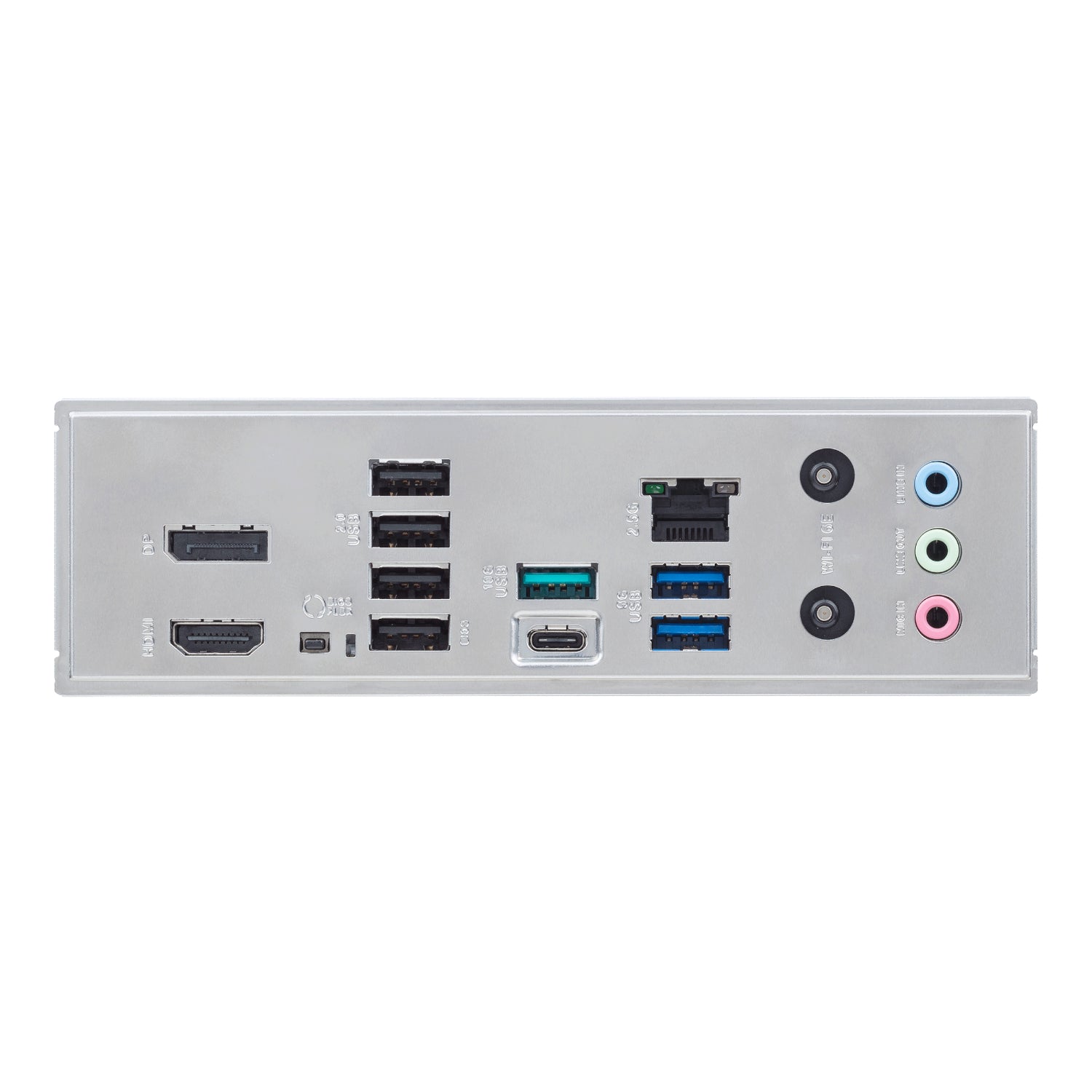

| USB Ports Rear | 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A) |
| 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®) | |
| 2 x USB 5Gbps ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| USB Ports Front | 1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports(USB Type-C® power delivery output: max. 5V/3A) |
| 1 x USB 5Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| (USB Type-C® power delivery output | max. 5V/3A) |
| Audio ports (Rear) | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| HDMI | 1 |
| DisplayPort | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| Operating System | Support for Windows® 11, Windows® 10 64-bit |
WHAT’S IN THE BOX:
- Asus PRIME B840-PLUS WIFI AMD AM5 ATX Gaming Motherboard – Black x1
- SATA Cables x2
- Asus Wi-Fi Q-Antenna
- M.2 Rubber Packages x1
- Screw Packages for M.2 SSD x1
- Quick Start Guide x1
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
