ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
Dominate Your Workflow with the Ultimate Workstation Motherboard
Engineered for the pinnacle of performance, the ASUS Pro WS TRX50-SAGE WIFI motherboard is a powerhouse designed for content creators, developers, and AI professionals. It provides the elite speed, extensive compatibility, and trusted stability required to handle the most demanding computational tasks. Harness the full potential of AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors to accelerate your creative genius and machine learning applications.
Unmatched Performance and Overclocking
At its core, the Pro WS TRX50-SAGE WIFI features a robust 36-stage power design, ready to fuel AMD's most powerful processors with up to 96 cores. This motherboard is not just about raw power; it's about refined control. With CPU and memory overclocking capabilities, you can push your system to its limits. It supports up to 1TB of ECC R-DIMM DDR5 memory, ensuring both massive capacity and data integrity for large-scale projects. The massive VRM, chipset, and M.2 heatsinks ensure your system remains cool and stable, even under extreme loads.
Next-Generation Connectivity
Experience blazing-fast data transfers and networking speeds. The motherboard is equipped with three PCIe® 5.0 x16 slots, providing ample bandwidth for multi-GPU setups essential for AI training and complex rendering. For storage, it boasts three M.2 slots, two of which are PCIe 5.0, perfect for RAID configurations to achieve massive I/O bandwidth. Networking is state-of-the-art with Wi-Fi 7 for ultra-fast wireless speeds, a Marvell® AQtion 10Gb Ethernet port, and an Intel® 2.5Gb Ethernet port for versatile and reliable connectivity.
Built for Professionals
This motherboard is designed for 24/7 operation, validated for extensive compatibility with the latest technologies. It also features server-grade IPMI remote management through an ASUS IPMI expansion card, allowing for comprehensive monitoring and management of your workstation. With a rich array of USB ports, including a 20Gbps USB Type-C® on both the front and rear panels, you have all the connections you need for your peripherals.
| Technical Specifications | |
|---|---|
| CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors |
| Chipset | AMD TRX50 Chipset |
| Memory | 4 x DIMM slots, max. 1TB, DDR5, ECC Registered Memory, Quad Channel Memory Architecture |
| Expansion Slots | 3 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x16 slot |
| Storage | 3 x M.2 slots (2x PCIe 5.0 x4, 1x PCIe 4.0 x4), 4 x SATA 6Gb/s ports, 2 x SlimSAS ports (support PCIe 4.0 x4 NVMe) |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2, supports 2.4/5/6GHz frequency band, Bluetooth® v5.4 |

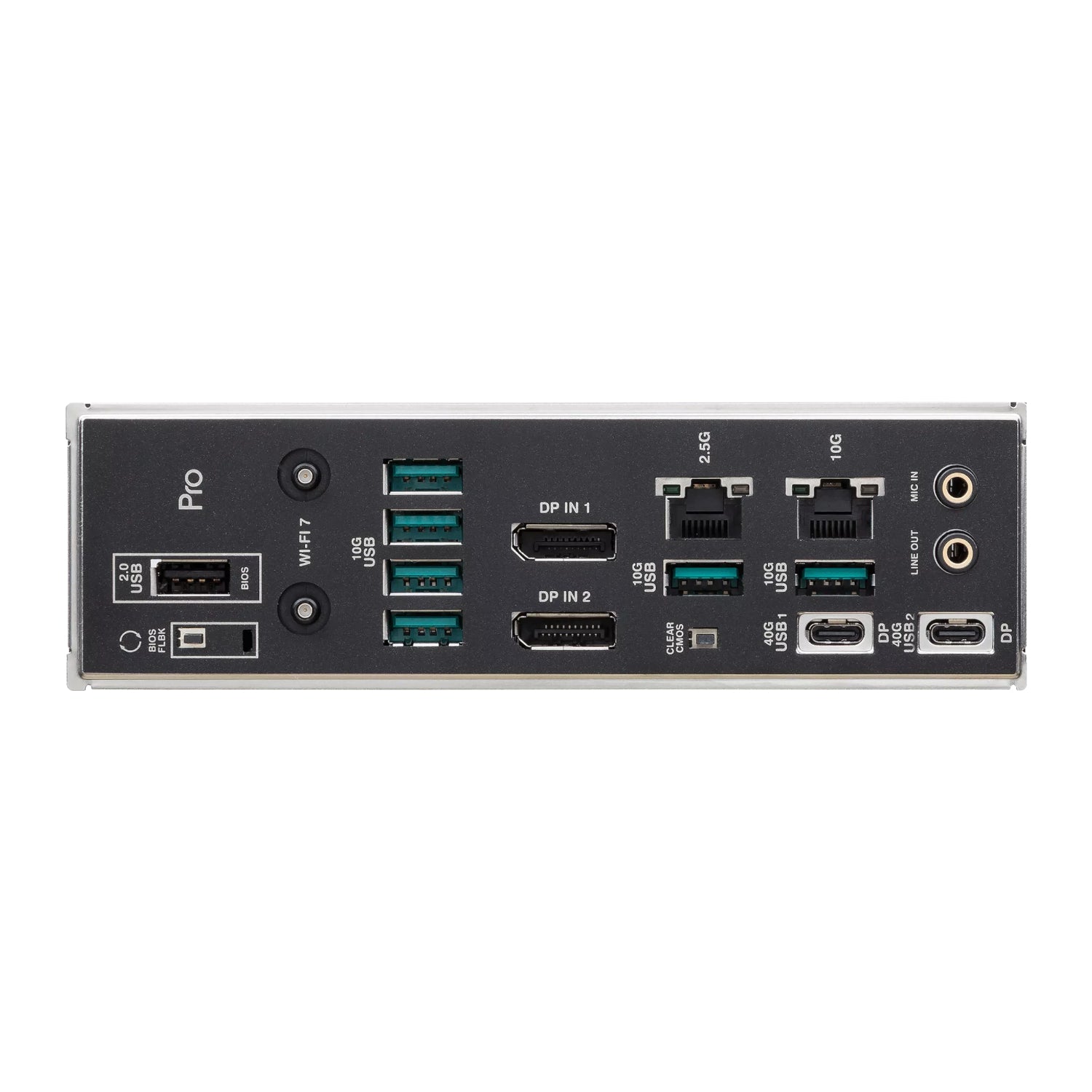

| Rear Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C®), 6 x USB 10Gbps ports (6 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort (input only), 1 x Marvell® AQtion 10Gb Ethernet port, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port, 1 x ASUS Wi-Fi Q-Antenna |
| Internal I/O Connectors | 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header (supports 2 additional USB 5G ports), 2 x USB 2.0 headers (support 4 additional USB 2.0 ports), 3 x M.2 slots, 4 x SATA 6Gb/s ports, 2 x SlimSAS ports |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC (Supports up to 5.1 Surround Sound) |
| Form Factor | CEB Form Factor, 12 inch x 10.5 inch (30.5 cm x 26.7 cm) |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
