ASUS

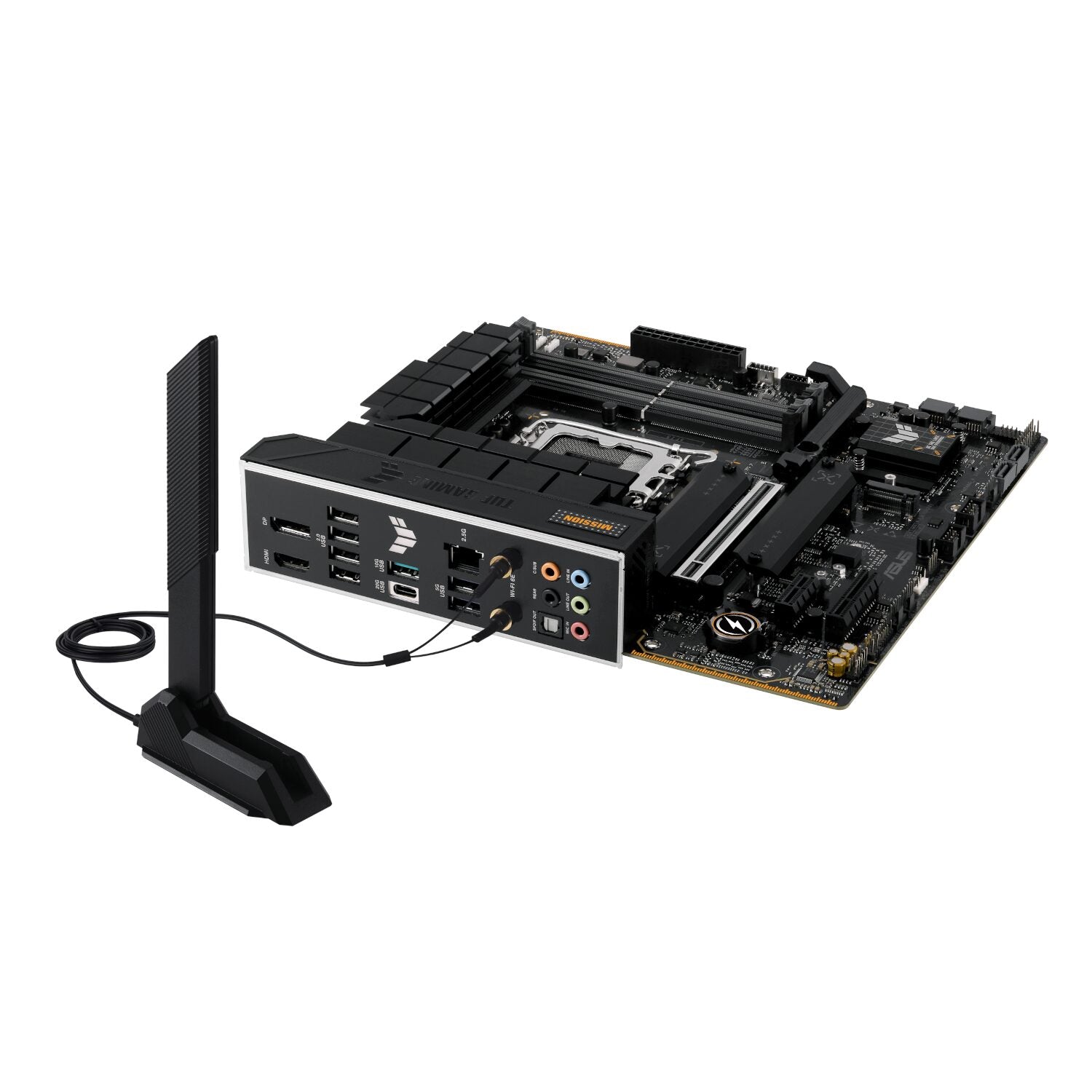

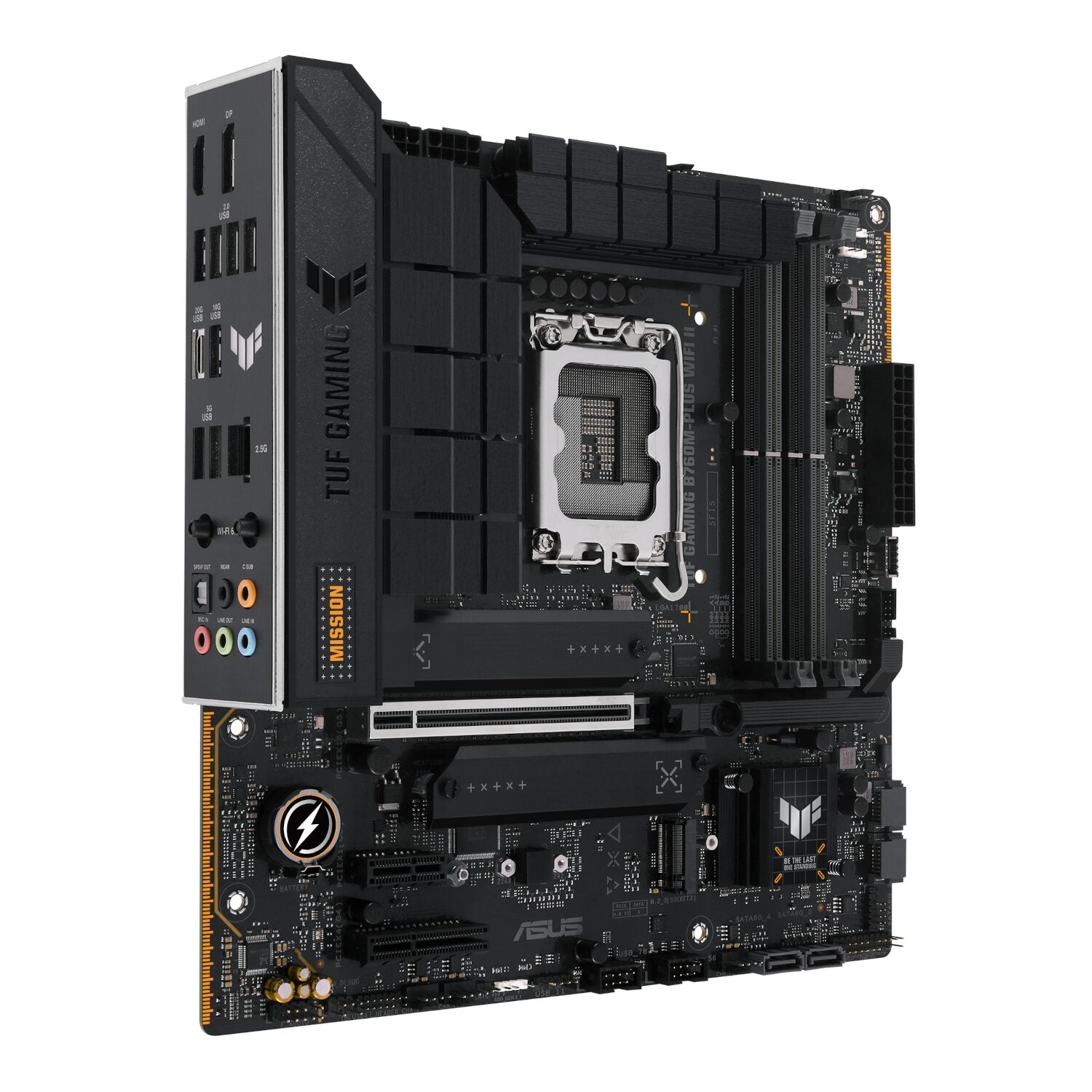

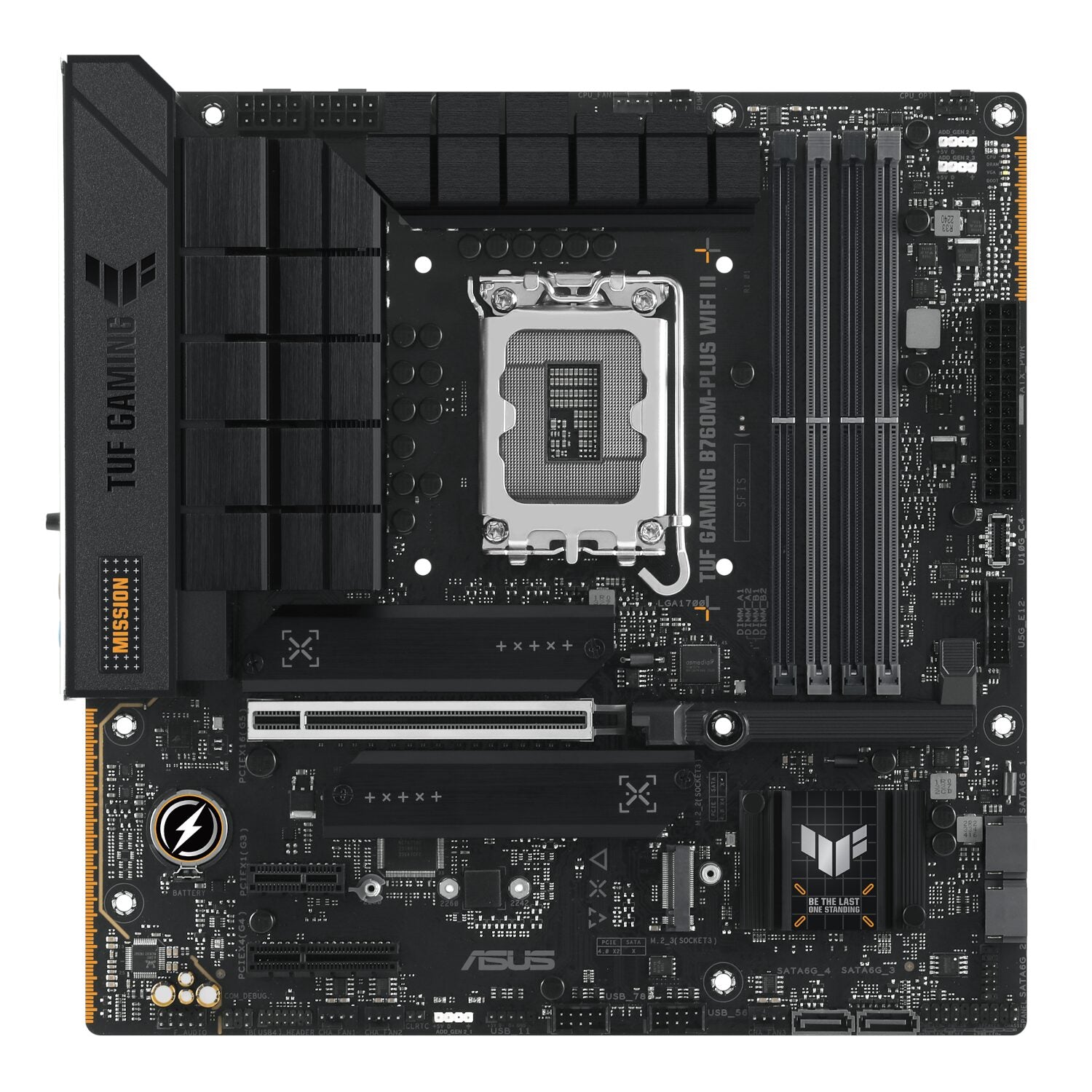

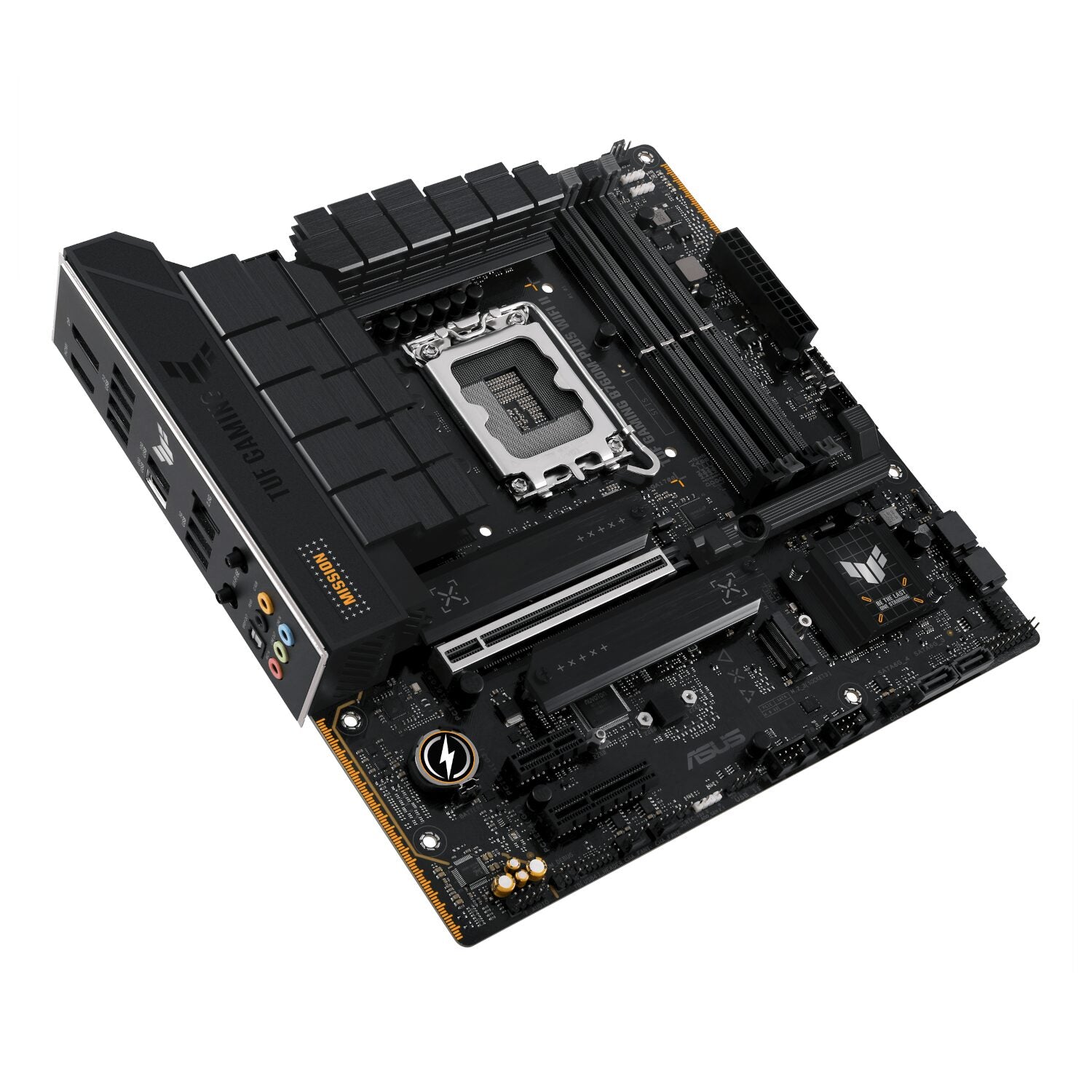

ASUS TUF Gaming B760M-PLUS WIFI II mATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core™ processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.
At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.
Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel® 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.
Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you’re building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.
FEATURES:
| Intel® LGA1700 socket supports 14h & 13th Gen Intel® Core™, 12th Core, Pentium® Gold, and Celeron® processors | |
| 12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads. | |
| DDR5 memory supports advanced multitasking and gaming responsiveness | |
| Next-gen PCIe® 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput | |
| Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times | |
| Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band | |
| Intel® 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers | |
| Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load | |
| Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity | |
| DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators | |
| ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components | |
| Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring |
SPECIFICATIONS:
| CPU | |
| Chipset | Intel® B760 Chipset |
| CPU Compatibility | Supports Intel® 14th,13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors |
| CPU Socket | LGA1700 |
| Memory Support | 4 x DIMM slots, up to 192GB total DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Dual-channel architecture Intel® Extreme Memory Profile (XMP) support |
| Graphics | 1 x DisplayPort 1 x HDMI™port |
| Expansion Slots | Intel® CoreTM Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot |
| Storage | |
| Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports | |
| Ethernet | 1 x Realtek 2.5Gb ethernet TUF LANGuard |
| Wireless & Bluetooth | 2x2 Wi-Fi 6E (802.11ax) Bluetooth® v5.3 (2.4/5/6GHz) |
| USB | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers |

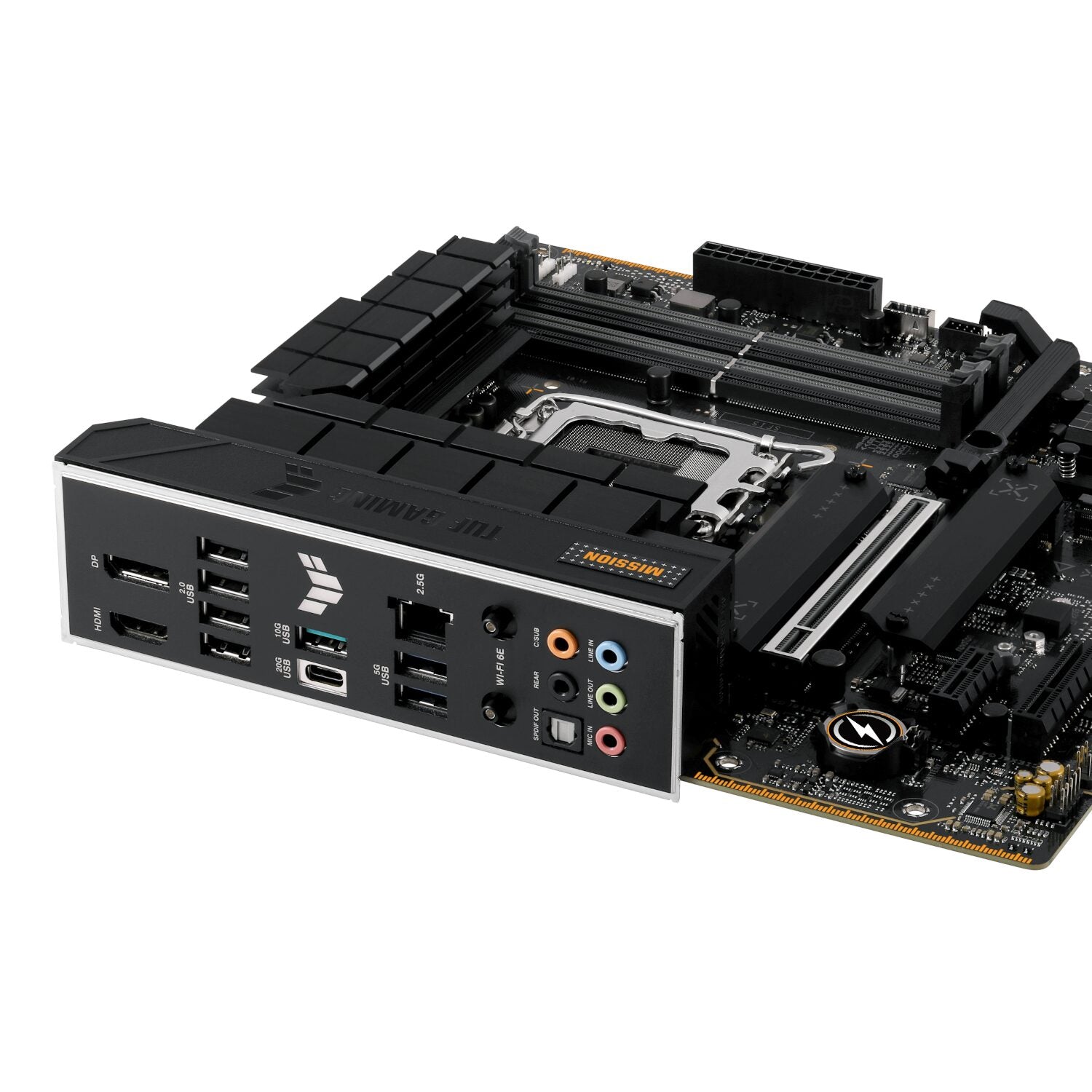

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Special Features | ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Antenna Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution M.2 heatsinks VRM heatsink design ASUS EZ DIY CPU Socket lever protector ProCool Pre-mounted I/O shield SafeDIMM AURA Sync Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate AURA Creator AURA Sync Fan Xpert 2+ Power Saving Two-Way AI Noise Cancellation AI Suite 3 DIGI+ VRM PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | |
| Form Factor | mATX (micro-ATX) Dimensions(24.4 x 24.4 cm) |
WHAT'S IN THE BOX:

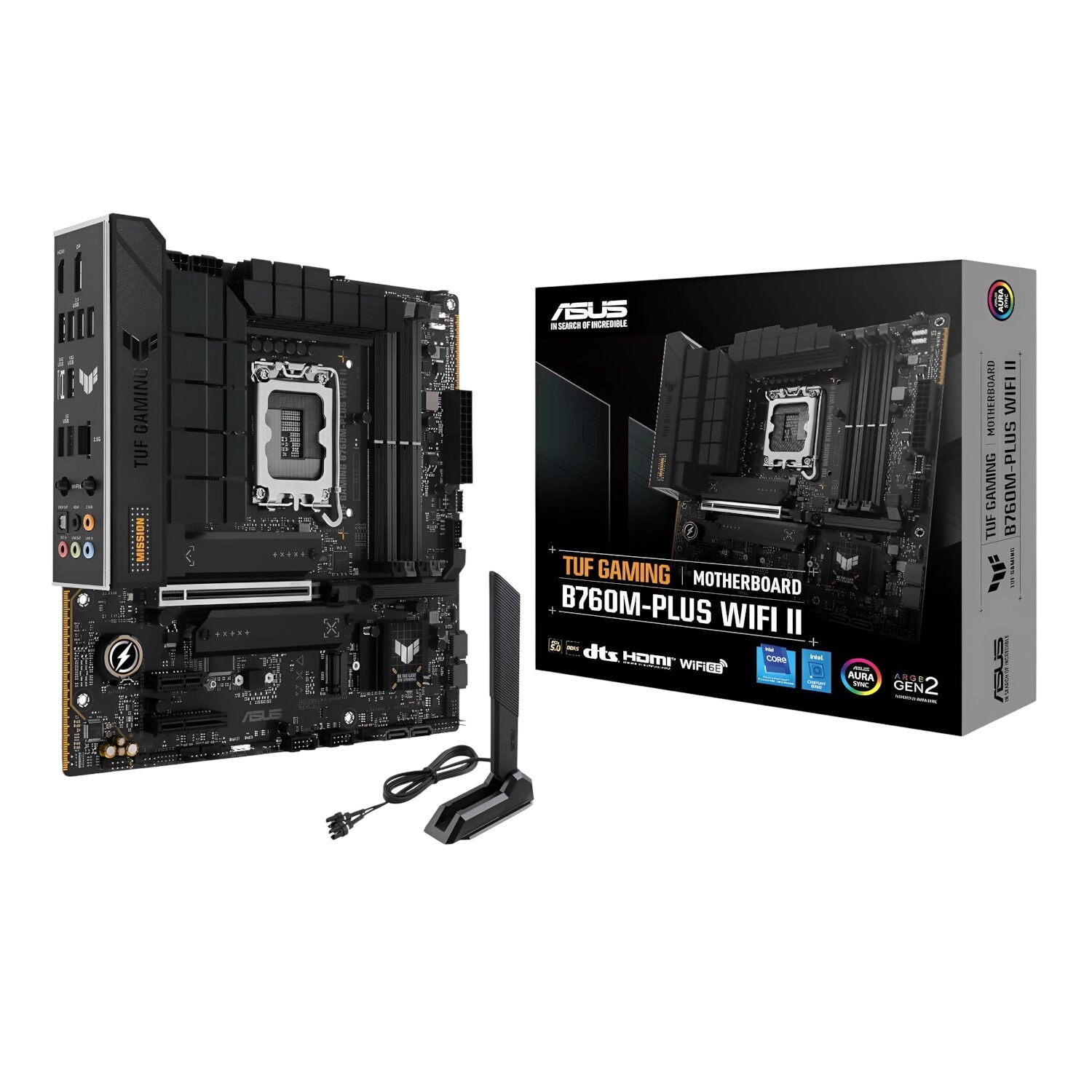

- Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard x1
- SATA 6Gb/s cables x2
- ASUS Q-Antenna x1
- M.2 Rubber Package x1
- TUF Gaming sticker x1
- Screw packages for M.2 SSD x2
- TUF Certification card x1
- User guide x1
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
