ASUS
ASUS TUF Gaming B850M-PLUS WIFI AM5 mATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
ASUS TUF Gaming B850M-PLUS WIFI: Unyielding Performance for the Next Generation
Engineered for marathon gaming sessions and demanding workloads, the ASUS TUF GAMING B850M-PLUS WIFI motherboard takes the essential elements of the latest AMD AM5 platform and combines them with game-ready features and proven durability. Built with military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard is ready for AMD Ryzen™ 7000, 8000, and 9000 series processors. It delivers rock-solid, stable performance that goes beyond expectations, providing the power and connectivity required for advanced AI PC applications.
Dominating Power and Performance
At its core, the TUF GAMING B850M-PLUS WIFI features a robust 14+2+1 DrMOS power stage design (rated at 80A) to handle the demands of high-core-count CPUs. The 8-layer PCB design, ProCool 8+8 pin power connectors, and durable TUF capacitors and chokes ensure stable and efficient power delivery for maximum performance. This motherboard is primed for next-generation speeds with support for DDR5 memory, reaching up to 8000+ MT/s (OC), and a PCIe 5.0 x16 slot for the most powerful graphics cards. For storage, it boasts a blazing-fast PCIe 5.0 M.2 slot and two additional PCIe 4.0 M.2 slots, ensuring the quickest load times.
Comprehensive Connectivity and Networking
Stay connected with a full suite of advanced I/O. This motherboard features ultrafast WiFi 6E for a superior wireless experience in dense environments and a Realtek 2.5Gb Ethernet port for low-latency gaming and smooth, high-resolution video streaming. The rear panel is equipped with extensive USB support, including a USB 3.2 Gen 2x2 Type-C® port that delivers speeds up to 20Gbps. Additional connectivity includes multiple USB 3.2 Gen 2 and Gen 1 ports, HDMI™ 2.1, and DisplayPort™ 1.4.
Built TUF, Built for You
ASUS has incorporated several DIY-friendly features to make the building process smoother than ever. The PCIe Slot Q-Release, M.2 Q-Latch, and Q-LED diagnostic indicators simplify component installation and troubleshooting. A pre-mounted I/O shield not only streamlines setup but also protects the ports. Customize your build's aesthetics with Aura Sync RGB lighting and Addressable Gen 2 headers, allowing you to synchronize lighting effects across your entire setup for a truly personalized look.
| Specifications | |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors. |
| Chipset | AMD B850. |
| Memory | 4 x DIMM, Max. 256GB, DDR5 8000+(OC) MT/s, Dual Channel Memory Architecture, Supports AMD EXPO™ and AEMP. |
| Graphics | 1 x DisplayPort™ 1.4 (8K@30Hz), 1 x HDMI™ 2.1 (4K@60Hz). |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (Ryzen 9000/7000 Series), 1 x PCIe 4.0 x1 slot. |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports M.2_1 slot (Key M): Type 2280, PCIe 5.0 x4 mode M.2_2 slot (Key M): Type 2242/2260/2280, PCIe 4.0 x4 mode M.2_3 slot (Key M): Type 2242/2260/2280, PCIe 4.0 x4 mode. |
| Networking | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard. |
| Wireless & Bluetooth | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2x2, Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3. |

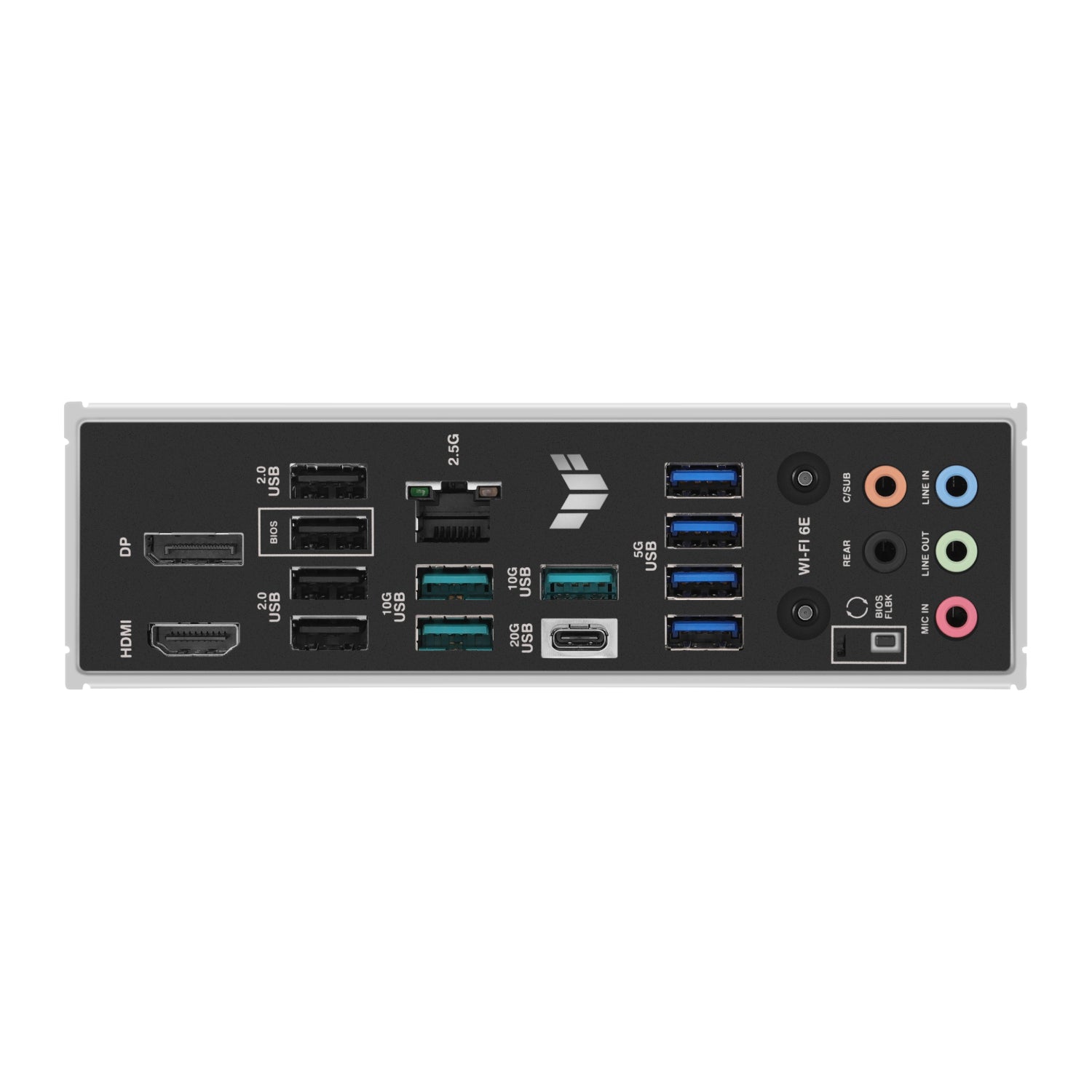

| Rear Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C® 20Gbps), 3 x USB 3.2 Gen 2 ports (3 x Type-A 10Gbps), 4 x USB 3.2 Gen 1 ports (4 x Type-A 5Gbps), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button. |
| Internal I/O Connectors | 1 x USB 3.2 Gen 2 connector (supports USB Type-C® 10Gbps), 1 x USB 3.2 Gen 1 header (supports 2 additional USB 5Gbps ports), 2 x USB 2.0 headers (support 3 additional USB 2.0 ports), 3 x Addressable Gen 2 headers, 1 x Aura RGB header. |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, supports up to 32-Bit/192 kHz playback. |
| Form Factor | Micro-ATX (mATX). |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS. |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
