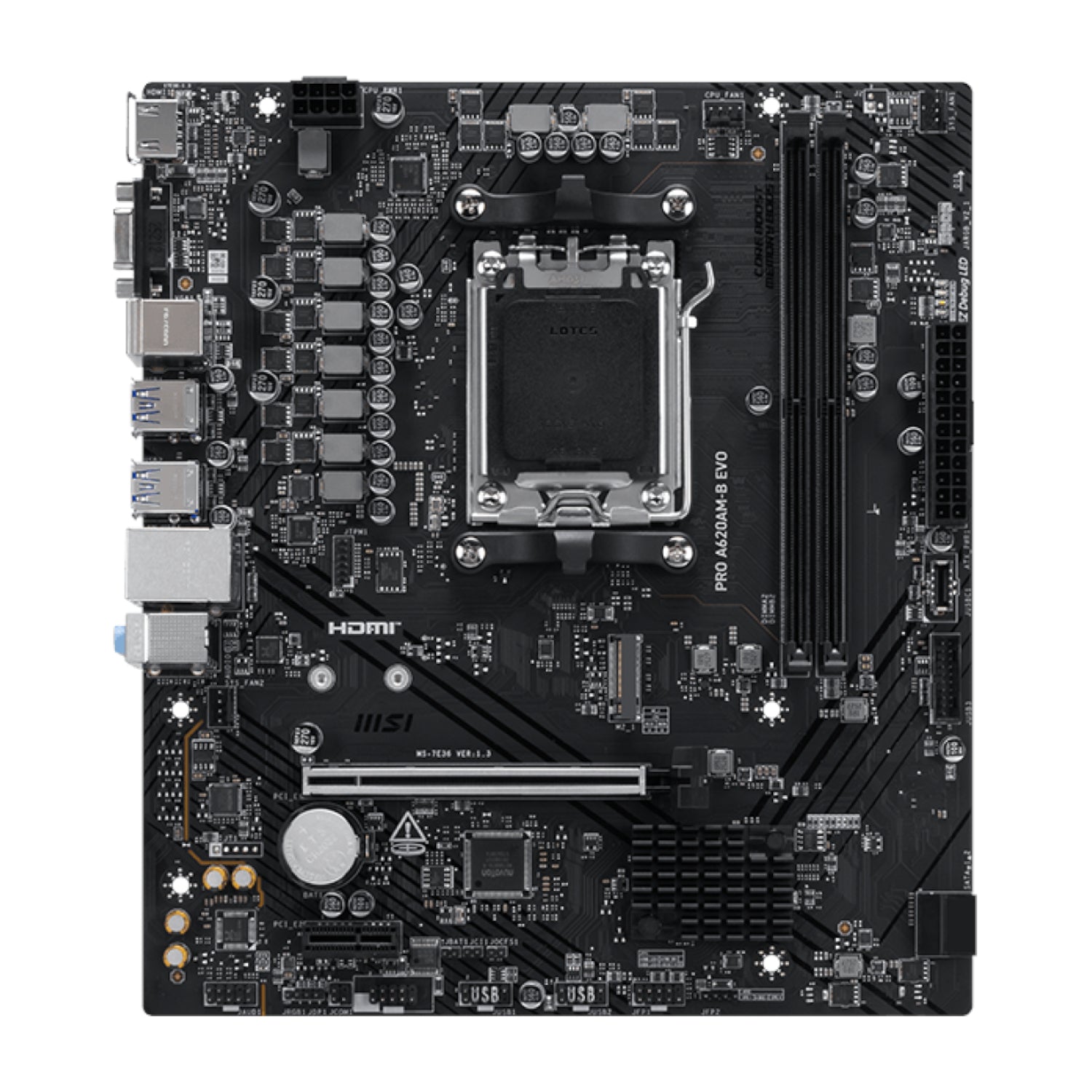

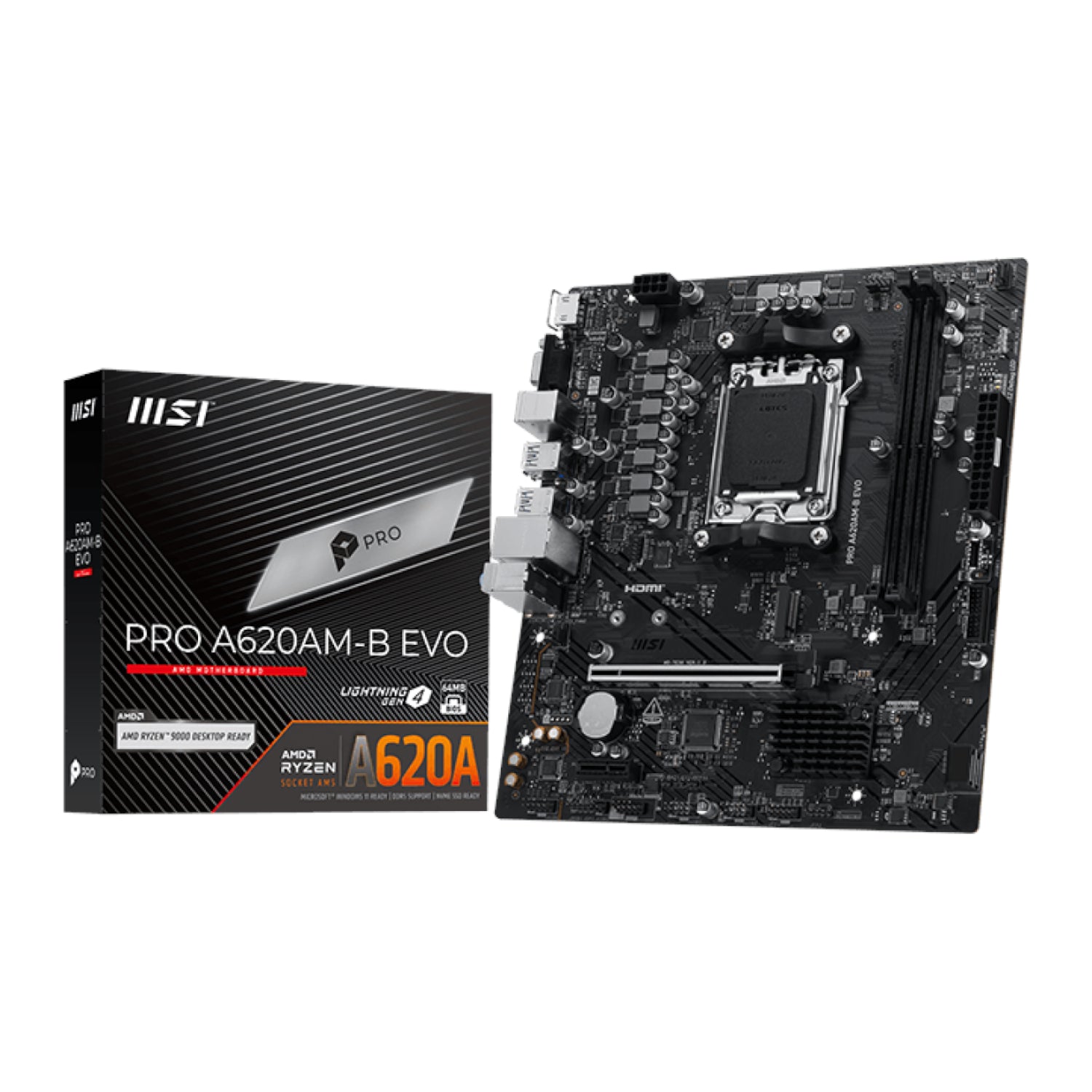

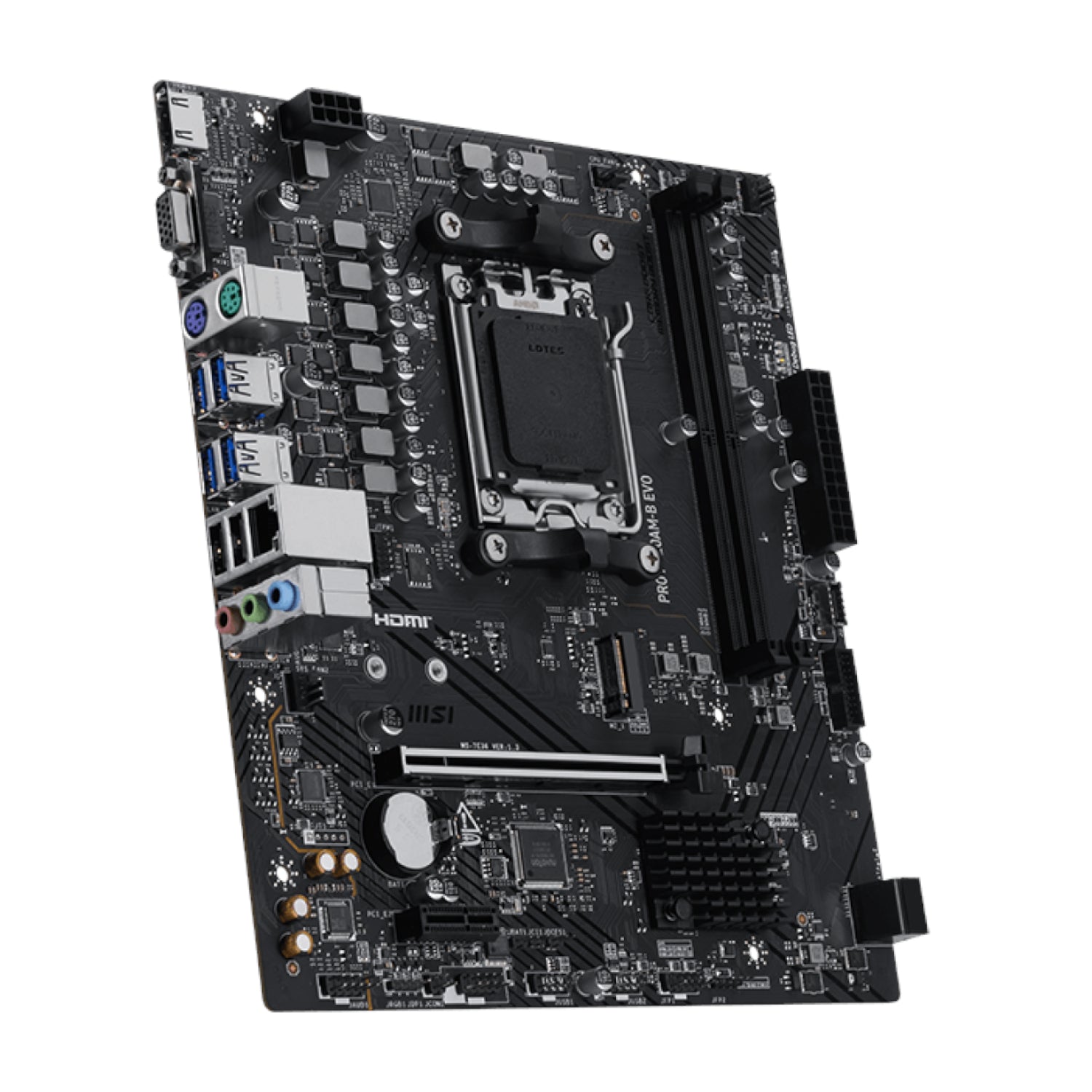

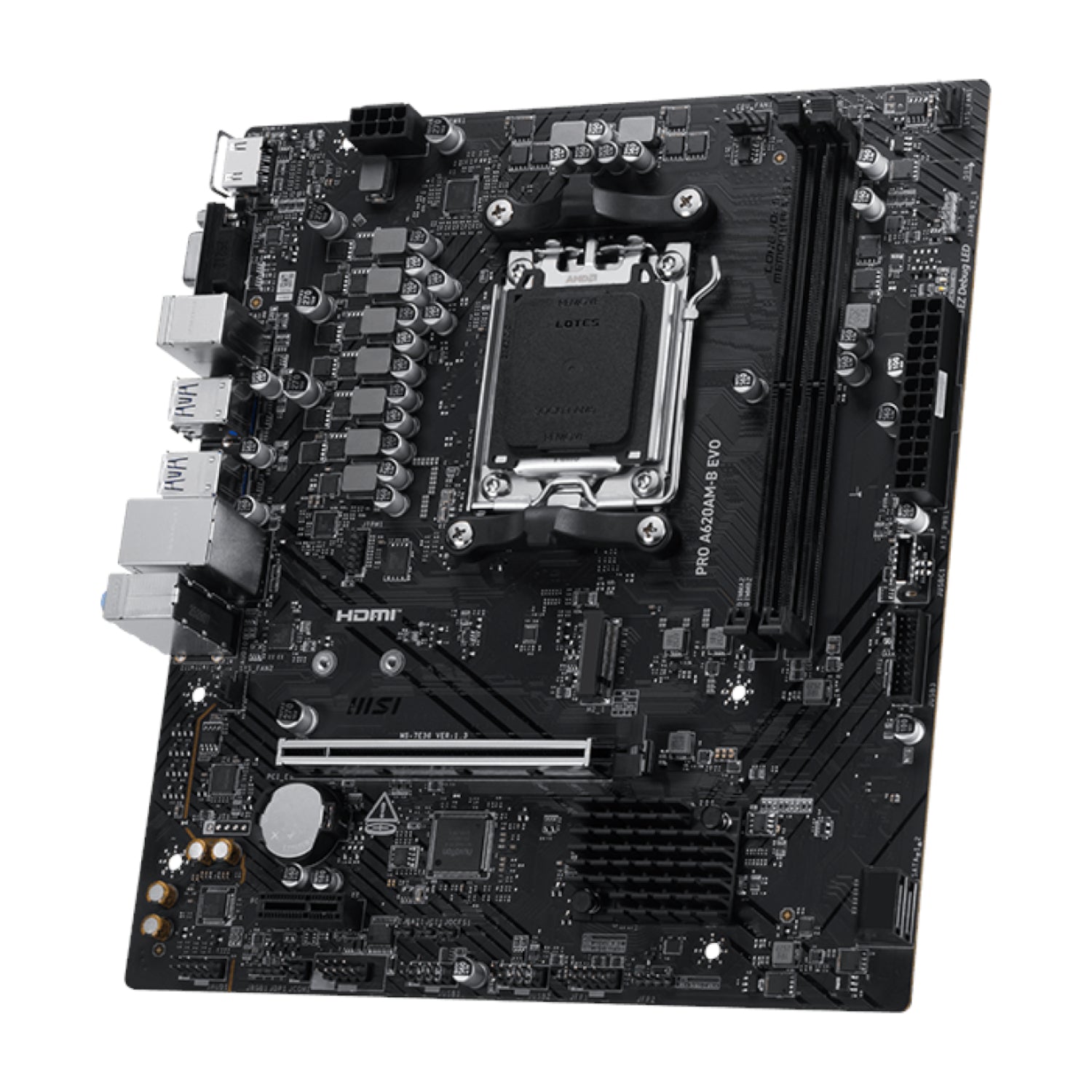

MSI PRO A620M-B EVO AM5 mATX Motherboard
Pickup available at NexGen Computing
Usually ready in 24 hours
Engineered for Stability and Performance
The MSI PRO A620M-B EVO motherboard is the definitive foundation for your next-generation AMD Ryzen build, designed for unwavering stability and high-performance computing. Whether for business, productivity, or gaming, the PRO Series combines robust functionality with high-quality materials. This mATX board is engineered to support the latest AMD Ryzen™ 9000, 8000, and 7000 series processors, providing a reliable and future-proof platform.
Core Power and Memory Enhancement
At its heart, the PRO A620M-B EVO features MSI's exclusive Core Boost technology. With a premium layout and digital power design, it ensures efficient and stable power delivery to the CPU, supporting more cores and providing consistently better performance. This is complemented by Memory Boost, an advanced system with a fully isolated circuit that delivers pure DDR5 data signals. Experience world-class memory performance, stability, and compatibility with overclocking speeds reaching 6800+ MT/s.
Lightning-Fast Connectivity and Storage
Unleash the full potential of your components with lightning-fast data transfer speeds. The motherboard is equipped with a PCIe 4.0 slot and a Lightning Gen 4 x4 M.2 connector, offering a blazing-fast experience for the latest graphics cards and storage devices. The reinforced Steel Armor on the PCIe slot protects your graphics card against bending and EMI, ensuring optimal performance and stability. For networking, a Realtek 2.5G LAN controller delivers a premium, high-speed connection for demanding online tasks.
Immersive Audio and User-Friendly Design
Reward your ears with studio-grade sound quality. Audio Boost technology provides an immersive audio experience, powered by a high-definition audio processor and premium quality capacitors. For builders, the PRO A620M-B EVO simplifies the process with features like EZ Debug LEDs, which provide an easy way to troubleshoot any issues during assembly.
| CPU Support | |
|---|---|
| CPU Socket | Socket AM5 |
| Compatible Processors | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | |
| Chipset | AMD A620A Chipset |
| Memory | |
| Memory Slots | 2x DDR5 DIMM Slots |
| Max Memory | 128GB |
| Memory Support | DDR5 6800+(OC)/.../4800(JEDEC) MT/s |
| Features | Supports Dual-Channel mode, non-ECC, un-buffered memory, AMD EXPO™ |
| Expansion Slots | |
| PCI-E x16 | 1x PCIe 4.0 x16 slot (with Steel Armor) |
| PCI-E x1 | 1x PCIe 3.0 x1 slot |
| Storage | |
| M.2 Slot | 1x M.2 Gen4 x4 64Gbps slot |
| SATA Ports | 2x SATA 6Gb/s ports |
| RAID Support | Supports RAID 0 and RAID 1 for SATA storage devices |
| Networking | |
| LAN Controller | Realtek® RTL8125 2.5G LAN |
| Audio | |
| Audio Codec | Realtek® ALC897 Codec |
| Channels | 8-Channel (7.1) High Definition Audio |
| Onboard Graphics | |
| HDMI™ | 1x HDMI™ 2.1, supports 4K 60Hz |
| VGA | 1x VGA, supports 2048x1536 50Hz |
| Internal I/O Connectors | |
| Power | 1x 24-pin ATX, 1x 8-pin CPU |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| USB Headers | 1x USB 5Gbps Type-C, 1x USB 5Gbps (supports 2 ports), 2x USB 2.0 (supports 4 ports) |
| RGB/LED | 1x Addressable V2 RGB (JARGB_V2), 1x RGB (JRGB) |
| General | |
| Form Factor | mATX |
| Dimensions | 243.84mm x 218mm |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
