TP-Link
TP-Link MC200CM Gigabit Multi-Mode Media Converter (SC)
Pickup available at NexGen Computing
Usually ready in 24 hours
Bridge Your Network: Seamlessly Convert Fiber to Copper

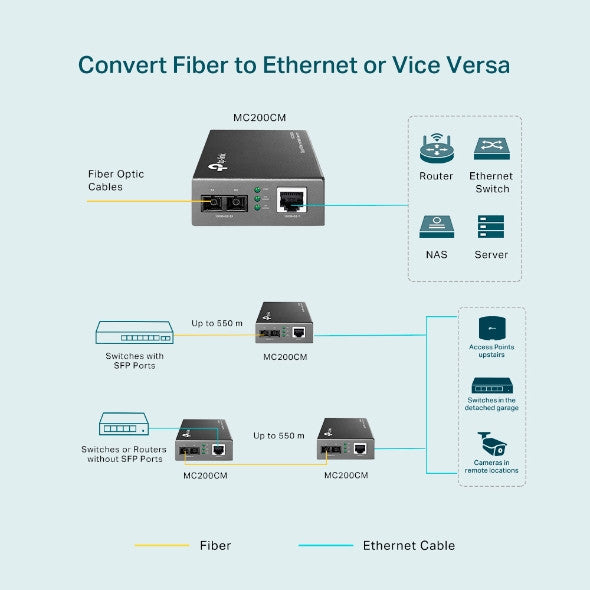

Unlock the full potential of your network with the TP-Link MC200CM Gigabit Multi-Mode Media Converter. This high-performance device is engineered to convert a 1000BASE-SX multi-mode fiber optic signal to a 1000BASE-T copper Ethernet signal, and vice versa. It's the perfect solution for extending your Gigabit Ethernet network over a significant distance, far beyond the limitations of standard copper cabling. Whether you're connecting buildings, floors, or remote network segments, the MC200CM provides a reliable, high-speed, and cost-effective bridge.
High-Speed, Long-Range Connectivity
Designed to meet IEEE 802.3ab and 802.3z standards, the MC200CM ensures compatibility and top-tier performance. It operates at a wavelength of 850nm for both transmitting and receiving data, allowing you to extend your network connection up to 550 meters (0.55km) using multi-mode fiber optic cable. This converter works in full-duplex mode at a full wire-speed forwarding rate of 1000Mbps for both its fiber (FX) and copper (TX) ports, guaranteeing that your network's speed is never compromised.
Flexible and User-Friendly Design

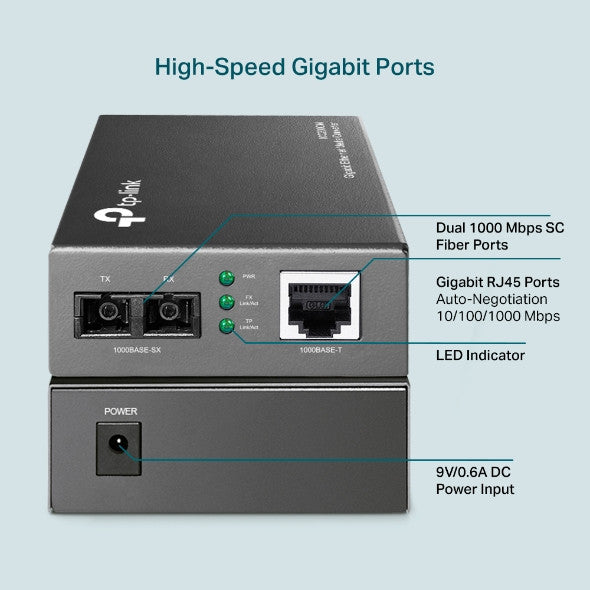

The MC200CM is built for convenience and flexibility. It can be used as a standalone device right out of the box or installed into a TP-Link 14-slot rackmount chassis (TL-MC1400) for managed deployment. Key features include Auto MDI/MDIX for the RJ45 port, which eliminates the need for crossover cables, and front-panel LED indicators for easy monitoring of power and network activity (PWR, LINK, RX). A configurable switch allows you to set the fiber port to either Force or Auto transfer mode for enhanced compatibility.
Technical Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| INTERFACE | |
| Ports | 1x 1000M SC/UPC Port 1x 10/100/1000M RJ45 Port (Auto MDI/MDIX) |
| NETWORK MEDIA | |
| 1000BASE-FX | Multi-mode Fiber |
| 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| GENERAL | |
| LED Indicators | PWR, LINK, RX |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.66W |
| Wavelength | 850nm |
| Max Fiber Cable Length | 0.55 km (550 m) with 50/125um fiber 0.22 km (220 m) with 62.5/125um fiber |
| OTHERS | |
| Certifications | FCC, CE, RoHS |
| Package Contents | Media Converter MC200CM Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
