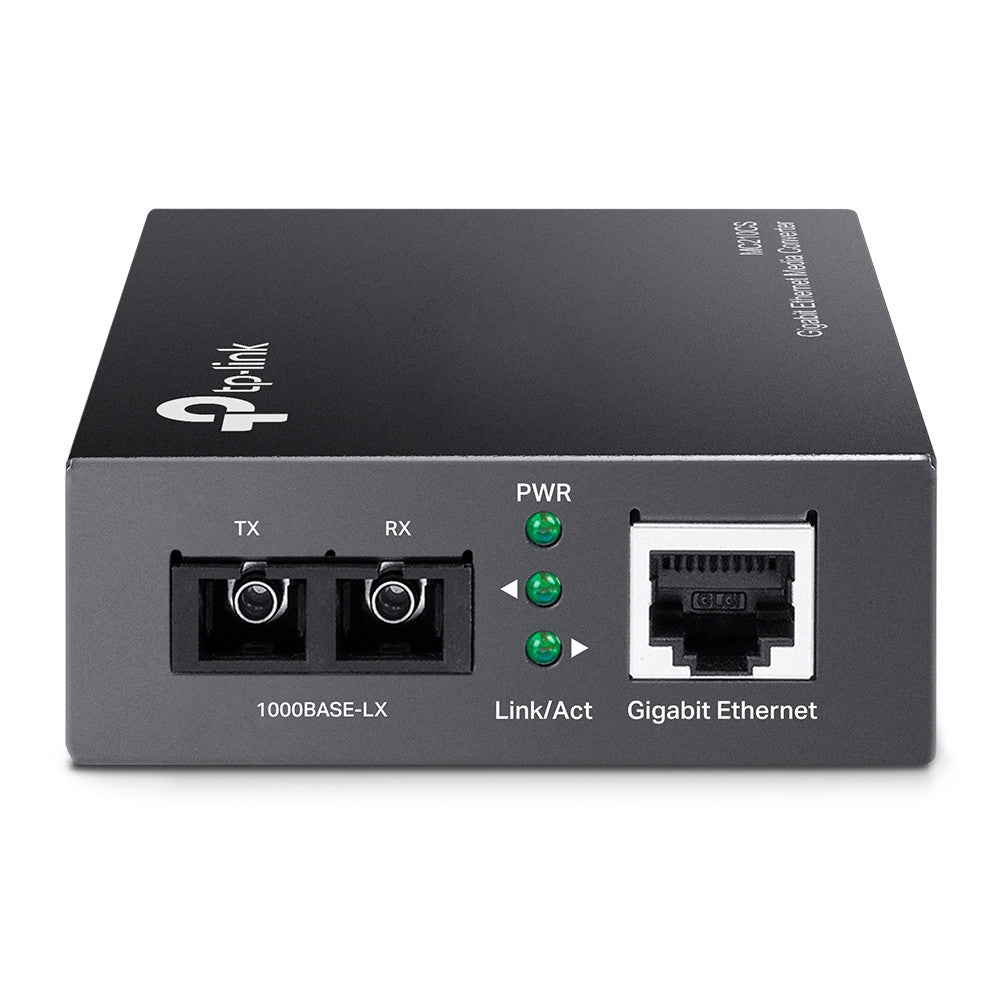

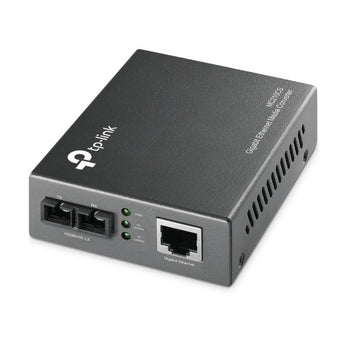

TP-Link MC210CS Gigabit Ethernet to Single-Mode SC Fiber Media Converter
Pickup available at NexGen Computing
Usually ready in 24 hours
Bridge Copper and Fiber Networks with High-Speed Reliability
Effortlessly convert your high-speed copper connection to a long-range fiber optic signal with the TP-Link MC210CS Gigabit Media Converter. This device is expertly designed to translate 1000BASE-T RJ45 Ethernet to 1000BASE-LX fiber optics, allowing you to extend your network's reach up to an impressive 15 kilometers (9.3 miles). It's the ideal solution for connecting remote workstations or network segments where standard Ethernet cabling falls short. Designed for use with single-mode fiber cable and an SC-type connector, it ensures a stable, high-bandwidth link for your most critical data.
Gigabit Performance and Advanced Features

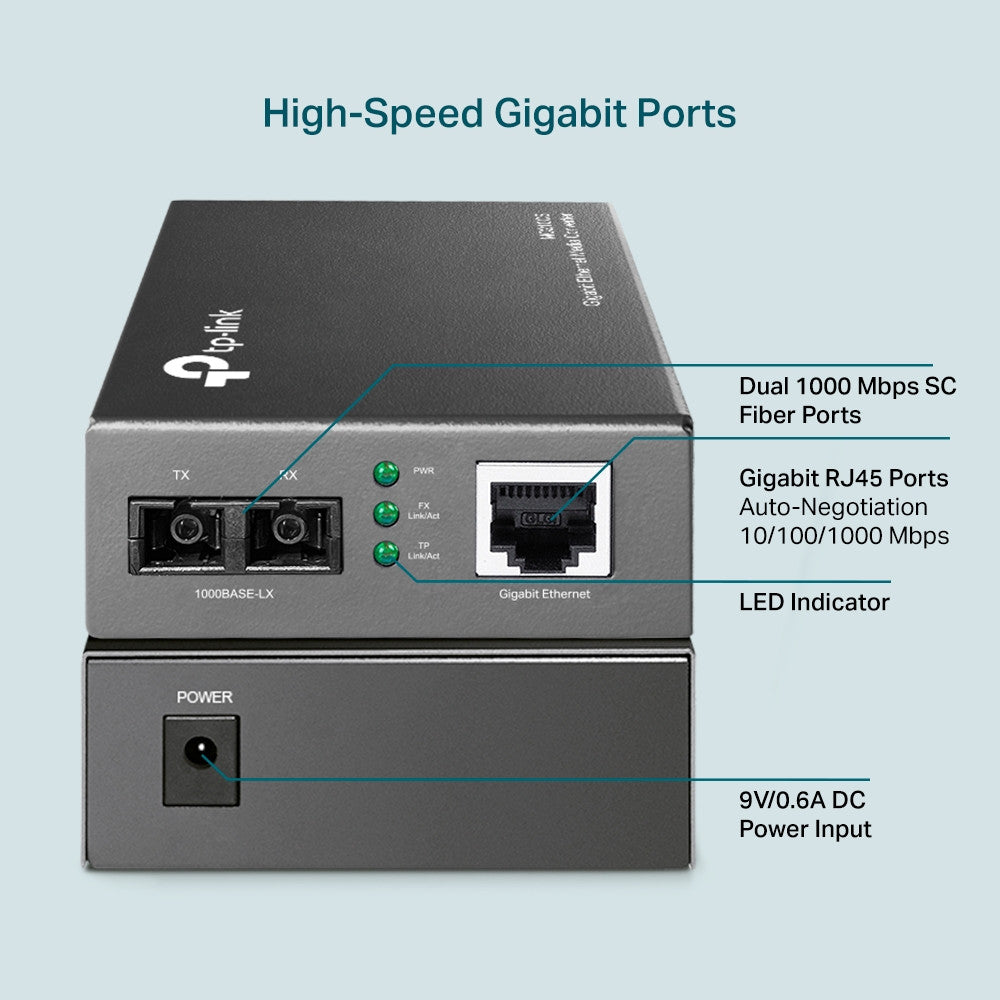

The MC210CS operates at a full wire-speed forwarding rate, supporting 1000Mbps in full-duplex mode for both its RJ45 and fiber ports. It complies with IEEE 802.3ab and IEEE 802.3z standards, guaranteeing compatibility within your existing network infrastructure. Key features include Auto MDI/MDI-X for the TX port, which eliminates the need for crossover cables, and easy-to-read front panel status LEDs for simple monitoring of network activity. This converter can be used as a standalone device right out of the box or integrated seamlessly into a TP-Link 19-inch system chassis for larger deployments.
Technical Specifications
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function | Full Duplex Flow Control (IEEE 802.3x), Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
| INTERFACE | |
| Ports | 1 x 10/100/1000Mbps RJ45 Port (Auto MDI/MDIX), 1 x 1000Mbps SC Fiber Port |
| NETWORK MEDIA | |
| 1000BASE-FX | Single-mode Fiber |
| 1000BASE-T | UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m) |
| PERFORMANCE | |
| Wavelength | 1310nm (both transmitting and receiving) |
| Max. Data Transfer Rate | 1 Gbps |
| Max. Fiber Cable Distance | 15 km (9.3 miles) |
| GENERAL | |
| LED Indicators | PWR, LINK, RX |
| Power Supply | External Power Adapter |
| Power Consumption | 5.5W (Max) |
| Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
| Certifications | FCC, CE, RoHS |
| Operating Temperature | 0°C to 50°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
