APC Smart UPS RT 10KVA 230V Online UPS For IT Infrastructure
Pickup available at NexGen Computing
Usually ready in 24 hours

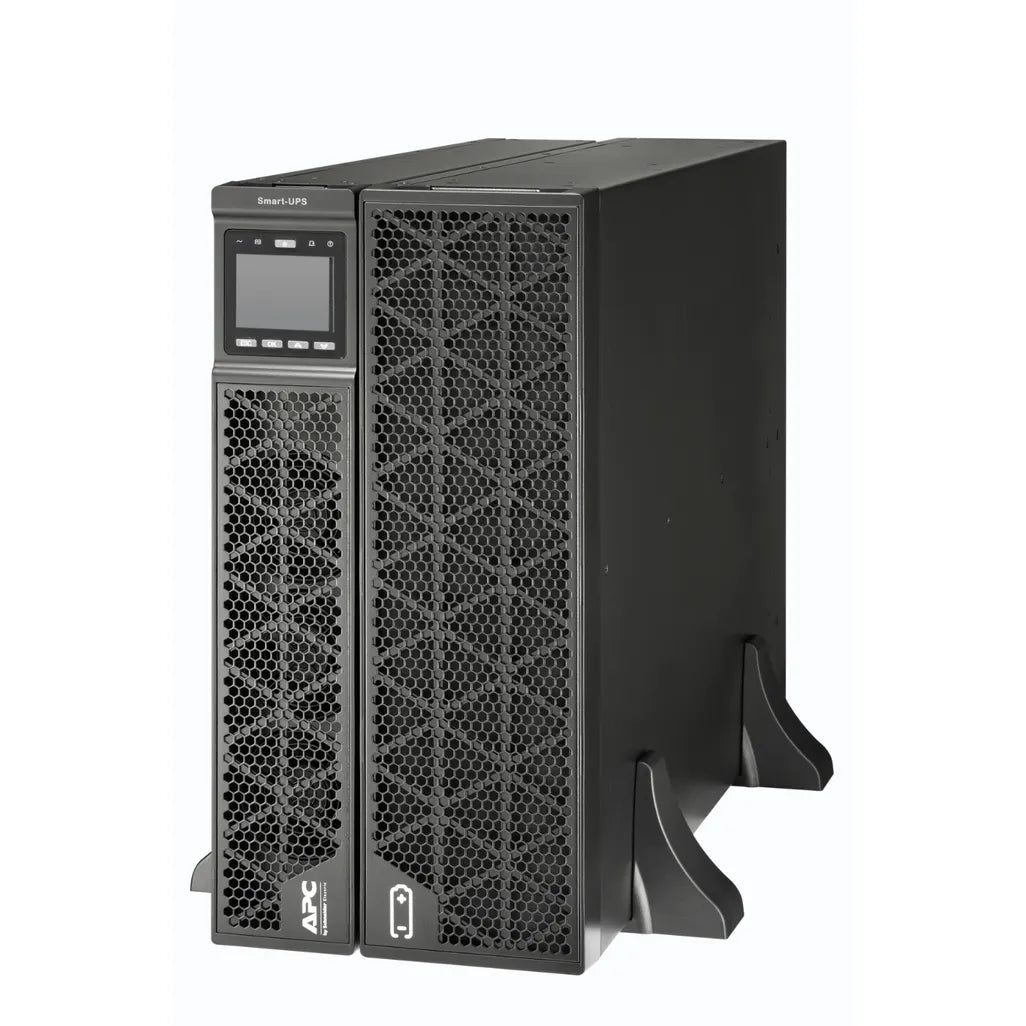

Protect critical IT infrastructure with the APC SMART-UPS RT 10KVA 230V. This online, double-conversion UPS delivers reliable power protection for servers, storage, networking gear, and data centers, ensuring clean, stable 230V output even during outages or voltage fluctuations.
Designed for reliability and scalable uptime, it supports rack-mount or tower configurations to fit your space, with hot-swappable battery modules and a front-panel display for quick serviceability. The UPS includes USB and RS-232 communication ports, and is compatible with optional network management cards for advanced monitoring and remote control.
Key benefits include:
- Online, double-conversion protection delivers clean, continuous power with minimal transfer times.

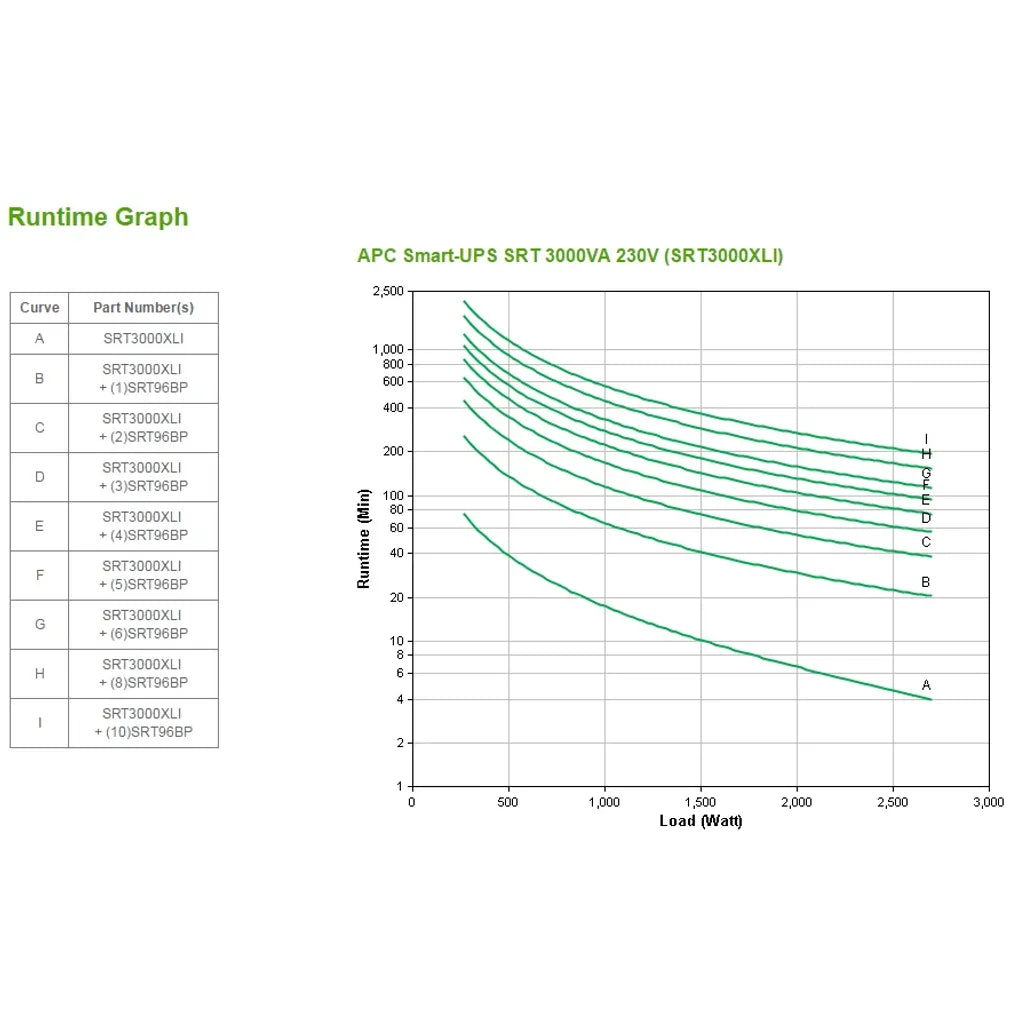

- Scalable runtime by adding optional battery modules to meet uptime requirements.
- Flexible deployment with rack-mount or tower form factors and easy front access.
- Comprehensive management via USB, RS-232, and optional Network Management Card for monitoring and control.
- High efficiency in online operation to reduce energy usage and operating costs.
Specifications
- Model: APC SMART-UPS RT 10KVA 230V
- Power rating: 10 kVA / 8 kW (0.8 PF)
- Output voltage: 230 V nominal
- Input voltage: 230 V nominal
- Input frequency: 50/60 Hz auto-sensing
- Topology: Online double-conversion

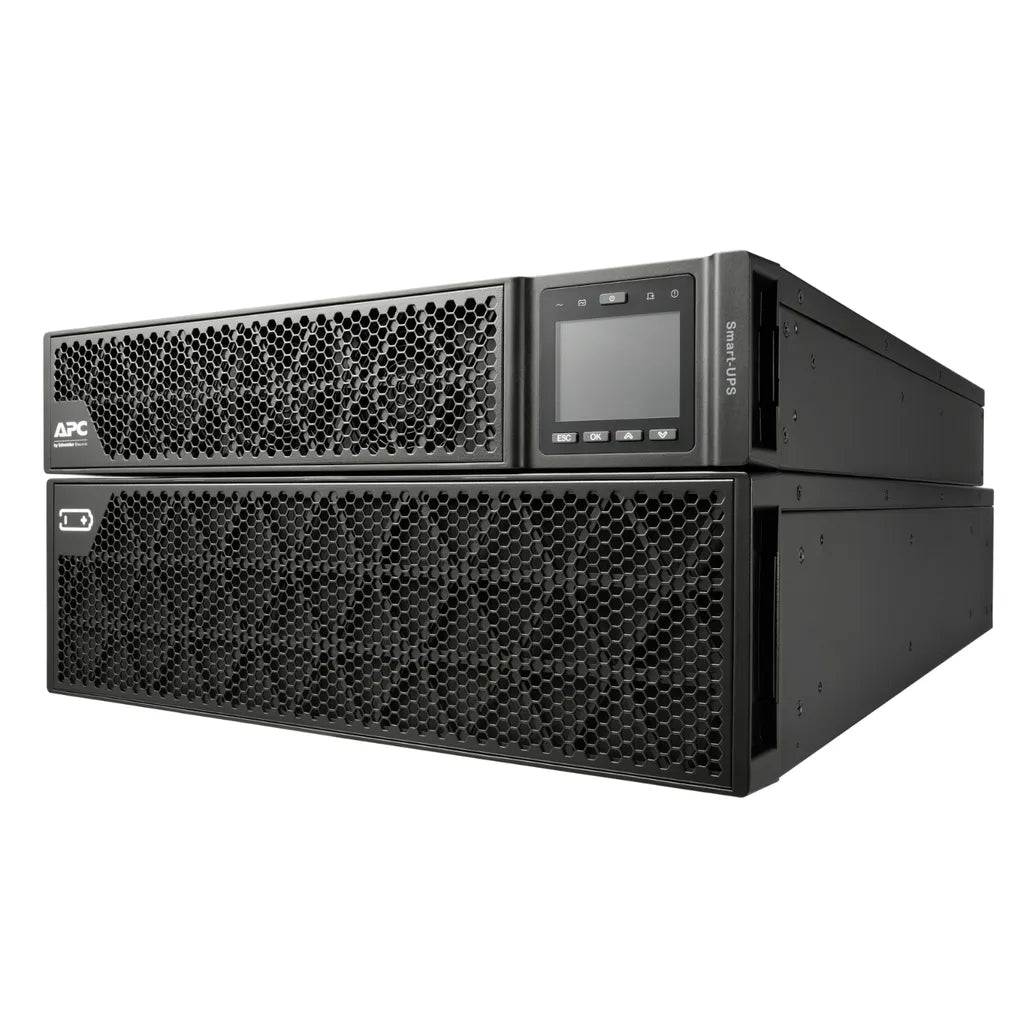

- Form factor: Rack-mountable and tower-capable
- Communications: USB and RS-232 ports; optional Network Management Card
- Display: Front-panel LCD for status and diagnostics
- Battery: Hot-swappable, modular battery cartridges
- Parallel capability: Optional parallel redundancy/capacity with additional hardware
- Operating environment: Suitable for data centers, server rooms, and critical IT deployments
| Battery voltage | 96 |
|---|---|
| Battery recharge time | 4 |
| Battery life (max) | 5 |
| Audible alarm modes | Alarm when on battery,Low battery alarm,Overload alarm |
| Audible alarm(s) | Y |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 3 |
| Power plug | Hardwire |
| Automatic battery test | Y |
| Emergency Power Off (EPO) connector | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| LED indicators | Y |
| International Protection (IP) code | IP20 |
| Auto-restart | Y |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Cold start | Y |
| Hot-swap battery | Y |
| Crest factor | 3:1 |
| Surge energy rating | 600 |
| Non-operating altitude | 0 - 15240 |
| Width | 440 |
| Operating altitude | 0 - 2011.68 |
| Output power capacity | 10 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Input operation voltage (max) | 285 |
| Output operation voltage (max) | 240 |
| Output operation voltage (min) | 220 |
| Input frequency | 40/70 |
| Output power | 10000 |
| UPS topology | Double-conversion (Online) |
| Input operation voltage (min) | 100 |
| Waveform | Sine |
| Output frequency | 50/60 |
| Display type | LCD |
| ECO mode | Y |
| Serial interface | Y |
| USB port | Y |
| Noise level | 55 |
| Weight | 81120 |
| Depth | 620 |
| Height | 217 |
| Package weight | 83140 |
| Form factor | Rackmount/Tower |
| Battery technology | Sealed Lead Acid (VRLA) |
| Package height | 414 |
| Package width | 590 |
| Package depth | 790 |
Product Specification Sheet
| Product Spec Sheet |
 Download |
|---|
