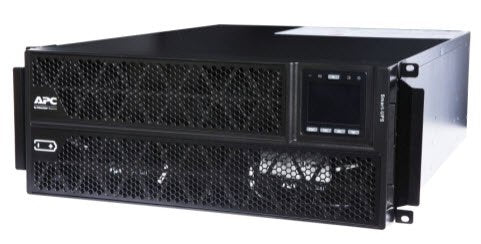

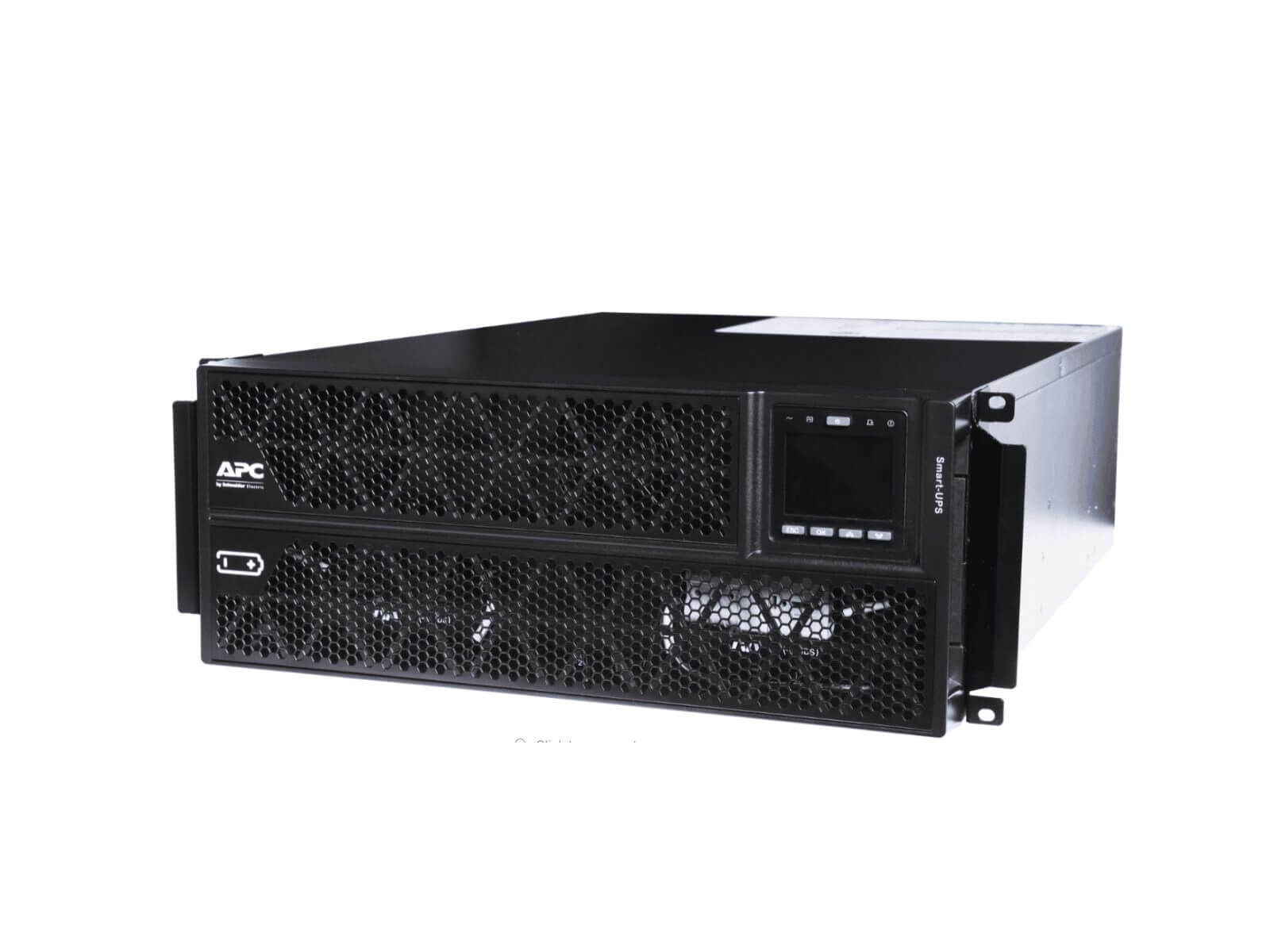

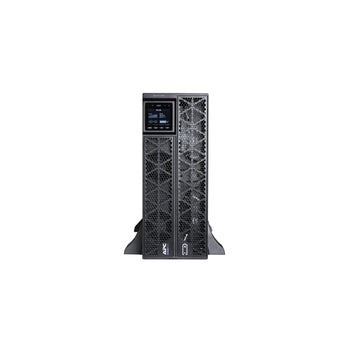

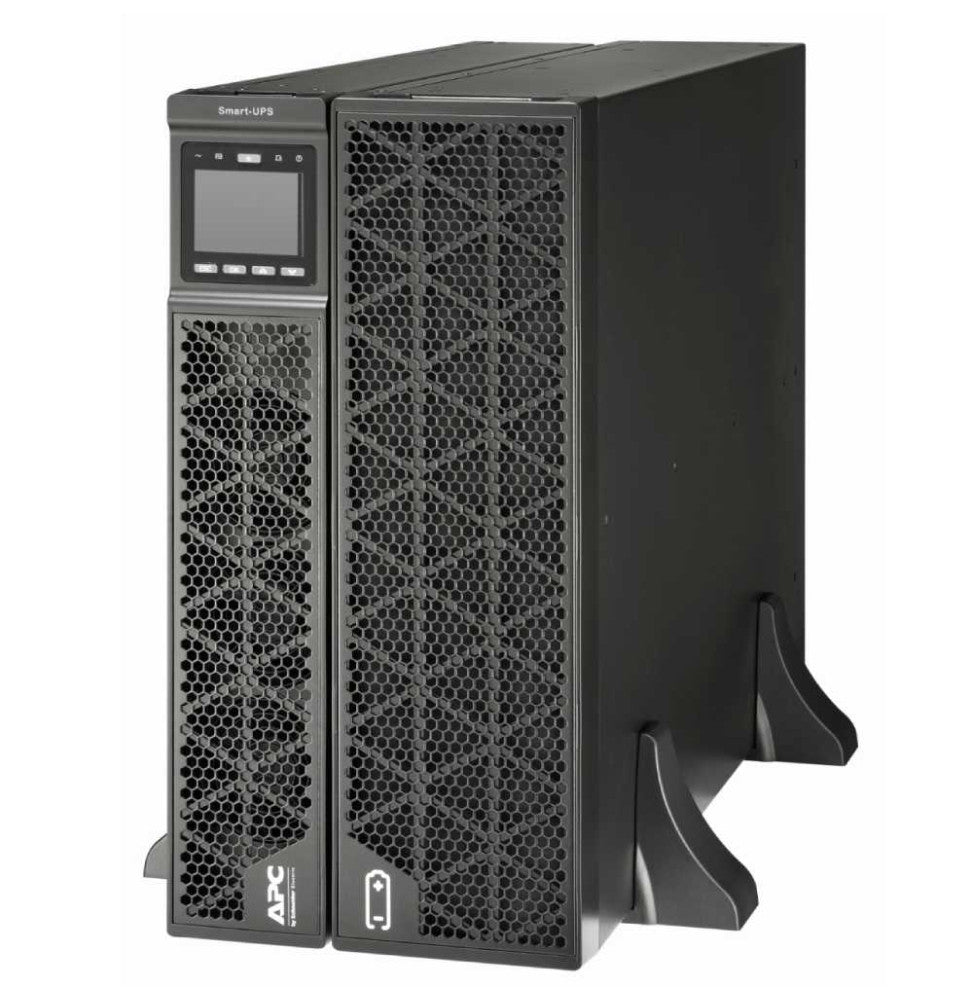

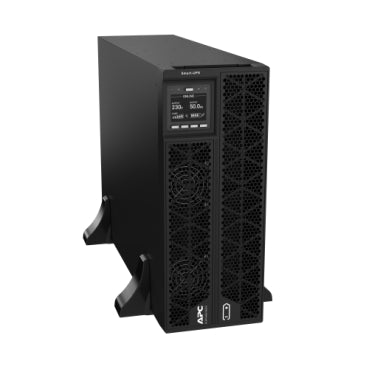

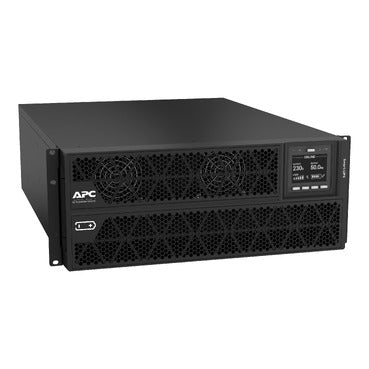

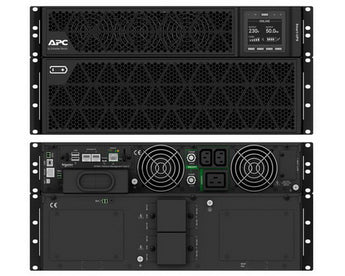

APC Smart-UPS On-Line 5kVA/5kW 230V Rack/Tower UPS
Pickup available at NexGen Computing
Usually ready in 24 hours
Uninterruptible Power for Your Critical Systems
The APC Smart-UPS On-Line SRTG5KXLI provides high-density, double-conversion, online power protection for your servers, voice/data networks, medical labs, and light industrial applications. This 5kVA/5kW UPS ensures a consistent and clean power supply with a pure sine wave output, safeguarding your sensitive electronics from power disturbances. Its versatile rack/tower convertible design allows for seamless integration into your existing setup. With zero transfer time during power outages, your connected equipment remains operational without interruption. The unit features a pre-installed Network Management Card for remote monitoring and control, and it is compatible with external battery packs to extend runtime for critical applications.
Key Features and Benefits
- High-Density Power Protection: Delivers a robust 5000VA / 5000W of power in a compact form factor.
- Double-Conversion Online Topology: Provides the highest level of power protection by isolating equipment from raw utility power.
- Pure Sine Wave Output: Ensures compatibility with all connected devices, even sensitive electronics.
- LCD Status Display: Offers a clear and intuitive interface for at-a-glance monitoring of UPS status and key metrics.
- Network Management Card Included: Allows for remote monitoring and management of the UPS over your network.
- Scalable Runtime: Supports the connection of up to 4 external battery packs for extended power during prolonged outages.
- Hot-Swappable Batteries: Enables battery replacement without powering down your connected equipment.
- ECO Mode: Achieves high operating efficiency by bypassing unused electrical components in good power conditions.
Comprehensive Specifications
| Main Specifications | |
|---|---|
| Model | SRTG5KXLI |
| UPS Topology | Double-Conversion Online |
| Rated Power | 5000VA / 5000W |
| Form Factor | Rack/Tower (4U) |
| Output | |
| Nominal Output Voltage | 230V (Configurable for 220V, 240V) |

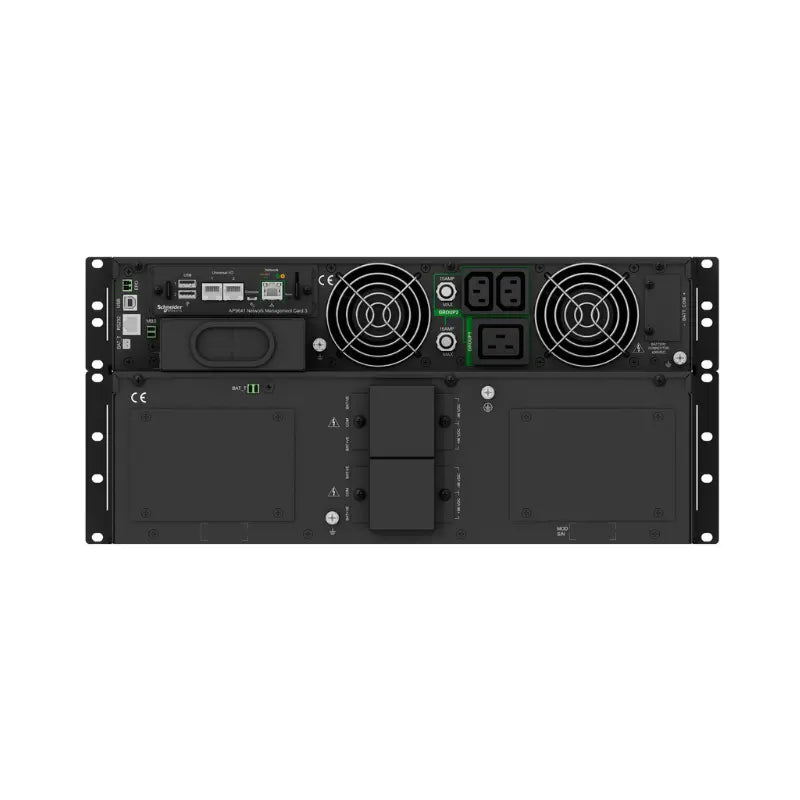

| Output Connections | 2 x IEC 60320 C13, 1 x IEC 60320 C19, Hard wire 3-wire (1P + N + E) |
| Waveform Type | Sine wave |
| Input | |
| Nominal Input Voltage | 230V |
| Input Frequency | 40 - 70 Hz Auto-sensing |
| Input Connection | Hard wire 3-wire (1P + N + E) |
| Batteries & Runtime | |
| Battery Type | Lead-acid battery |
| Typical Recharge Time | 4 hours |
| Expected Battery Life | 3 - 5 years |
| Communications & Management | |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Pre-Installed SmartSlot™ Card | Network management card 3 with environmental monitoring |
| Control Panel | Multi-function LCD status and control console |
| Physical | |
| Maximum Height | 175 mm |
| Maximum Width | 440 mm |
| Maximum Depth | 620 mm |
| Net Weight | 55.9 kg |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
| Operating Elevation | 0 - 3000 meters |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
