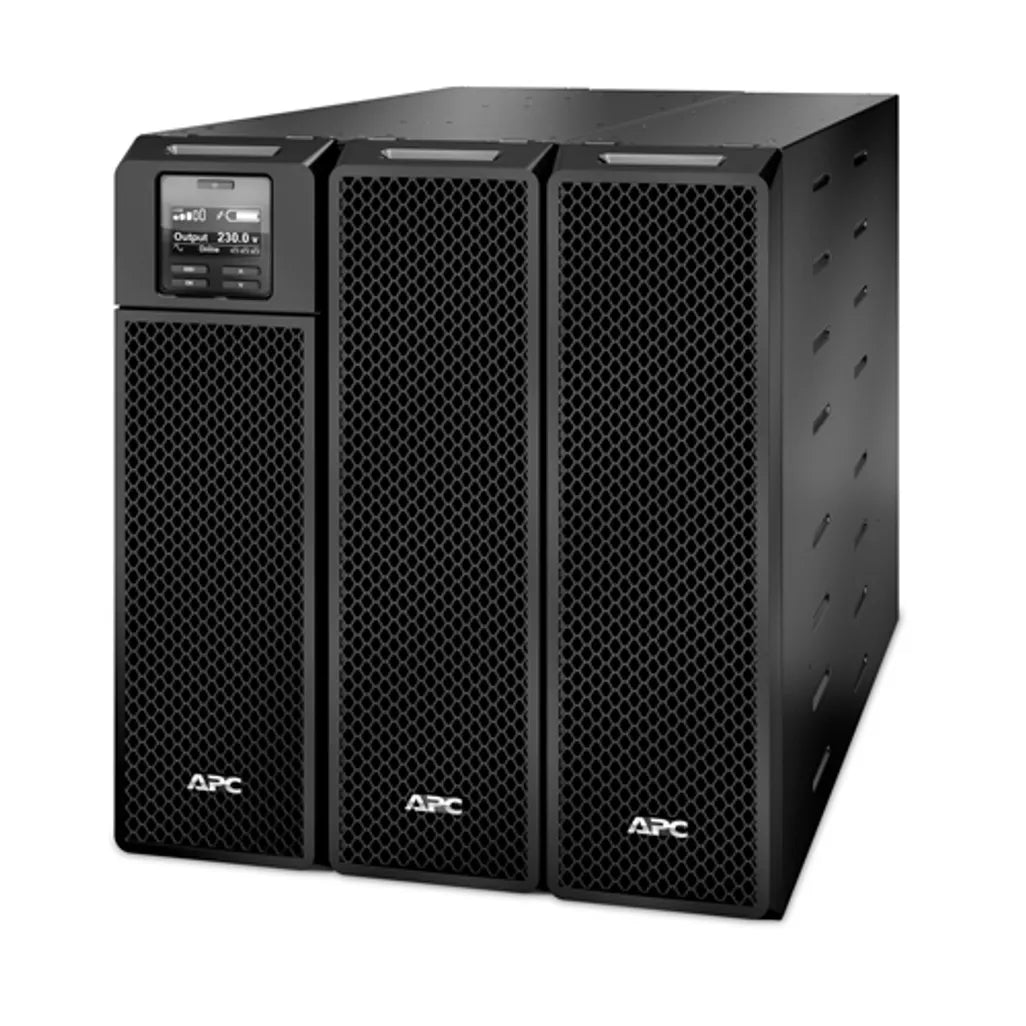

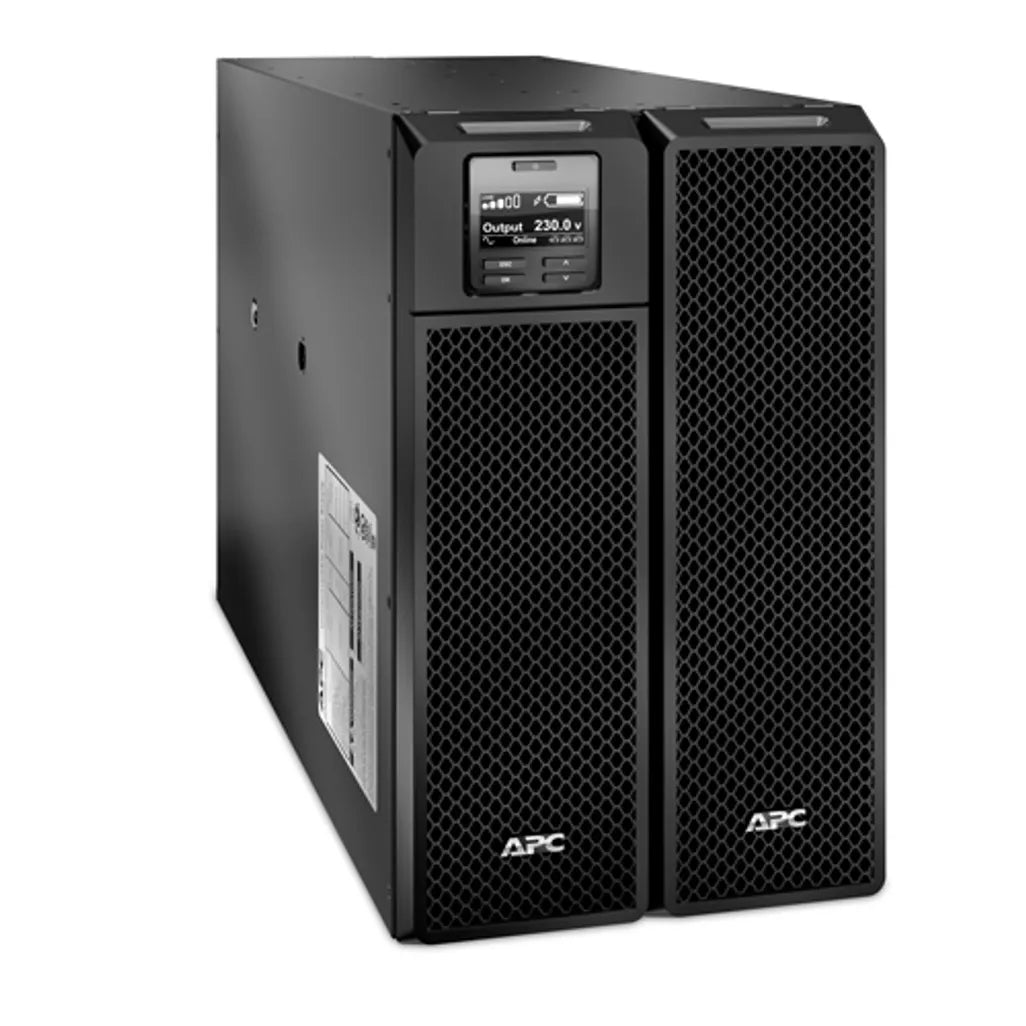

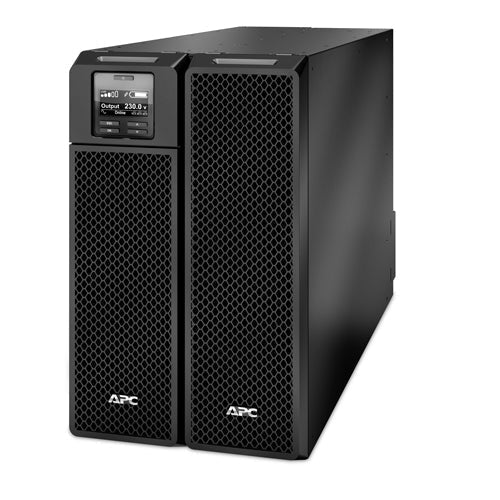

APC Smart UPS SRT 10000VA 230V Online Double Conversion UPS
Pickup available at NexGen Computing
Usually ready in 24 hours
APC SMART-UPS SRT 10000VA 230V is an online, double-conversion uninterruptible power supply designed to protect critical IT equipment from outages, surges, and fluctuations. With a 10,000 VA / 10,000 W rating at 230V, it delivers clean, continuous power to servers, storage, and network devices.
This model supports both tower and rack installations (rack height of 6U). Rack-mount hardware is not included by default; the rail kit SRTRK2 is sold separately.
Key features
- High-capacity online power: 10,000 VA / 10,000 W at 230V for demanding equipment
- Online double-conversion topology: provides clean, isolated power with fast transient response
- Flexible form factor: tower or 6U rack-mount capability
- Remote management: built-in network management card support
- Battery system: VRLA batteries for dependable runtime
- Warranty: 3-year warranty on the UPS; 2-year warranty on batteries
Specifications
- Capacity: 10,000 VA / 10,000 W
- Input/Output voltage: 230 V
- Form factor: Tower or 6U rack-mount
- Rack height: 6U
- Rack-mount hardware: Not included (rail kit SRTRK2 sold separately)
- Network card: Yes
- Battery: Yes
- Battery type: VRLA
- Warranty: 3 years on UPS; 2 years on battery

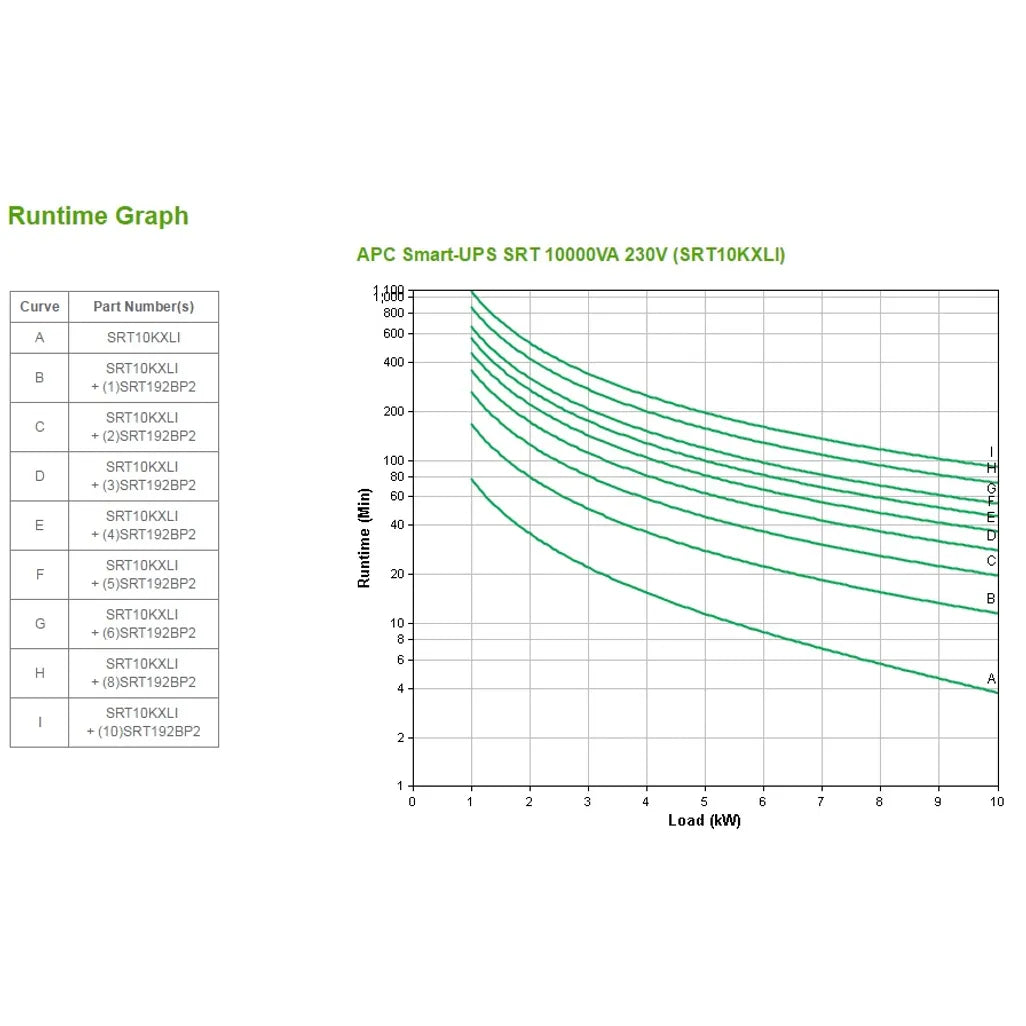

| Typical backup time at full load | 3.8 |
|---|---|
| Battery recharge time | 1.5 |
| Battery life (max) | 5 |
| Typical backup time at half load | 11.5 |
| Number of output IEC jumpers | 3 |
| Audible alarm(s) | Y |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 10 |
| Power plug | Terminal |
| Automatic battery test | Y |
| Interface | RJ-45 10/100 Base-T |
| Temperature sensor | Y |
| Nominal output voltage | 230 |
| Software CD | Y |
| Quick installation guide | Y |
| LED indicators | Y |
| Nominal input voltage | 230 |
| International Protection (IP) code | IP20 |
| SmartSlot | Y |
| Emergency Power Off (EPO) | Y |
| Auto-restart | Y |
| Warranty card | Y |
| Cold start | Y |
| Hot-swap battery | Y |
| Crest factor | 3:1 |
| Surge energy rating | 480 |
| Width | 263 |
| Sustainability certificates | RoHS,ENERGY STAR |
| Non-operating altitude | 0 - 15000 |
| Harmonized System (HS) code | 85078000 |
| Output power capacity | 10 |
| Product colour | Black |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Input operation voltage (max) | 476 |
| Output operation voltage (max) | 240 |
| Output operation voltage (min) | 220 |
| Input frequency | 40/70 |
| Output power | 10000 |
| UPS topology | Double-conversion (Online) |
| Input operation voltage (min) | 100 |
| Waveform | Sine |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
| Output frequency regulation | 50/60 |
| Cables included | USB cable |
| Efficiency | 94.6 |
| Number of output phases | 1 |
| Serial interface type | RJ-45 |
| Serial interface | Y |
| USB port | Y |
| Noise level | 55 |
| Weight | 111820 |
| Depth | 715 |
| Height | 432 |
| Package weight | 126820 |
| Form factor | Rackmount/Tower |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1805 |
| Package height | 461 |
| Package width | 600 |
| Package depth | 1000 |
Product Specification Sheet
| Product Spec Sheet |
 Download |
|---|
