Mimosa

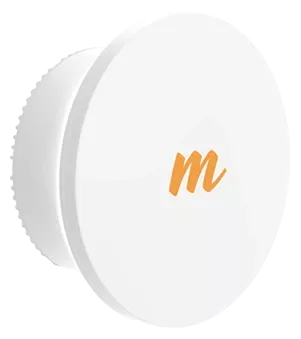

Mimosa B24 24GHz PtP Backhaul Radio, 1.5 Gbps
Pickup available at NexGen Computing
Usually ready in 24 hours
Unleash Gigabit Speeds with the Mimosa B24 Backhaul Radio
Experience a breakthrough in wireless backhaul performance with the Mimosa B24. This point-to-point radio shatters the barriers of price, size, and power efficiency in the 24 GHz spectrum. Delivering up to 1.5 Gbps of aggregate speed, the B24 is engineered for the modern internet, where traffic demands are high and reliability is paramount. It operates in the less congested, unlicensed 24 GHz band, providing a superior and reliable connection compared to the crowded 5 GHz spectrum. Its advanced Auto-TDMA technology dynamically adapts bandwidth for upstream and downstream traffic, ensuring maximum spectrum utilization and delivering an ultra-low latency of less than 1ms.
Compact Design, Powerful Performance
The Mimosa B24 is a fraction of the weight, size, and power of competing solutions, making installation incredibly simple and discreet. Weighing only 2.76 kg (6 lbs) and consuming a mere 19.5W, it's an ideal choice for installations where battery backup is critical. Despite its compact form, the B24 provides reliable links for up to 3 km (2 mi), even in rainy conditions.
Engineered for Flexibility and Reliability
The B24 is built for mission-critical connections, featuring redundant Gigabit Ethernet (RJ45) and fiber (SFP) connections for flexible integration and hot standby. With an IP67 rating, the robust enclosure is designed to withstand harsh outdoor environments, ensuring durability and consistent operation from -40°C to +55°C (-40°F to 131°F). Furthermore, GPS synchronization allows for the co-location of up to eight B24 radios on the same rooftop, each capable of running at 1.5 Gbps without interference.
Versatile Applications
The price-performance leadership of the B24 makes it the perfect solution for a wide range of applications, including:
- Fixed Wireless Broadband Backhaul
- Business and MDU Rooftop Connections
- Campus Building Interconnecting
- Video Surveillance and WiFi Hotspot Distribution
- Smart City Connectivity
Technical Specifications
| Performance | |
| Max Throughput | Up to 1.5 Gbps IP aggregate UL/DL |
| Max PHY Rate | 1.7 Gbps |
| Low Latency | <1 ms |
| Supported MAC | TDMA, TDMA-FD |
| Radio | |
| MIMO & Modulation | 4x4:4 MIMO OFDM up to 256 QAM |
| Bandwidth | Single or dual channel; 20/40/80 MHz channel width |
| Frequency Range | 24.00–24.25 GHz (restricted by country of operation) |
| EIRP | ~33 dBm (FCC/IC) |
| Antenna | |
| Gain | 33 dBi |
| Beamwidth (3dB) | 3.0º |
| Power | |
| Max Power Consumption | 19.5 W |
| System Power Method | 48V DC 802.3at compliant |
| PoE Power Supply | Passive POE compliant, 50V 1.2A (included) |
| Physical | |
| Dimensions | Height: 260 mm (10.24”), Width: 260 mm (10.24”), Depth: 134 mm (5.3”) without bracket |
| Weight | 2.76 kg (6 lbs) including mount |
| Enclosure | Outdoor UV stabilized plastic; Powder-coated aluminum mounting panel |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Precision lightweight aiming pole mount |
| Environmental | |
| Outdoor Ingress Protection | IP67 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Networking | |
| Interfaces | Gigabit Ethernet (RJ45) and gigabit fiber (SFP cage) |
| Security | 128-bit AES PSK with hardware acceleration |
| QoS | Supports 4 pre-configured QoS levels |
| Collocation Synchronization | 1PPS GPS TX/RX synchronization for collocated co-channel radios |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
