Teltonika

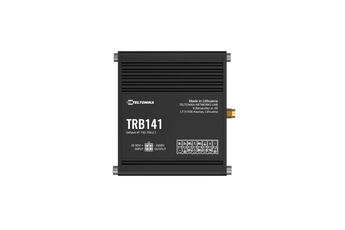

Teltonika CAT 1 IoT Gateway | TRB141
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust and Compact Industrial LTE Cat 1 Gateway for IoT Applications
The Teltonika TRB141 is a small and durable industrial LTE Cat 1 gateway designed for remote monitoring and control in IoT and M2M applications. It offers reliable connectivity with 4G/LTE Cat 1, with fallback to 3G and 2G, ensuring stable performance even in areas with weak coverage. The TRB141 is equipped with a range of inputs and outputs, including digital, analog, and relay, making it highly versatile for various industrial uses. Its compact design and low power consumption make it ideal for integration into space-constrained environments.
Advanced Features for Industrial Environments
Engineered for industrial applications, the TRB141 features a rugged aluminum housing and a wide operating temperature range of -40°C to 75°C. It runs on the secure and customizable RutOS, a Linux-based operating system that provides advanced features like SMS control, a robust firewall, and support for multiple VPN services including OpenVPN and IPsec. The gateway is also compatible with the Teltonika Remote Management System (RMS), allowing for easy remote monitoring and management of your deployed devices. Support for industrial protocols such as Modbus and DNP3 further enhances its suitability for industrial automation and SCADA systems.
What's in the Box?
- TRB141 Gateway
- 9W Power Adapter
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x Hex Key
- I/O connector
- Quick Start Guide
- RMS Flyer
- Packaging box
Technical Specifications
| Hardware | |
| Mobile | 4G/LTE (Cat 1), 3G, 2G |
| CPU | Qualcomm, ARM Cortex A7, 1.2 GHz |
| RAM | 128 MB (50 MB available for user space) |
| Flash Storage | 512 MB (70 MB available for user space) |
| Powering option | 4-pin power socket, 9-30 VDC |
| SIM | 1 x Internal SIM holder (2FF) |
| Antenna connectors | 1 x SMA for mobile |
| Inputs/Outputs | On 16-pin socket: 2 x Digital Inputs (configurable), 1 x Isolated Input, 1 x Analog Input (4-20mA capable), 2 x Relay Outputs (latching and non-latching) |
| Other | 1 x Micro USB slave |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) | 74.5 x 25 x 64.4 mm |
| Weight | 136 g |
| Software | |
| Operating system | RutOS (Linux OS with Yocto SDK) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
