Acconet

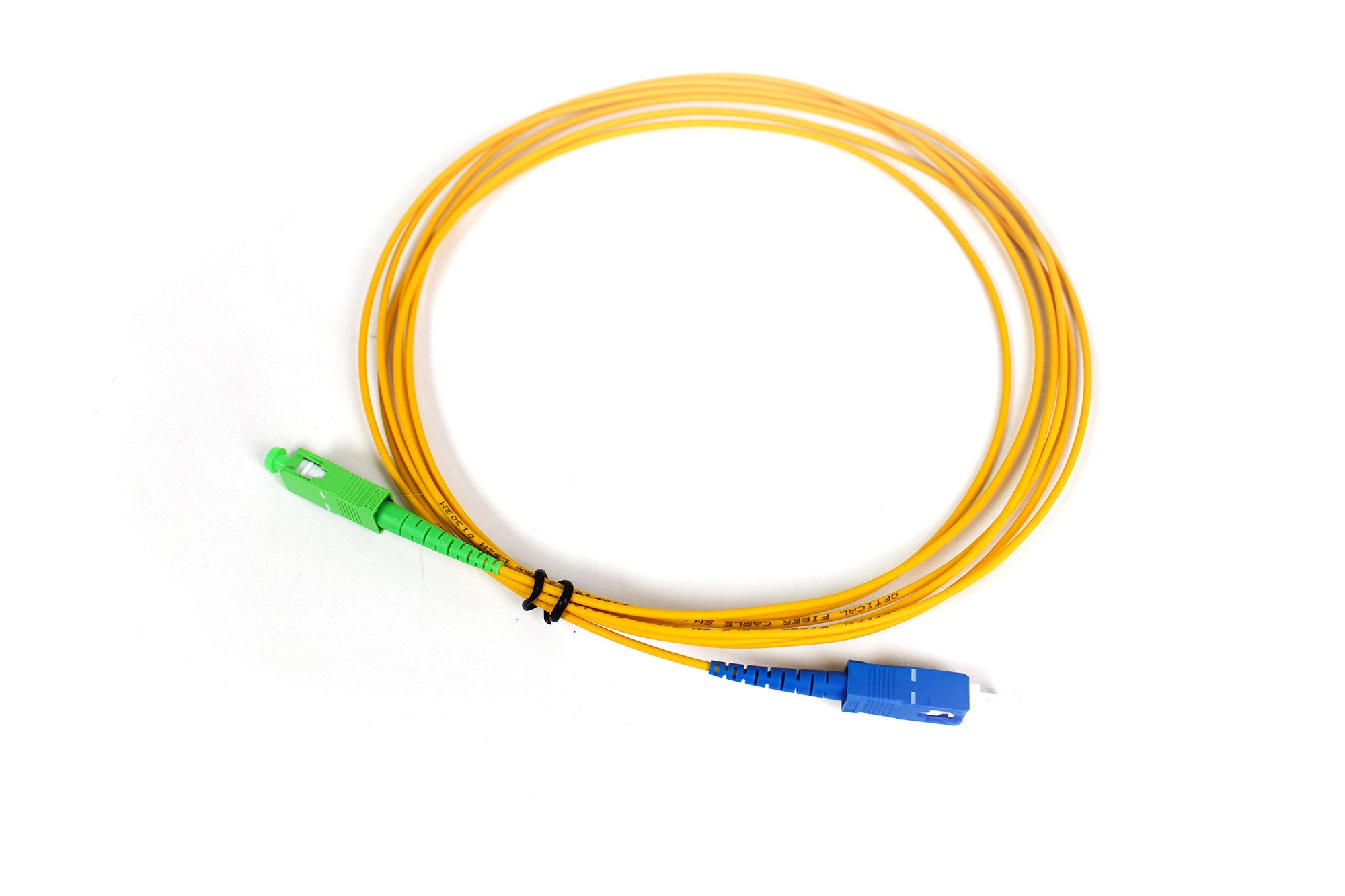

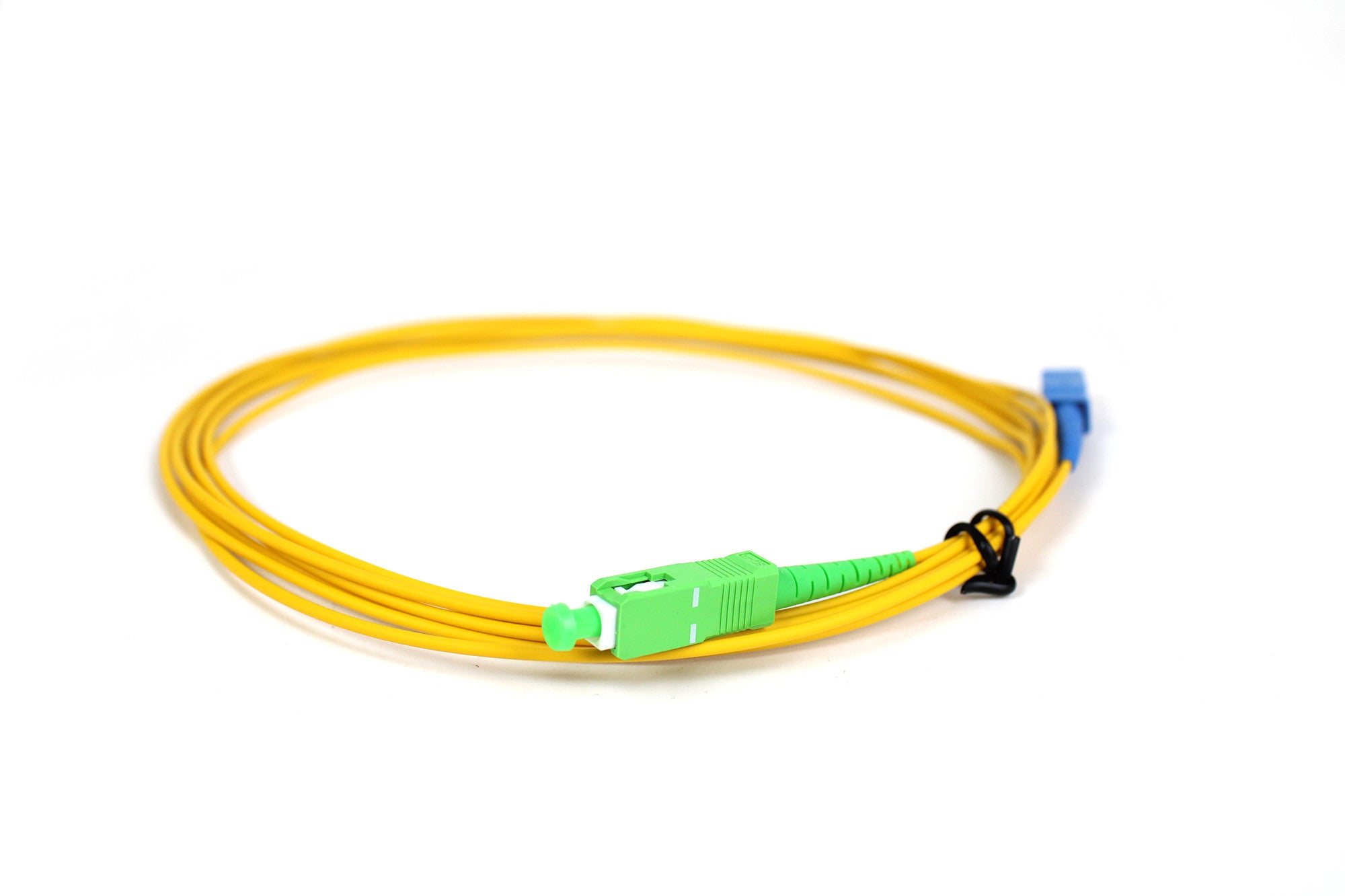

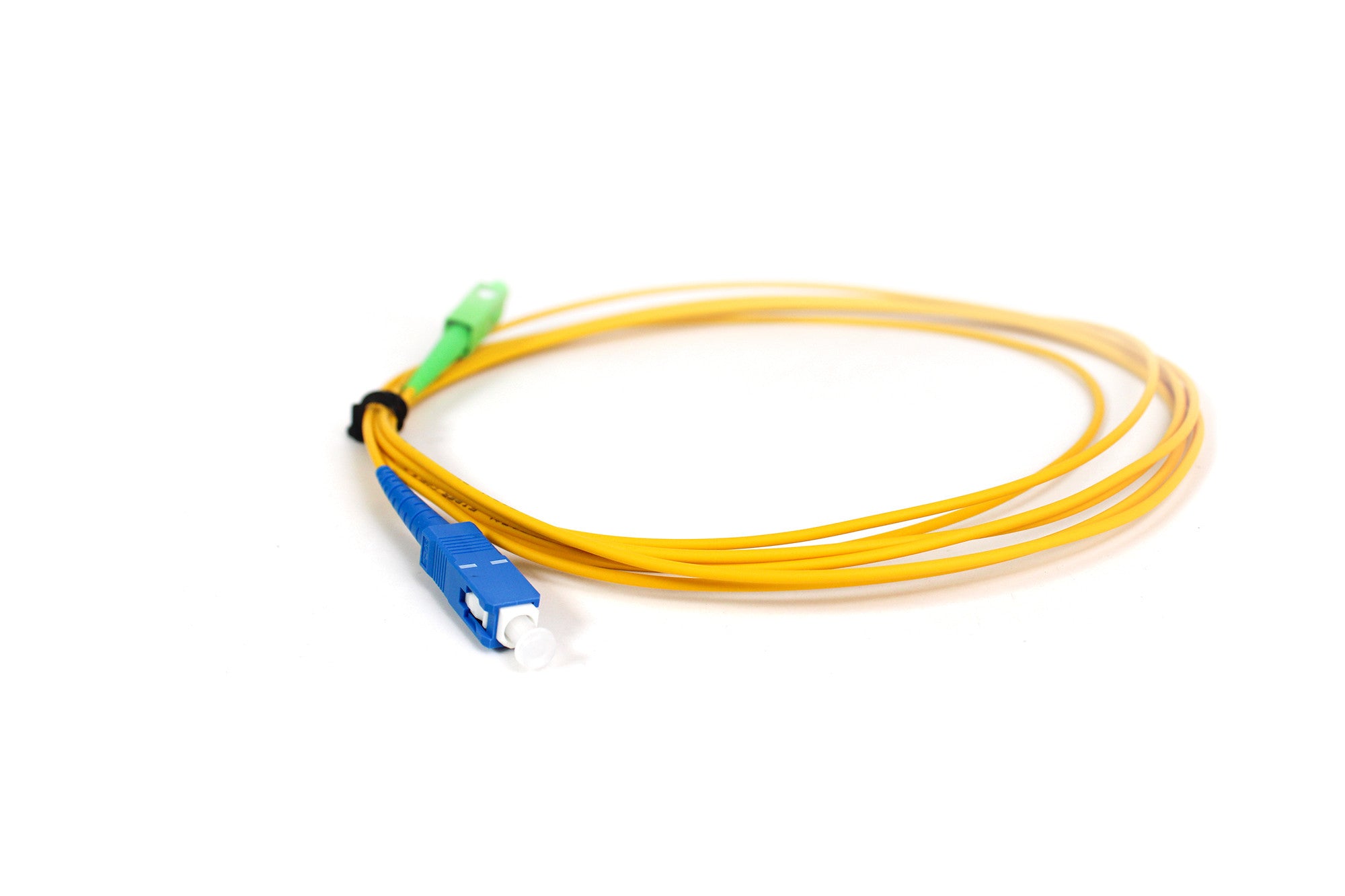

Acconet 3M SC/UPC to SC/APC Single Mode Simplex Fiber Optic Patch Cable
Pickup available at NexGen Computing
Usually ready in 24 hours
Precision-Engineered for Critical Connections
Experience unparalleled signal integrity with the Acconet 3-Meter Single Mode Fiber Optic Patch Lead. Designed for high-performance applications, this cable provides a robust and reliable link between your networking equipment. It features a specialized connection with an SC/UPC connector on one end and an SC/APC connector on the other, making it the perfect solution for integrating diverse systems, especially in FTTx (Fiber to the x), Passive Optical Networks (PON), and CATV networks where minimizing back reflection is critical.
Understanding the Connectors: SC/UPC to SC/APC
This cable is not a standard patch lead; it's a highly specific tool for advanced networking. Here’s what the connectors mean:
- SC/UPC (Subscriber Connector/Ultra Physical Contact): This connector end has a ferrule that is polished with no angle. The 'Ultra' polish ensures a high-quality connection with low insertion loss, ideal for digital data transmission.
- SC/APC (Subscriber Connector/Angled Physical Contact): This end features a ferrule polished at an 8-degree angle. This angle dramatically reduces the amount of light reflected back towards the source, a critical requirement for analog signals (like video) and systems using high-power lasers. The use of an APC connector provides the superior return loss performance needed for the most sensitive applications.
Built for Performance and Safety
The core of this cable is a G.652D single mode fiber, which is optimized for long-distance, high-bandwidth data transport. It's ideal for connecting 1G/10G and even faster Ethernet networks. The simplex design means it contains a single strand of fiber, perfect for unidirectional data paths. Encasing the fiber is a durable 2.0mm LSZH (Low Smoke Zero Halogen) jacket, which enhances safety by emitting minimal smoke and no toxic halogen compounds when exposed to fire.
Technical Specifications
| Attribute | Specification |
| Brand | Acconet |
| SKU | AC-FIB-PL-SC-3M-UAS |
| Connector A | SC/UPC (Ultra Physical Contact) |
| Connector B | SC/APC (Angled Physical Contact) |
| Fiber Mode | Single Mode (OS2) |
| Fiber Standard | G.652D |
| Core / Cladding Diameter | 9/125µm |
| Fiber Count | Simplex |
| Cable Length | 3 Meters |
| Cable Diameter | 2.0mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Yellow |
| Insertion Loss | ≤0.3 dB |
| Return Loss | UPC: ≥50dB, APC: ≥60dB |
| Operating Temperature | -20°C to +60°C |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
