AJAX
AJAX WallSwitch Power Relay
Pickup available at NexGen Computing
Usually ready in 24 hours
Effortless Control and Intelligent Automation for Your Home or Business

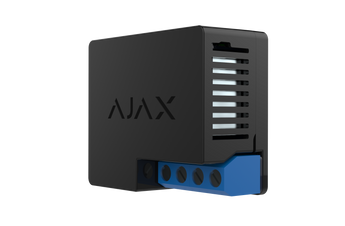

The AJAX WallSwitch is a smart power relay that allows you to remotely control your 110/230V appliances and monitor their energy consumption. This compact device installs discreetly into a standard wall plate, giving you the power to automate lighting, gates, heating, and more, all from the convenience of the Ajax app. With a robust communication range of up to 1,000 meters in open space, you can rely on a stable connection to your Ajax hub.
Key Features:
- Remote Appliance Control: Switch your devices on and off from anywhere using the intuitive Ajax mobile application.
- Energy Consumption Monitoring: Keep track of the power usage of connected appliances to optimize energy efficiency and save on electricity bills.
- Advanced Protection: The WallSwitch safeguards your appliances from overcurrent, voltage surges, and overheating, ensuring their longevity.
- Versatile Automation Scenarios: Create custom automation scripts that trigger actions based on a schedule, security system status (arming/disarming), alarms, or even environmental factors like temperature and humidity when used with other Ajax devices.
- Flexible Operation Modes: Choose between bistable (on/off) and pulse modes to suit a wide range of applications, from continuous power supply to controlling gates and electric locks.
- Seamless Integration: The WallSwitch is compatible with all Ajax hubs and range extenders, making it easy to incorporate into your existing security and smart home ecosystem.
- Compact and Easy to Install: Its miniature size (39 x 33 x 18 mm) allows for simple installation within a recessed wall plate, an electrical appliance's body, or an electrical panel.
Technical Specifications
| Classification | Radio channel relay unit |
| Device Type | Wireless, Remote-controlled |
| Installation Method | Into wall plate |
| Compatibility | Operates with all Ajax hubs and range extenders |
| Actuating Element | Relay |
| Relay Service Life | 200,000 switchings |
| Power Supply | 110-230 V ± 10%, 50/60 Hz |
| Voltage Protection (230 V) | Max: 253 V, Min: 184 V |
| Voltage Protection (110 V) | Max: 132 V, Min: 92 V |
| Maximum Load Current | 13 A |
| Output Power (Resistive Load) | Up to 3.0 kW at 230 V, Up to 1.5 kW at 110 V |
| Maximum Current Protection | Yes, >11 A (enabled), >13 A (disabled) |
| Maximum Temperature Protection | Over 65°C (149°F) |
| Electric Power Meter Function | Yes |
| Operation Modes | Bistable, Pulse |
| Adjustable Pulse Duration | 1 to 255 seconds |
| Communication Technology | Jeweller radio technology |
| Radio Communication Range | Up to 1,000 m (in an open space) |
| Operating Temperature Range | 0°C to +64°C (32°F to 147°F) |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Dimensions | 39 x 33 x 18 mm |
| Weight | 30 g (1.06 oz) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
