APC

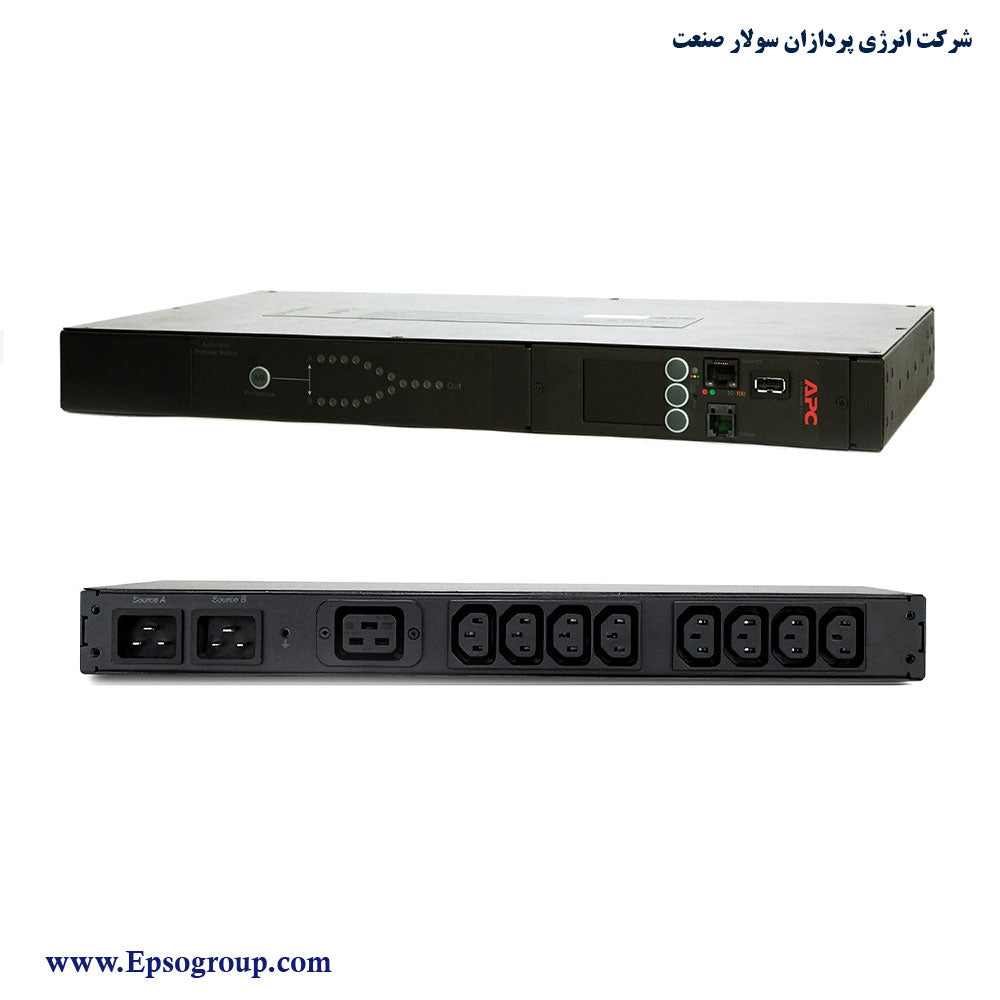

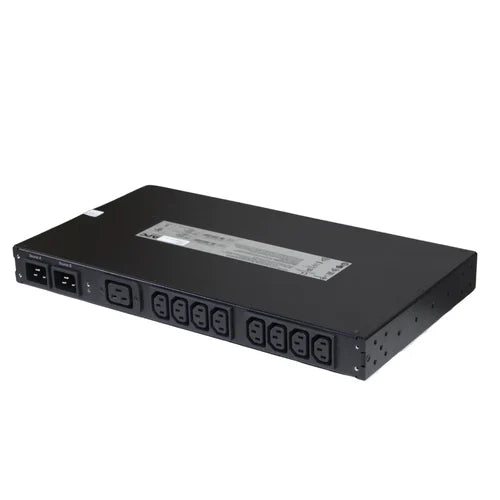

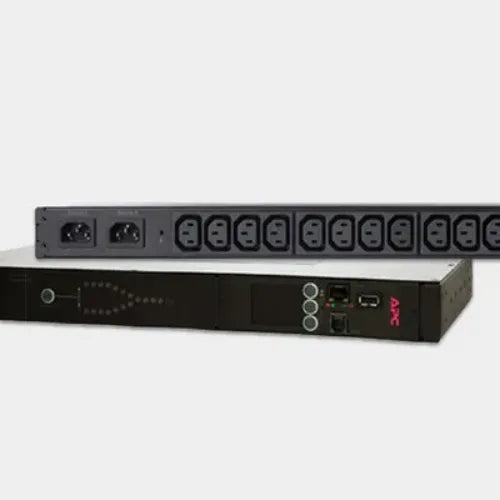

APC AP4423A NetShelter 1U Rackmount Automatic Transfer Switch
Pickup available at NexGen Computing
Usually ready in 24 hours
Ensure Seamless Power Redundancy for Your Critical IT Equipment
The APC NetShelter Rack Automatic Transfer Switch (ATS) is a high-availability switch that provides redundant power to single-corded equipment. This 1U rack-mountable ATS ensures your critical loads receive continuous power from one of two independent AC sources. If the primary power source becomes unavailable, the AP4423A automatically transfers power to the secondary source seamlessly, with a transfer time of less than 10ms, ensuring your connected equipment continues to operate without interruption.
Key Features and Benefits
- Dual Input Power Cords: Enhances uptime for critical loads by providing power redundancy.
- Seamless Switching: With a transfer time of under 10ms, the switch between power sources is invisible to the connected equipment.

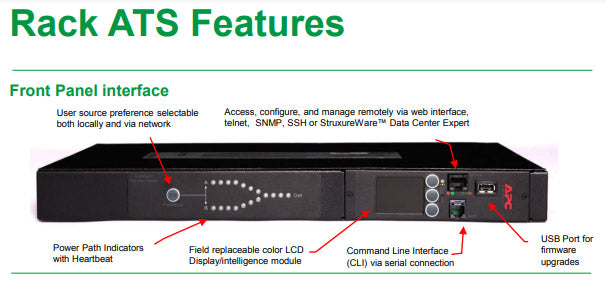

- Remote Management: Offers robust remote management capabilities via Web UI, CLI, SNMP, or EcoStruxure IT, allowing you to manage the ATS from anywhere.
- Field-replaceable Network Management Card (NMC): Minimizes downtime with a field-replaceable NMC for enhanced serviceability.
- Environmental Monitoring: Efficiently monitor temperature and humidity to ensure optimal operating conditions for your IT equipment.
Designed for Reliability and Performance

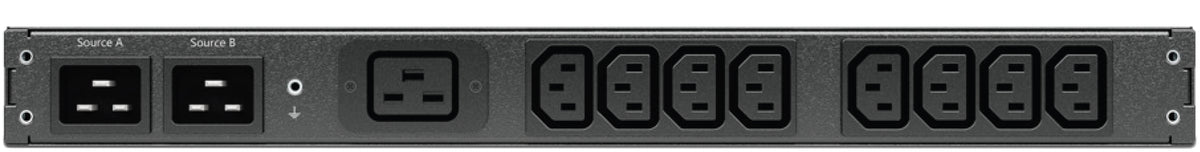

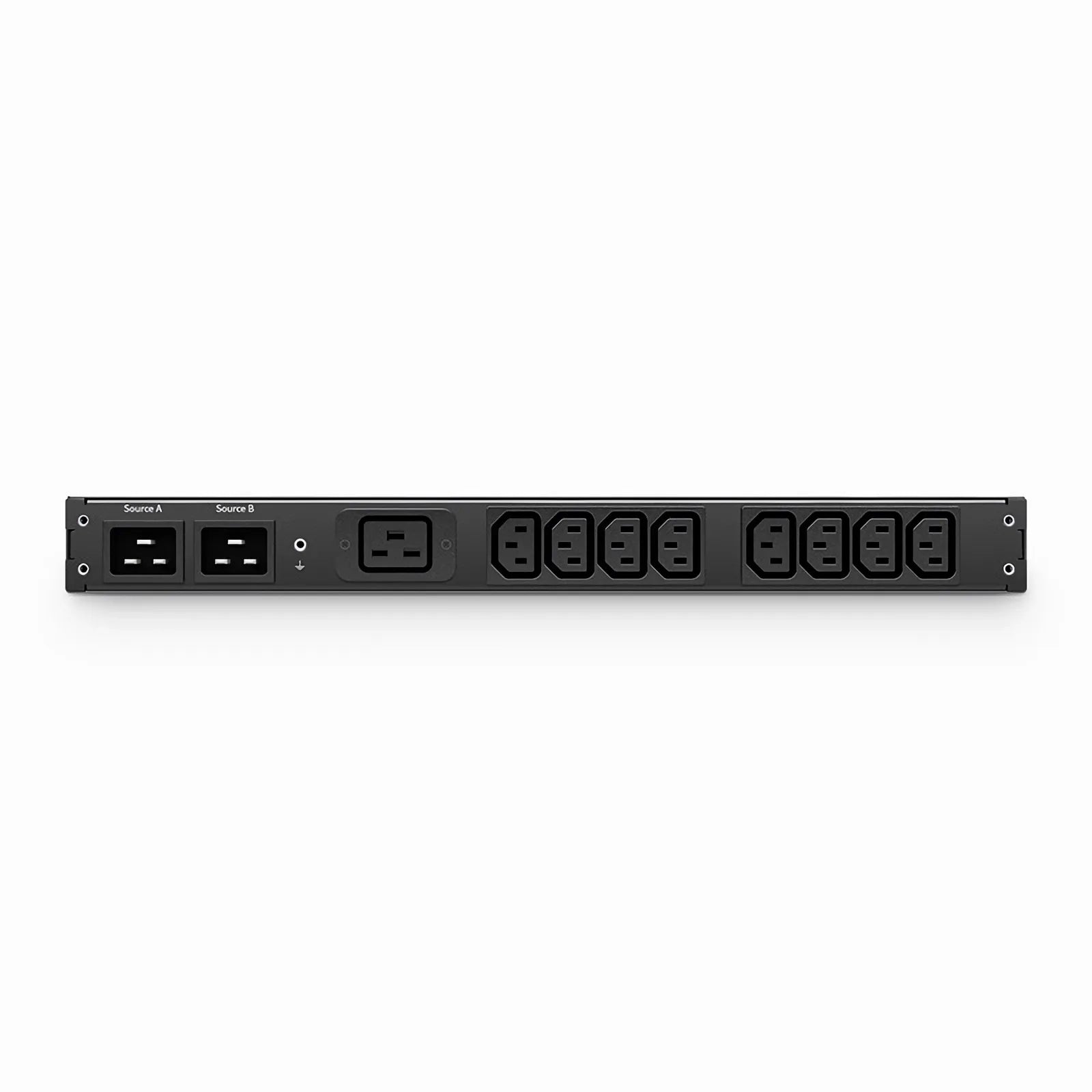

The APC AP4423A is a single-phase, 1U Rack ATS with a 16A rated current and 230V rated voltage, delivering a load capacity of 3700VA. It features two IEC C20 inlets and provides power to a variety of devices with its eight IEC C13 and one IEC C19 outlets. This fifth-generation ATS is upgraded with an APC NMC3 for enhanced security and network port sharing. Users can access and configure the Rack ATS through a secure Web UI, SNMP, and CLI, and it is fully compatible with EcoStruxure IT.
Technical Specifications
| Brand | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Type | Automatic Transfer Switch |
| Form Factor | Rack-mountable, 1U |
| Input Voltage | 230 V AC |
| Input Frequency | 50/60 Hz |
| Input Connections | 2 x IEC 60320 C20 |
| Output Voltage | 230 V AC |
| Output Connections | 8 x IEC 60320 C13, 1 x IEC 60320 C19 |
| Maximum Total Current Draw | 16 A |
| Load Capacity | 3700 VA |
| Dimensions (H x W x D) | 1.73 x 17.01 x 9.29 in (4.4 x 43.2 x 23.6 cm) |
| Weight | 8.25 lbs (3.74 kg) |
| Operating Temperature | -5 to 45 °C |
| Operating Relative Humidity | 5 - 95% |
| Operating Altitude | 0...10000 ft |
| Certifications | CE, cUL Listed, EN 55022 Class A, FCC Part 15 Class A, UL Listed |
| Warranty | 2 Year |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
