BDCOM

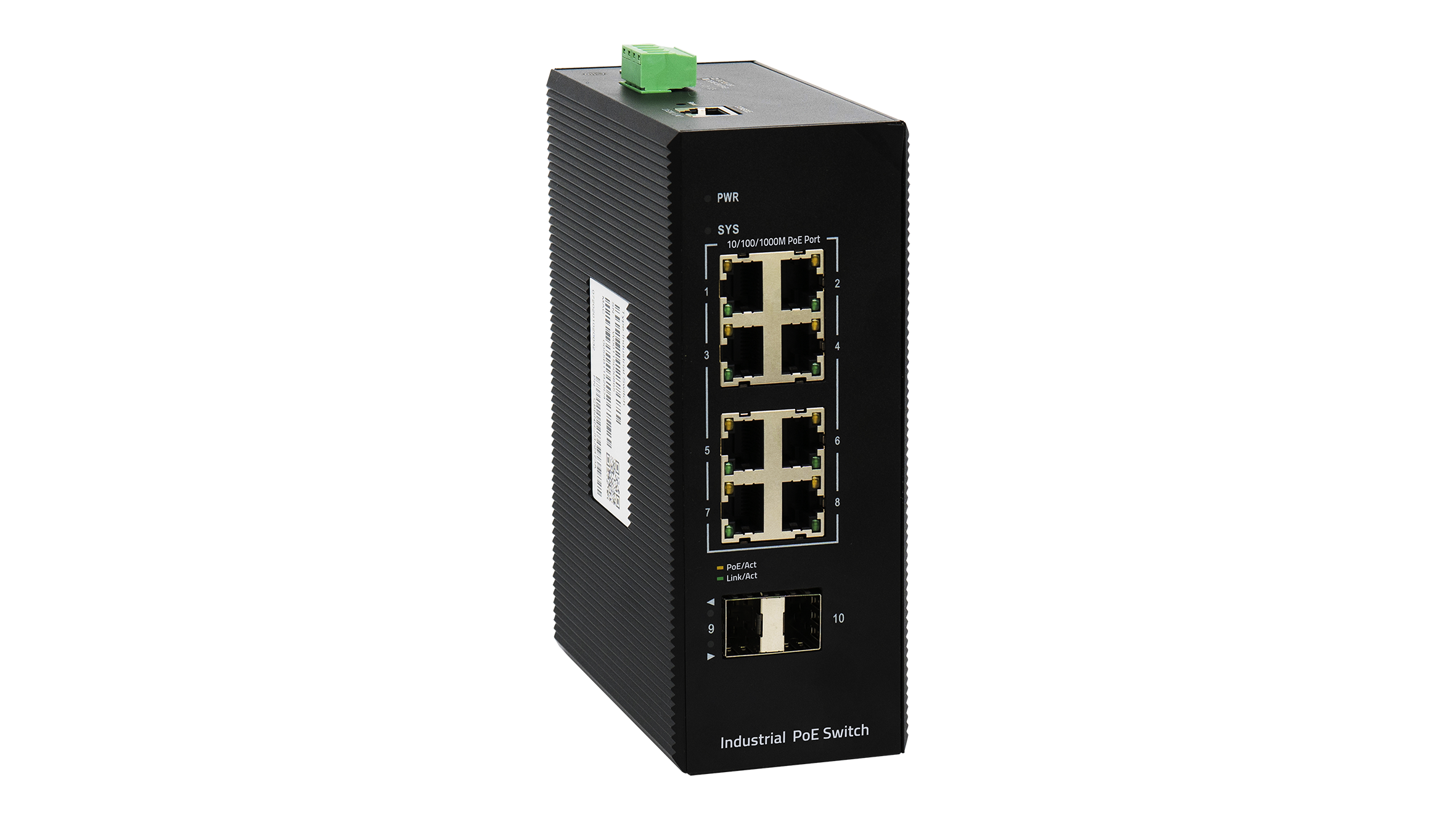

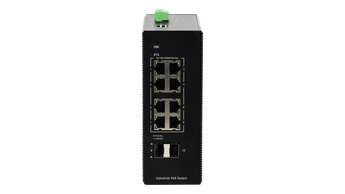

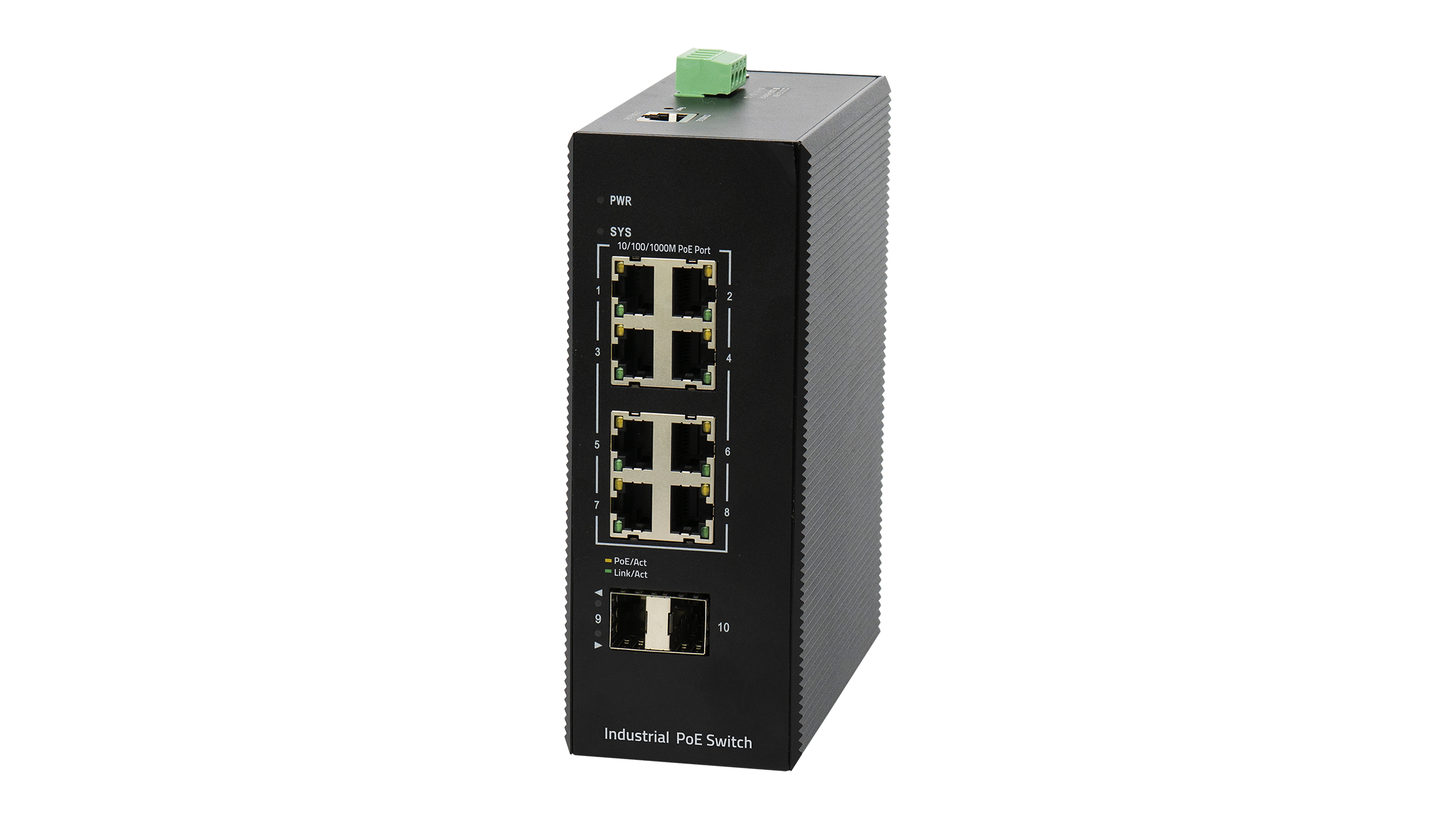

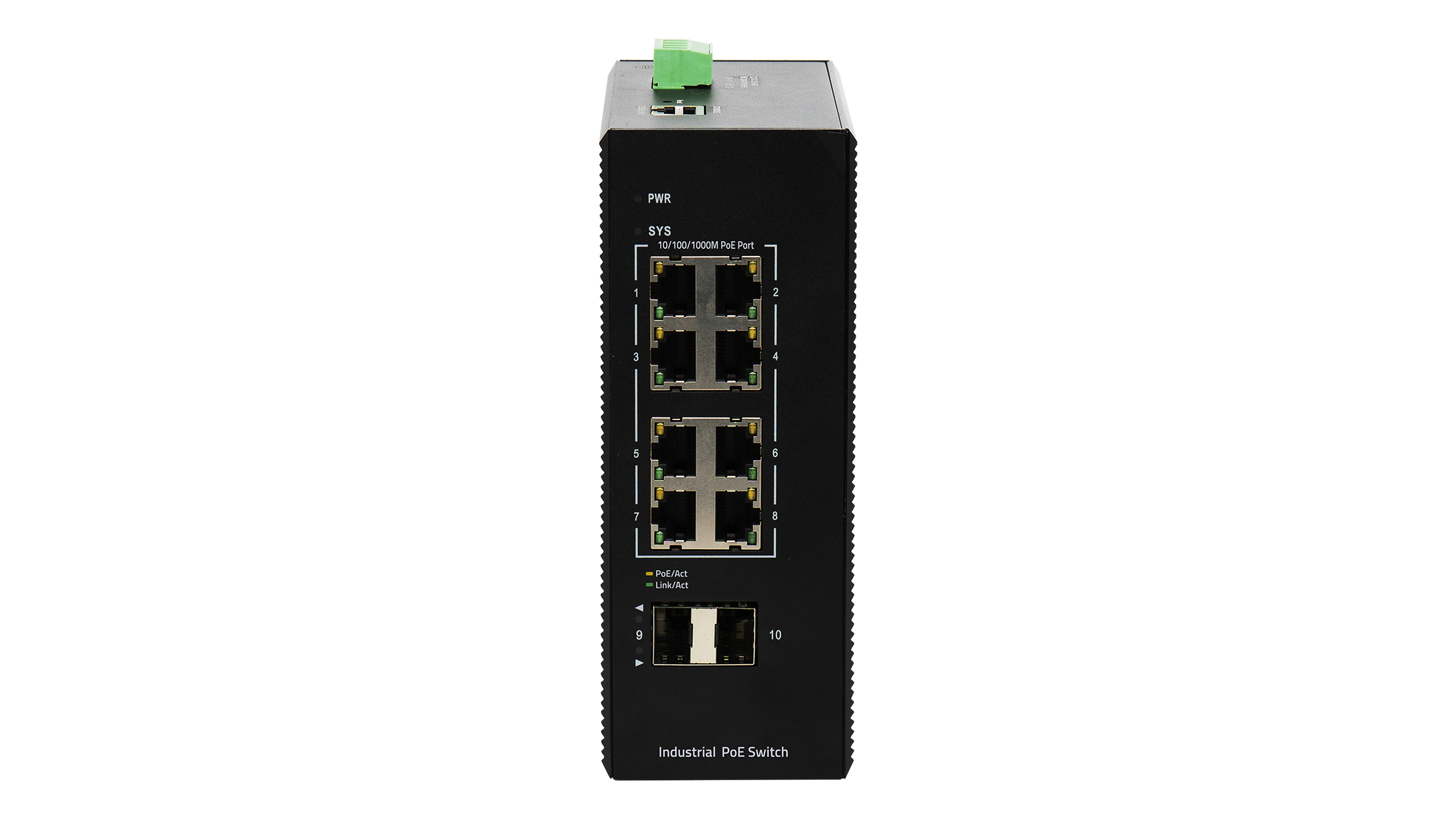

BDCOM 10-Port Managed Gigabit Industrial PoE+ Switch with 2 SFP Uplinks
Pickup available at NexGen Computing
Usually ready in 24 hours
Robust, High-Performance Networking for Harsh Environments
Introducing the BDCOM 10-Port Managed Gigabit Industrial PoE+ Switch, a powerhouse of connectivity designed to thrive in the most demanding industrial settings. This switch provides a reliable and resilient networking solution for critical applications. With 8 Gigabit PoE+ ports, a substantial 240W power budget, and 2 Gigabit SFP uplinks for fiber connectivity, it's engineered for high-performance and flexible network configurations. Its rugged IP40-rated metal housing, wide operating temperature range, and 6kV lightning protection ensure uninterrupted operation in factories, outdoor installations, and other challenging environments.
Advanced Management and Redundancy
This fully managed switch offers advanced Layer 2 and Layer 3-lite features, giving you granular control over your network traffic. It supports protocols like STP/EAPS/ERPS for enhanced network reliability and rapid link recovery. A key feature for industrial applications is the dual redundant power input, which ensures continuous operation even if one power source fails. The fanless design promotes silent operation and reduces the number of moving parts that could fail. Easy DIN-rail mounting allows for quick and secure installation in control cabinets and enclosures.
Power Over Ethernet for Simplified Deployments
With a total PoE budget of 240W, this switch can power a wide range of devices such as IP cameras, VoIP phones, and wireless access points directly over the Ethernet cable, eliminating the need for separate power supplies. This simplifies installation, reduces clutter, and lowers overall deployment costs, making it an ideal choice for expanding your network with powered devices in locations where power outlets are scarce.
Detailed Technical Specifications
| Feature | Specification |
| Model | IES200-V25-2S8P |
| Ports | 8 x 10/100/1000Base-T PoE+ Ports 2 x 1000Base-X SFP Ports |
| Switching Capacity | 56Gbps |
| Forwarding Mode | Store-and-forward |
| MAC Address Table | 8K |
| Jumbo Frame | 9K |
| PoE Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Total PoE Budget | 240W |
| Management | L3-lite Management |
| Power Input | Dual Redundant DC 48-55V |
| Power Consumption | No-load: <12W, Full-load (with PoE): 260W |
| Operating Temperature | -40°C to 75°C |
| Enclosure | IP40 Protection |
| Lightning Protection | 6kV |

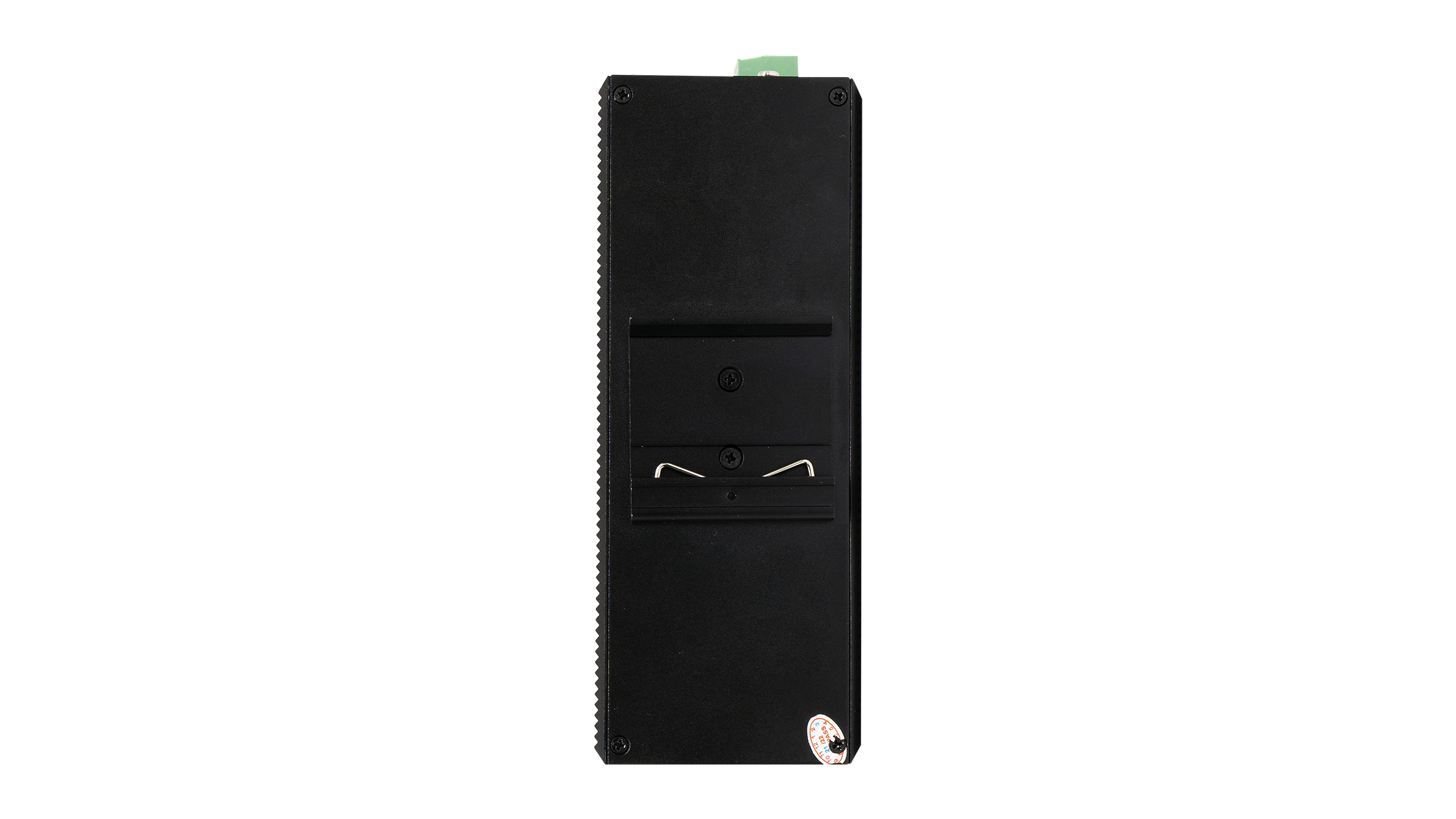

| Installation | DIN-rail mounting |
| Dimensions | 138 x 108 x 44 mm |
| Weight | 0.7kg |
| Warranty | 5 Years |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
