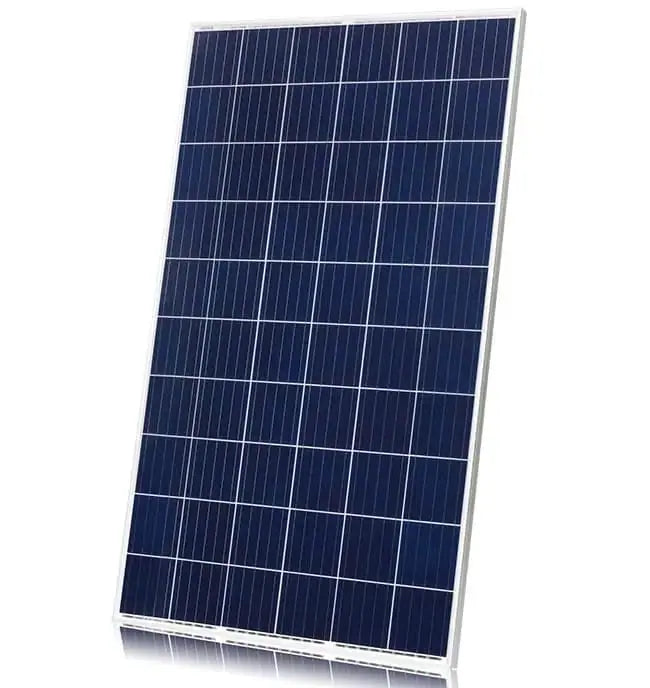

Power Solutions 160W Monocrystalline Solar Panel
Pickup available at NexGen Computing
Usually ready in 24 hours
Harness Clean, Reliable Energy with the Power Solutions 160W Solar Panel
Unlock energy independence with the Power Solutions 160W Monocrystalline Solar Panel, engineered for high efficiency and lasting durability. This CNBM module is the ideal choice for a wide range of on-grid and off-grid applications, from residential rooftops to remote power systems. Its advanced design delivers an excellent performance of power per square foot, ensuring you get the most out of your solar array. Featuring high-grade monocrystalline cells, this panel achieves an impressive 20% cell efficiency, providing optimal energy conversion even in low-light conditions.
Built to Withstand the Elements
Engineered for longevity, the panel is constructed with a robust anodized aluminum alloy frame and 3.2mm tempered, anti-reflective glass. This durable build is certified to withstand severe weather, including high wind loads (2400Pa) and heavy snow loads (5400Pa). The IP68-rated junction box ensures protection against dust and water ingress, guaranteeing reliable performance for years to come. Additionally, the panel exhibits high resistance to salt and ammonia, making it suitable for various environments.
Advanced Technology for Superior Performance
This module utilizes leading manufacturing technology, including 100% EL inspection to ensure a defect-free product. The cells are binned by current to improve overall module performance and reliability. With a positive power tolerance of 0 to +5W, you can be confident you are receiving the rated power and more. The panel comes ready for easy installation with pre-drilled holes and MC4 compatible connectors.
Comprehensive Specifications
| Electrical Characteristics (STC) | |
| Rated Maximum Power (Pmax) | 160 W |
| Cell Efficiency | 20% |
| Maximum Power Voltage (Vmp) | 21.02 V |
| Maximum Power Current (Imp) | 7.62 A |
| Open Circuit Voltage (Voc) | 24.73 V |
| Short Circuit Current (Isc) | 8.04 A |
| Power Tolerance | 0~+5W |
| Standard Test Condition | Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5 |
| Mechanical Specifications | |
| Solar Cell Type | Monocrystalline (182mm Mono Multi-Cut) |
| Number of Cells | 64 (4 x 16) |
| Dimensions (L x W x H) | 960 x 760 x 28 mm |
| Weight | 9.0 kg |
| Front Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Output Cables | 4.0mm², Length: 300mm (+) & (-) |
| Connectors | MC4 Compatible |
| Operating Conditions | |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -45°C to +80°C |
| Max. Series Fuse Rating | 25 A |
| Maximum Static Load, Front | 5400 Pa |
| Maximum Static Load, Back | 2400 Pa |
| Warranty | |
| Product Warranty | 10 Years |
| Linear Power Warranty | 10 years at 90% of min. rated output, 25 years at 80% |
Manufacturer Technical Data
| Product Spec Sheet | Not available for this product |
|---|
