Edimax
Edimax Pro AP Controller
Pickup available at NexGen Computing
Usually ready in 24 hours
Centralize and Simplify Your Wireless Network Management

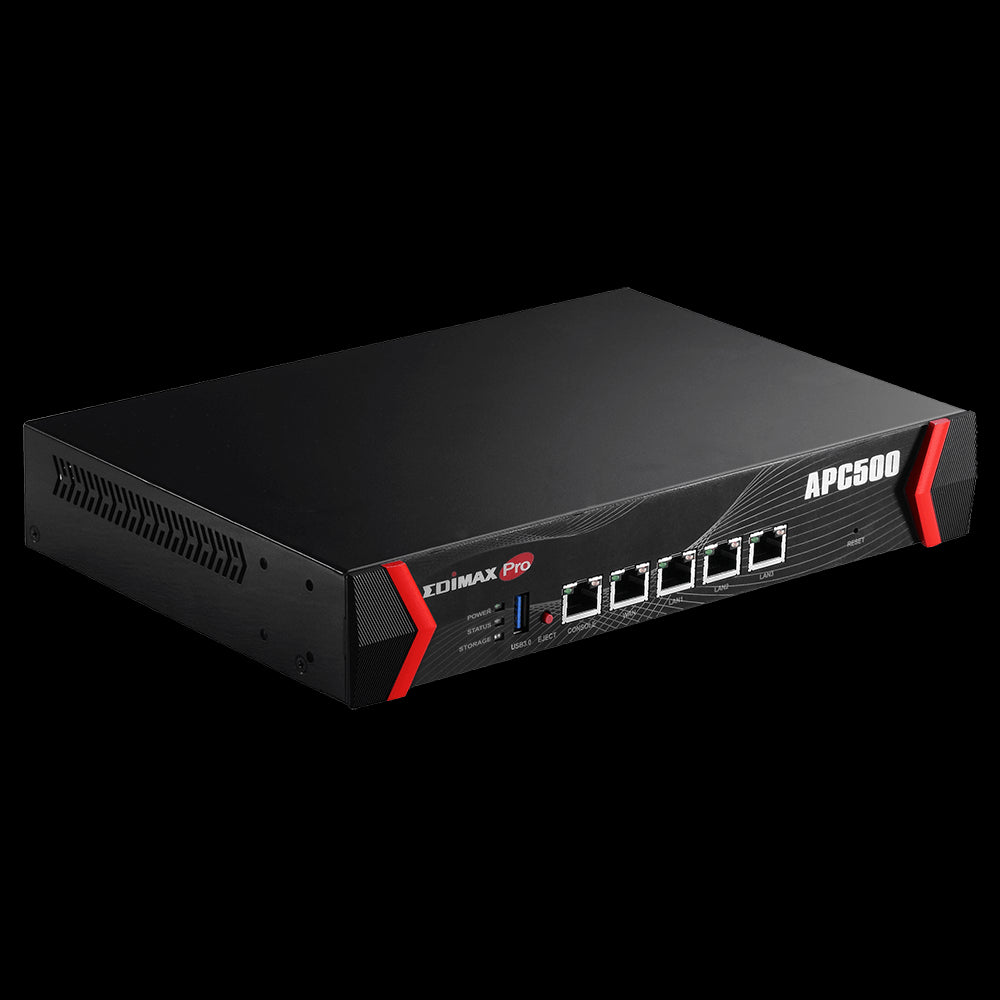

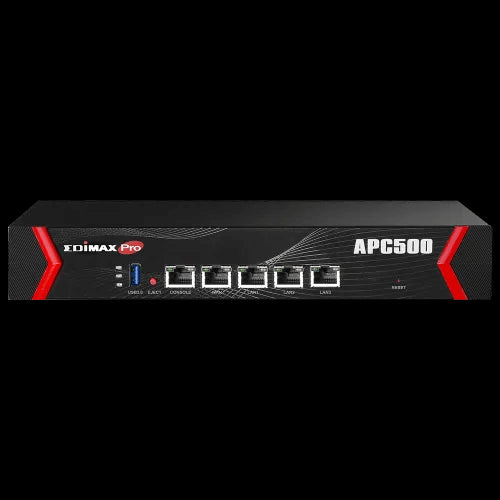

The Edimax Pro APC500 is a comprehensive wireless AP controller designed for mid-sized enterprises, educational institutions, and hospitality environments. It offers a scalable and cost-effective solution for managing your entire wireless network from a single, intuitive web-based interface. Effortlessly deploy, configure, and monitor up to 128 Edimax Pro access points, ensuring a high-performance and reliable Wi-Fi experience for your users.
Scalable Architecture for Growing Demands
As your business and network needs expand, the APC500 grows with you. Its modular architecture allows for the seamless integration of additional access points into your existing system. This scalability makes it an ideal investment for organizations anticipating future growth and increased Wi-Fi dependence.
Robust Centralized and Remote Management
Gain complete control over your wireless network through a user-friendly, web-based interface. The dashboard provides a comprehensive overview, including a map view, traffic statistics, and a wireless client list for network-wide remote administration. Manage group AP settings, RADIUS configurations, WLAN groups, access control, and firmware upgrades from a centralized location, minimizing downtime and optimizing network performance.
Enhanced Security and Guest Access
The APC500 features a built-in RADIUS server (AAA) to support authentication and authorization for up to 512 user accounts, ensuring a secure network environment. It also provides a secure solution for managing guest network access with various user authority levels. Create a captive portal for guest authentication and set independent network settings for bandwidth, IP filtering, and usage duration.
Intuitive Planning and Deployment
Visualize and plan your AP deployment with the integrated zone plan feature, which utilizes Google Maps. This allows you to simulate and determine the most effective strategic locations for your access points, ensuring optimal wireless coverage.
| Feature | Specification |
|---|---|
| Hardware | |
| WAN Port | 1 x Gigabit |
| LAN Ports | 3 x Gigabit |
| USB Port | 1 x USB 3.0 |
| Console Port | RJ45 |
| Flash Memory | 8GB for log storage |
| Power Supply | DC 12V, 1.5A |
| Power Consumption | 8W |
| Mounting | Rack/Wall/Desk-mount |
| Dimensions (W x D x H) | 265 x 178 x 44 mm |
| Weight | 1030g |
| Management | |
| Managed APs | Up to 128 Edimax Pro APs |
| AP Management | L2/L3 Management, Batch Setup & Configuration, Group Firmware Upgrade & Restart |
| Guest Access | Captive Portal (Internal/External), Guest Accounts |
| Authentication | Built-in RADIUS (AAA) for up to 512 user accounts |
| Environmental | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 90% Max (Non-condensing) |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
