Grandstream
Grandstream SIP ATA FXO/ FXS Gateway | HT-813
Pickup available at NexGen Computing
Usually ready in 24 hours

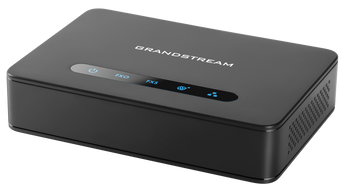

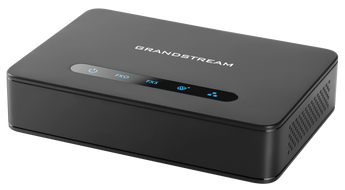

Bridge Your Analog and VoIP Worlds with the Grandstream HT813
The Grandstream HT813 is a powerful and compact hybrid analog telephone adapter (ATA) designed to seamlessly integrate your traditional analog telephone devices with a modern VoIP network. This versatile gateway features one analog telephone FXS port and one PSTN line FXO port, enabling you to leverage the benefits of VoIP while maintaining a connection to your existing landline. The HT813 is the perfect solution for small businesses and home users looking to upgrade to a flexible and cost-effective communication system.
Key Features and Benefits
- Hybrid Connectivity: Equipped with both an FXS port to connect an analog phone or fax machine and an FXO port for a PSTN line, the HT813 offers a unique and flexible communication solution.
- Lifeline Support: In the event of a power outage, the HT813 provides lifeline support by automatically relaying the FXS port to the FXO port, ensuring you can still make and receive calls on your traditional landline.
- Advanced VoIP Functionality: Supports 2 SIP profiles, 3-way voice conferencing per port, and a failover SIP server that automatically switches to a secondary server if the main one loses connection.
- Reliable Fax over IP: Features support for the T.38 Fax protocol, ensuring reliable and efficient faxing over your IP network.
- Robust Security: Your calls and accounts are protected with strong AES encryption and a unique security certificate per unit.
- Easy Provisioning and Management: Offers automated and secure provisioning options using TR-069, simplifying deployment and management.
Technical Specifications
| Interfaces | One (1) RJ11 FXS port, One (1) RJ11 FXO PSTN line port with lifeline support |
| Network Interface | Two (2) 10/100Mbps ports (RJ45) with integrated NAT router |
| LED Indicators | POWER, LAN, WAN, FXS, FXO |
| Factory Reset Button | Yes |
| Telephony Features | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
| Voice Codecs | G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation |
| Fax over IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
| Short/Long Haul Ring Load | 3 REN: Up to 1km on 24 AWG |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal/Wink, Loop Current |
| Network Protocols | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069 |
| QoS | Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) |
| DTMF Method | In-audio, RFC2833 and/or SIP INFO |
| Provisioning and Control | HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption |
| Security | SRTP, TLS/SIPS/HTTPS |
| Physical | Universal Power Supply: Input: 100-240VAC, 50-60Hz, Output: 12V/0.5A |
| Environmental | Operating: 32º – 104ºF or 0º – 40ºC, Storage: 14º – 140ºF or -10º – 60ºC, Humidity: 10 – 90% Non-condensing |
| Dimensions and Weight | 25mm x 115mm x 75mm (H x W x D) |
| Compliance | FCC, CE, RCM |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
