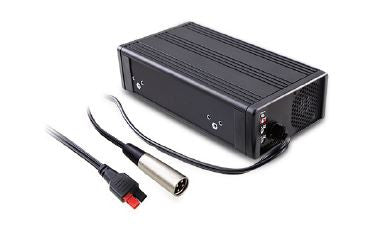

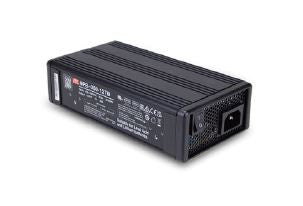

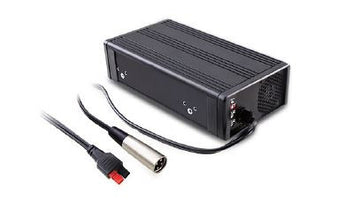

Mean Well NPB-360-12TB 360W 12V 20A Battery Charger
Pickup available at NexGen Computing
Usually ready in 24 hours
High-Efficiency, Intelligent Charging for Demanding Applications
Experience versatile and reliable power management with the Mean Well NPB-360-12TB, a 360W intelligent battery charger engineered for performance. This unit is designed to work with a wide range of battery types, including both lead-acid (Flooded, Gel, AGM) and lithium-ion (Li-ion, LiFePO4, Li-Mn) batteries. Its universal AC input (90~264VAC) and built-in active PFC function ensure stable and efficient operation across various power grids.
Advanced & Adjustable Charging Control
Gain complete control over your charging protocol. The NPB-360-12TB features a user-selectable 2 or 3-stage charging curve, easily adjusted via a DIP switch to perfectly match your battery's requirements. The output voltage and current are also widely adjustable through a built-in VR, allowing you to fine-tune the charging voltage from 10.5V to 15.2V and the charging current from 50% to 100% of the rated 20A. This adaptability makes it an ideal solution for everything from radio system backups and electric scooters to surveillance systems and heavy-duty vehicles.
Robust, Safe, and Built to Last
Engineered for safety and longevity, this charger operates in a wide temperature range from -30°C to +70°C. It is equipped with a comprehensive suite of protections, including short circuit, over voltage, over temperature, and battery reverse polarity protection. A smart fan control system ensures the fan only activates when needed, reducing noise and power consumption. A clear front-panel LED indicator provides at-a-glance charging status, and the unit complies with dual UL/EN62368-1 and EN60335-1/2-29 certifications for safety.
| Output Specifications | |
| DC Voltage (Default) | 14.4V |
| Charging Voltage Range | 10.5 ~ 15.2V (Adjustable via VR) |
| Rated Current | 20A |
| Charging Current Range | 10 ~ 20A (Adjustable via VR, 50-100%) |
| Rated Power | 360W |
| Recommended Battery Capacity | 65 ~ 195Ah |
| Input Specifications | |
| Voltage Range | 90 ~ 264VAC; 127 ~ 370VDC |
| Frequency Range | 47 ~ 63Hz |
| Power Factor (Typ.) | ≥ 0.95 / 230VAC, ≥ 0.98 / 115VAC at full load |
| Efficiency (Typ.) | 91% |
| Protection | |
| Over Voltage | 16 ~ 19V; Protection type: Shut down o/p voltage, re-power on to recover |
| Short Circuit | Protection type: Shut down o/p voltage, re-power on to recover |
| Over Temperature | Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
| Battery Reverse Polarity | By internal fuse. Protection type: Fuse open, must be replaced by professional technician |
| Environment | |
| Operating Temperature | -30 ~ +70°C |
| Operating Humidity | 20 ~ 90% RH non-condensing |
| Physical | |
| Dimensions (L x W x H) | 180 x 96 x 49 mm |
| Weight | 1.3 kg |
| AC Inlet | IEC320-C14 (standard) |
| DC Connection | Terminal Block |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
