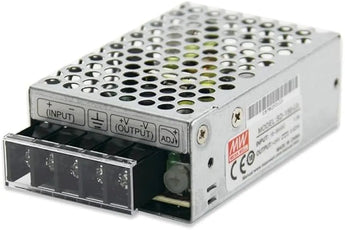

Mean Well SD-15C-24 15W DC-DC Converter
Pickup available at NexGen Computing
Usually ready in 24 hours
Reliable Power Conversion for Demanding Applications
The Mean Well SD-15C-24 is a high-performance 15W single-output enclosed DC-DC converter engineered for reliability and efficiency. It expertly converts a wide DC input range of 36V to 72V into a stable, regulated 24VDC output, making it an ideal power solution for industrial automation, telecommunications, and railway applications. With its robust design, it ensures consistent power delivery for sensitive electronics in challenging environments. Compliance with EN50155 and EN45545-2 railway standards underscores its suitability for transportation and other rugged systems.
Comprehensive Protection and Features
This compact converter is packed with essential protection features to safeguard both the unit and the connected load. It includes safeguards against short circuits, overload, over-voltage, over-temperature, and input reverse polarity. Key features include 4000VDC I/O isolation, cooling by free air convection, and a built-in constant current limiting circuit. The use of 105°C long-life electrolytic capacitors and a 100% full load burn-in test guarantees long-term dependability and a 3-year warranty provides peace of mind.
Technical Specifications
| Model: SD-15C-24 | |
|---|---|
| Output | |
| DC Voltage | 24V |
| Rated Current | 0.625A |
| Rated Power | 15W |
| Voltage Tolerance | ±1.0% |
| Input | |
| Voltage Range | 36 ~ 72VDC |
| Efficiency (Typ.) | 78% |
| Protection | |
| Overload | 105 ~ 150% rated output power |
| Over Voltage | 27.6 ~ 32.4V |
| Environment | |
| Working Temperature | -10 ~ +60°C |
| Safety & EMC | |
| I/O Isolation | 4000VDC |
| Safety Standards | EN50155, EN45545-2 compliant |
| Physical | |
| Dimensions (L x W x H) | 78 x 51 x 28 mm |
| Weight | 0.18 kg |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
