MikroTik

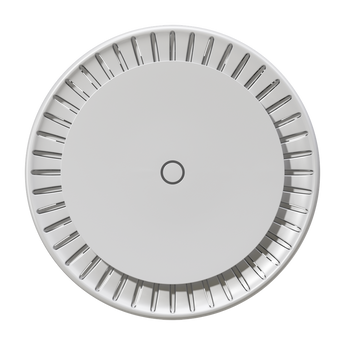

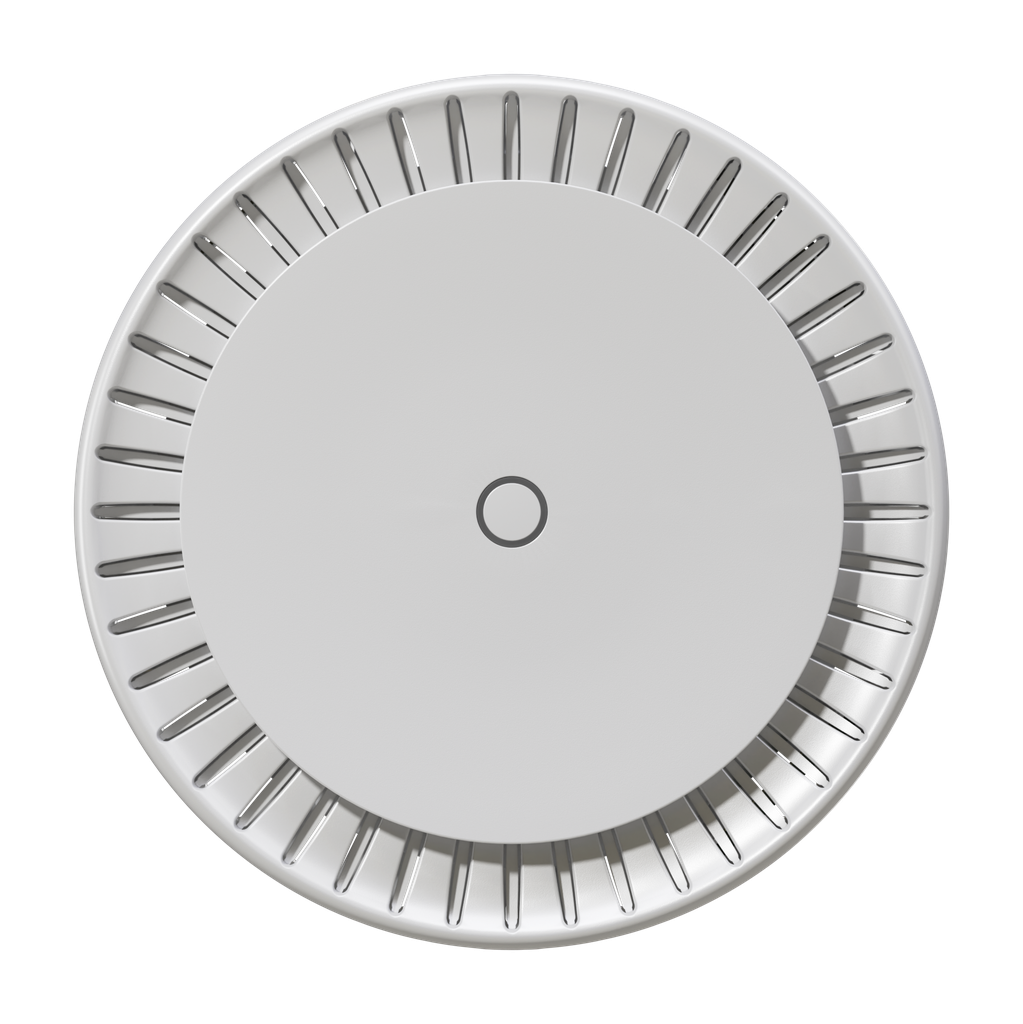

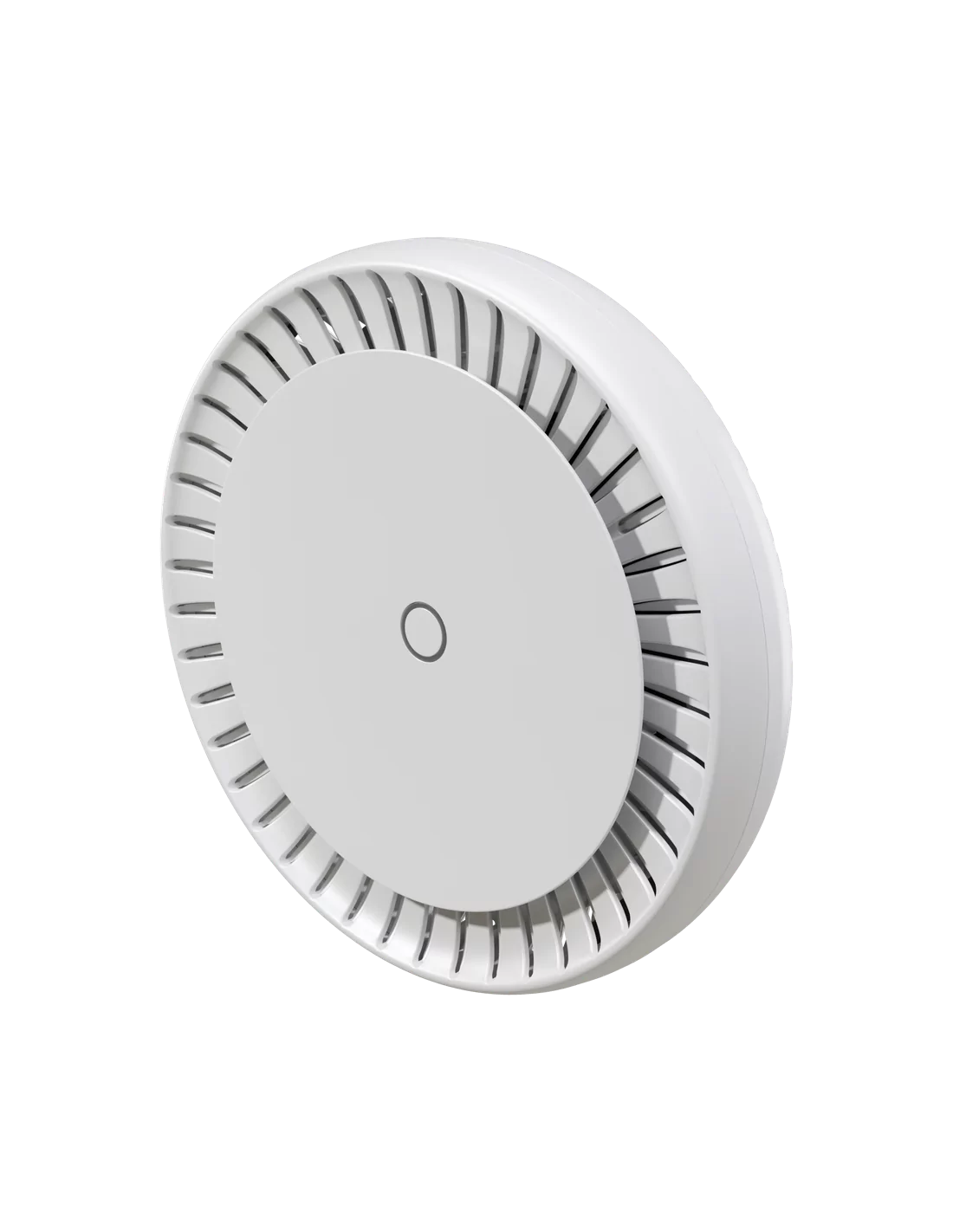

MikroTik cAP ax AX1800 WiFi 6 Ceiling Access Point with PoE Out
Pickup available at NexGen Computing
Usually ready in 24 hours
Next-Generation Wireless for High-Density Environments
Elevate your network performance with the MikroTik cAP ax, a powerful and discreet ceiling-mounted WiFi 6 access point. Designed for demanding environments like offices, hotels, and malls, the cAP ax delivers exceptional speed, stability, and coverage. Its sleek, unobtrusive design resembles a smoke detector, allowing it to blend seamlessly into any professional setting while providing blazing-fast wireless connectivity.
Unleash the Power of WiFi 6
Experience the future of wireless with the Generation 6 802.11ax standard. The cAP ax offers significantly higher speeds—up to 90% faster in the 2.4 GHz spectrum and 40% faster in the 5 GHz spectrum compared to previous generations. More than just speed, WiFi 6 provides enhanced stability in crowded and high-interference areas, ensuring a reliable and uninterrupted signal for every user.
Robust Hardware for Unmatched Performance
At the core of the cAP ax is a modern quad-core CPU running at 1.8 GHz, paired with 1 GB of RAM and 128 MB of NAND storage. This powerful combination harnesses the full potential of RouterOS v7, enabling complex firewall rules, IPsec hardware encryption, advanced routing, and multiple VPN tunnels without breaking a sweat.
Simplified Installation with PoE Versatility
Installation is made simple and clean with Power over Ethernet (PoE). The cAP ax features two Gigabit Ethernet ports and supports both PoE-in and PoE-out on the second port. This allows you to power the access point and daisy-chain another device, such as a network switch, CCTV camera, or even another cAP ax, directly from it, reducing cable clutter and simplifying your network infrastructure.
Centralized Management and Advanced Security
Deploying and managing hundreds of access points is effortless with MikroTik's wifiwave2 CAPsMAN central management system. The cAP ax also supports enhanced authentication types, including OWE, WPA3-PSK, and WPA3-EAP, for robust network security.
Comprehensive Specifications
| General | |
|---|---|
| Product Code | cAPGi-5HaxD2HaxD |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | auto (864 - 1800) MHz |
| Operating System | RouterOS v7 |
| RouterOS License | 4 |
| Size of RAM | 1 GB |
| Storage Size | 128 MB |
| Storage Type | NAND |
| Wireless Specifications | |
| WiFi Generation | Wi-Fi 6 |
| 2.4 GHz Max Data Rate | 574 Mbit/s |
| 2.4 GHz Wireless Standards | 802.11b/g/n/ax |
| 2.4 GHz Antenna Gain | 6 dBi |
| 5 GHz Max Data Rate | 1200 Mbit/s |
| 5 GHz Wireless Standards | 802.11a/n/ac/ax |
| 5 GHz Antenna Gain | 5.5 dBi |
| Ethernet & Powering | |
| Ethernet Ports | 2x 10/100/1000 Ethernet ports |
| Number of DC Inputs | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage | 18-57 V |
| PoE In | 802.3af/at |
| PoE In Input Voltage | 18-57 V |
| PoE Out | Passive PoE on Ether2 |
| Max PoE Out per port output | 600 mA (input < 30 V), 400 mA (input > 30 V) |
| Max Power Consumption | 36 W |
| Max Power Consumption (without attachments) | 11 W |
| Physical & Environmental | |
| Dimensions | Round case: ⌀ 228 mm, height: 50.5 mm; Square case: 228 x 228 x 50.5 mm |
| Tested Ambient Temperature | -40°C to 70°C |
| MTBF | Approximately 200,000 hours at 25C |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
