MikroTik

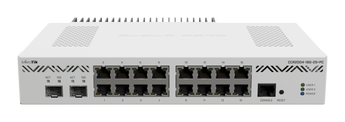

MikroTik Cloud Core CCR2004-16G-2S+PC Router
Pickup available at NexGen Computing
Usually ready in 24 hours
Experience Silent Power and Unmatched Performance

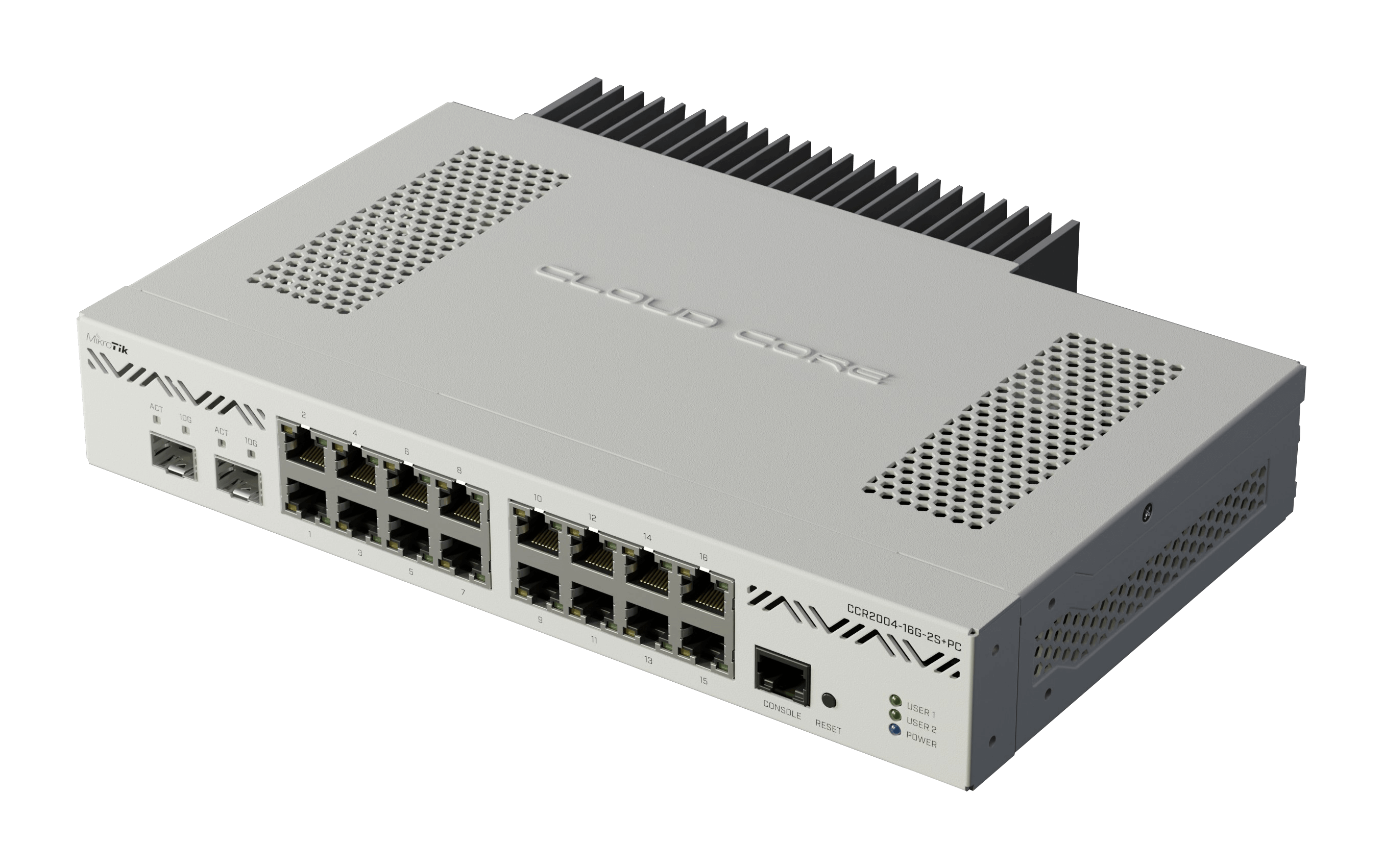

Meet the MikroTik Cloud Core Router (CCR2004-16G-2S+PC), the silent powerhouse engineered for high-performance networking in noise-sensitive environments. Enjoy the full capability of a true Cloud Core Router without the distracting hum and buzz, making it the perfect all-in-one solution for your office, studio, server room, or advanced home lab. This router leverages a completely passive cooling system, ensuring blissful silence while delivering performance up to three times faster than previous generation CCRs.
Next-Generation Processing and Connectivity

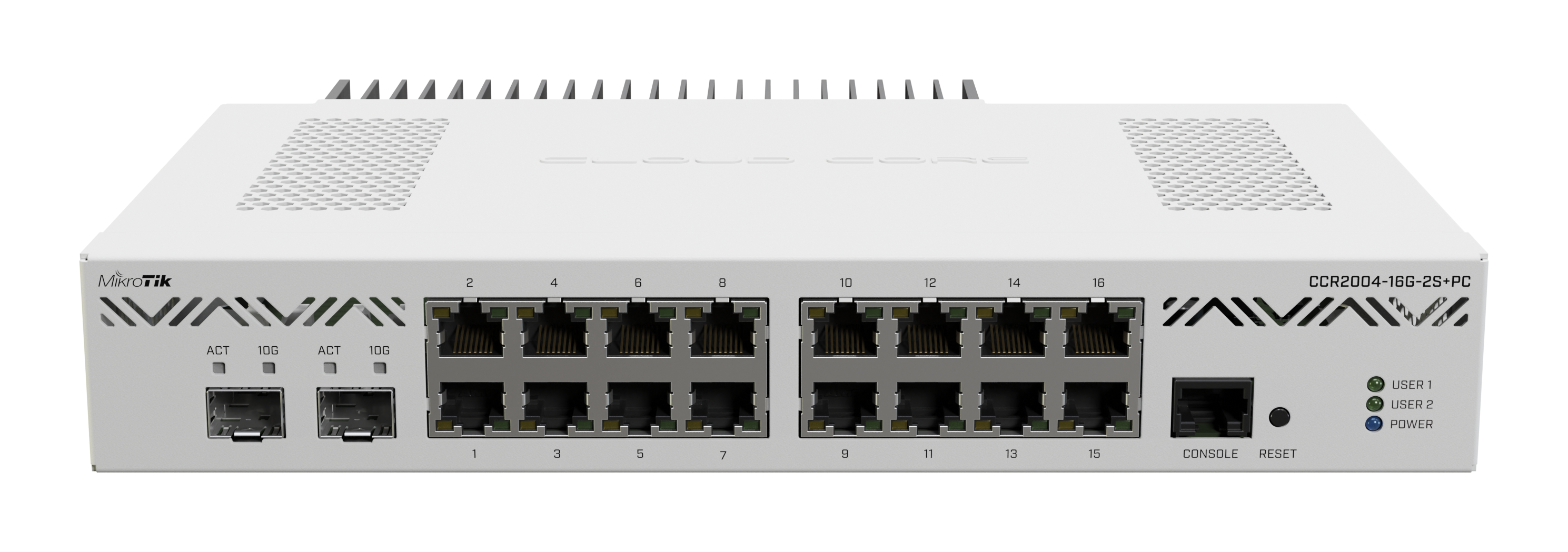

At its core, the CCR2004-16G-2S+PC features the powerful Amazon Annapurna Labs Alpine v2 CPU with four 64-bit ARMv8-A Cortex-A57 cores clocked at 1.2 GHz. This advanced processor, combined with 4GB of DDR4 RAM and 128MB of NAND storage, eliminates bottlenecks and ensures all ports can reach wire speed. The device boasts extensive connectivity with 18 wired ports, including 16 Gigabit Ethernet ports and two 10G SFP+ cages for high-speed fiber uplinks and downlinks. A convenient RJ-45 console port is also located on the front panel for easy management.
Intelligent Architecture for Maximum Throughput
The router's architecture is designed for maximum efficiency. Each group of eight Gigabit Ethernet ports is connected to a dedicated Marvell Amethyst family switch-chip. Each switch-chip, as well as each SFP+ cage, has a separate 10 Gbps full-duplex line connected directly to the CPU, guaranteeing that as long as the CPU can handle the processing, all ports can achieve their maximum speed without compromise. Powered by RouterOS v7 with a Level 6 license, this device supports advanced networking features like dynamic routing, robust firewalls, MPLS, VPN services, and much more.
Reliable and Efficient Power

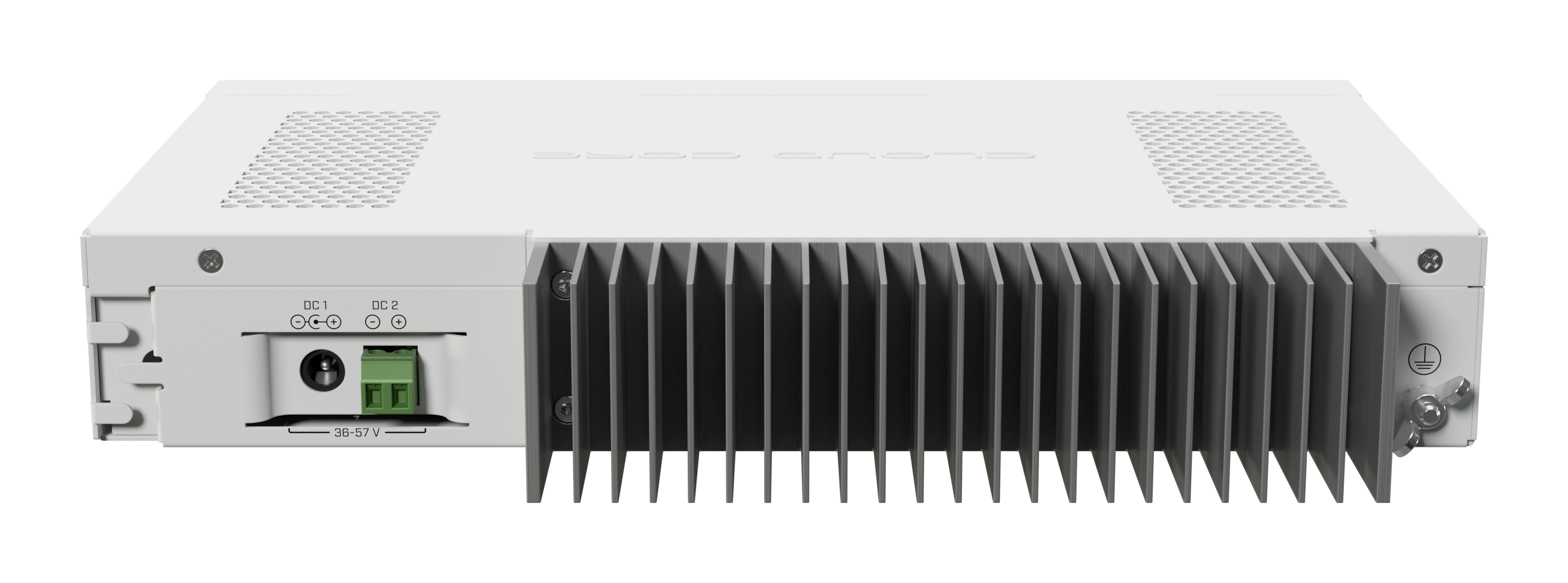

Designed for reliability, the CCR2004-16G-2S+PC features dual DC inputs (DC jack and 2-pin terminal) supporting a voltage range of 36-57V. This redundancy ensures continuous operation for your critical network infrastructure. Despite its immense power, the unit is highly efficient, with a maximum power consumption of only 36 watts.
Technical Specifications
| General | |
|---|---|
| Product Code | CCR2004-16G-2S+PC |
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU Core Count | 4 |
| CPU Nominal Frequency | 1200 MHz |
| Switch Chip Model | 88E6191 |
| Dimensions | 272 x 195 x 44 mm |
| Operating System | RouterOS v7 |
| RouterOS License | 6 |
| Size of RAM | 4 GB DDR4 |
| Storage Size | 128 MB |
| Storage Type | NAND |
| Tested Ambient Temperature | -20°C to 60°C |
| Powering | |
| Number of DC inputs | 2 (DC jack, 2-pin terminal) |
| DC Jack / 2-pin Terminal Input Voltage | 36-57 V |
| Max Power Consumption | 36 W |
| Max Power Consumption (without attachments) | 30 W |
| Cooling Type | Passive |
| Ethernet & Fiber | |
| 10/100/1000 Ethernet ports | 16 |
| SFP+ ports | 2 (10G) |
| Peripherals | |
| Serial Console Port | RJ45 |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
