Milesight

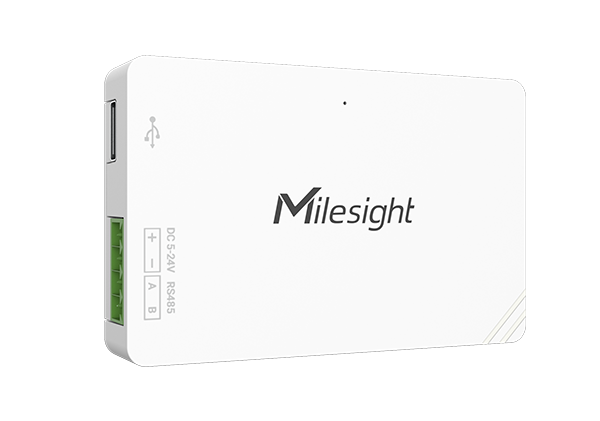

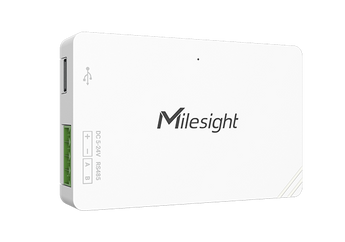

Milesight UC100 Modbus RS485 to LoRaWAN IoT Controller
Pickup available at NexGen Computing
Usually ready in 24 hours
Bridge Your Industrial Assets to the IoT World
Unlock the power of the Internet of Things with the Milesight UC100 IoT Controller. This compact yet powerful device is expertly designed to serve as a seamless bridge between your on-site Modbus RTU devices and the internet via LoRaWAN® technology. It is the ideal solution for remote control and data acquisition in a wide range of indoor applications, including smart metering, building automation, and smart city infrastructure. The UC100 allows you to monitor and control remote assets with ease through a web server or mobile app, bringing your industrial data to your fingertips.
Intelligent, Autonomous Operation
The Milesight UC100 is more than just a converter; it's an intelligent controller. It can read from up to 16 Modbus RTU devices, collecting and transmitting valuable data over vast distances—up to 15 km in rural areas. A standout feature is its intelligent trigger system, which allows you to configure up to 16 commands based on custom 'If-Then' logic. This enables the UC100 to operate autonomously, executing predefined actions even if the network connection is temporarily lost, ensuring your operations continue without interruption.
Advanced Connectivity with Milesight D2D
Featuring the innovative Milesight D2D (Device-to-Device) protocol, the UC100 can communicate with other Milesight LoRaWAN devices in under a second, completely bypassing the need for a LoRaWAN® gateway. This enables ultra-low latency for direct control applications. The UC100 can function as a D2D controller, triggered by an RS485 device to send commands, or as a D2D agent, receiving commands to control a local RS485 device. Configuration is made simple with both a local USB Type-C port and remote configuration options via LoRa downlink.
Technical Specifications
| Wireless Transmission | |
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm (868 MHz) / 22dBm (915 MHz) / 19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class C |
| Data Interface | |
| Port | 1 × RS485 |
| Connector | 3.5 mm Terminal Block |
| Protocol | Modbus RTU (reads up to 16 register values) |
| Baud Rate | 1200 - 115200 bps |
| General | |
| Configuration Port | 1 × USB Type-C |
| Power Supply | 5-24 VDC via Terminal Block or 5 VDC via Type-C Port |
| LED Indicators | 1 x System, 1 x ACT |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | 70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Installation | Desktop or Wall Mounting |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
