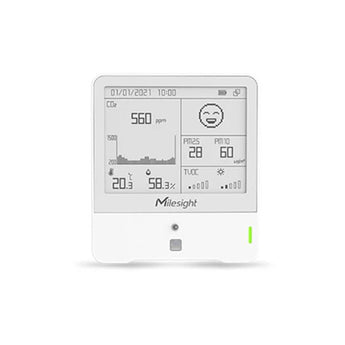

Milesight AM319 9-in-1 Indoor Environment Sensor
Pickup available at NexGen Computing
Usually ready in 24 hours
Complete Indoor Environment Monitoring for a Healthier Space
The Milesight AM319 is a sophisticated, all-in-one indoor ambience monitoring sensor designed for spaces where air quality and comfort are paramount, such as offices, classrooms, stores, and hospitals. This powerful device combines 9 different sensors into a single, compact unit to provide a comprehensive, real-time analysis of your indoor environment. Data is clearly displayed on a 4.2-inch E-ink screen, offering at-a-glance insights into the health and comfort of your surroundings. Utilizing LoRaWAN® technology, the AM319 ensures reliable, long-range, and low-power data transmission for effective remote management.
Key Features:
- 9-in-1 Sensing: Measures Temperature, Humidity, CO2, TVOC, Barometric Pressure, PM2.5/PM10, Light, and Motion (PIR) for a complete picture of indoor conditions.
- Real-Time E-Ink Display: A crisp, power-efficient 4.2-inch screen shows current readings and uses vivid emoticons to indicate comfort levels.
- At-a-Glance Status: Features a configurable traffic light indicator and an audible buzzer to provide immediate alerts when air quality thresholds are breached.
- Flexible Connectivity: Employs LoRaWAN® technology for long-range wireless communication and can be easily configured via NFC.
- Dual Power Options: Can be powered by two 2700 mAh ER14505 Li-SOCl2 batteries or continuously via a USB Type-C port for versatile installation.
- Secure Installation: Includes an anti-theft locking mechanism, making it suitable for deployment in public and commercial spaces.
Technical Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | EU868/US915/AU915/AS923/CN470/KR920/IN865 |
| Work Mode | OTAA/ABP Class C |
| Sensor Specifications | |
| Temperature | Range: -20°C to 60°C, Accuracy: ±0.2°C |
| Humidity | Range: 0% to 100% RH, Accuracy: ±2% RH |
| PIR (Motion) | Detection Area: 80° Horizontal, 55° Vertical, Range: 5m |
| Light | Range: 0-60000 Lux (6 levels) |
| Carbon Dioxide (CO2) | Range: 400-5000 ppm, Accuracy: ±(30 ppm + 3% of reading) |
| TVOC | Range: 0-2000 µg/m³, Accuracy: 20 µg/m³ ±15% of reading |
| Barometric Pressure | Range: 260-1260 hPa, Accuracy: ±0.5 hPa |
| PM2.5 & PM10 | Range: 0-1000 μg/m³, Accuracy: ±10 μg/m³ (0-100 μg/m³), ±10% (>100 μg/m³) |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Batteries (Replaceable) or 5V/1A by Type-C Port |
| Display | 4.2-inch Black & White E-Ink Screen |
| Dimensions | 114 × 100.8 × 22 mm |
| Operating Temperature | -20°C to 60°C (E-ink Screen: 0°C to 40°C) |
| Ingress Protection | IP30 |
| Installation | Wall Mounting or 86 Box Mounting |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
