Milesight UC502 LoRaWAN Industrial IoT Controller
Pickup available at NexGen Computing
Usually ready in 24 hours
Unlock Your IoT Potential with the Milesight UC502 LoRaWAN Controller

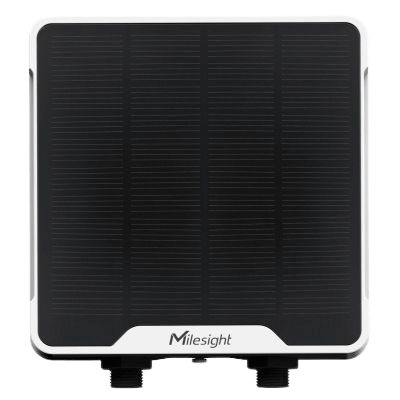

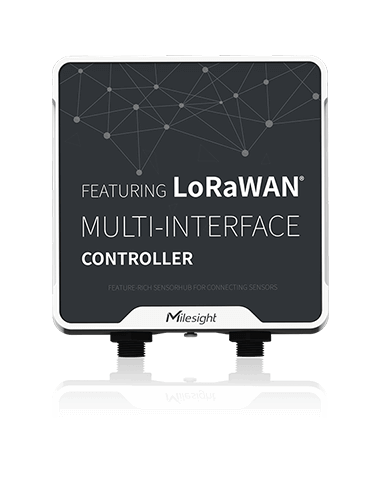

The Milesight UC502 is a robust LoRaWAN controller engineered for sophisticated data acquisition from a wide array of sensors and equipment. It is designed to simplify the deployment and scalability of your LoRaWAN network. Featuring a rich selection of I/O interfaces, including analog and digital inputs, serial ports, and more, the UC502 provides a versatile solution for your industrial IoT needs. Configuration is made simple and efficient through NFC or a wired USB connection. Built for harsh outdoor environments, the UC502 is equipped with a durable IP67-rated enclosure and M12 connectors, ensuring protection against water and dust. This model is powered by a high-capacity 19000mAh replaceable Li-SOCl2 battery, making it ideal for long-term deployments in smart agriculture, industrial monitoring, and smart city applications.
Key Features
- Versatile Connectivity: Easily connect to a multitude of wired sensors through GPIO, AI, RS232, and RS485 interfaces.
- Long-Range Transmission: Achieve data transmission distances of up to 15 km in rural areas and 2 km in urban settings.
- Rugged Design: Features an IP67 waterproof casing and M12 connectors for reliable performance in all weather conditions.
- Effortless Configuration: Quickly set up and configure the device wirelessly using NFC technology.
- LoRaWAN® Compatible: Fully compliant with standard LoRaWAN® gateways and network servers for seamless integration.
- Cloud Management: Offers quick and easy management with the Milesight IoT Cloud solution.
Comprehensive Specifications
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm (868 MHz) / 20dBm (915 MHz) / 19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | Class A |
| Data Interfaces | |

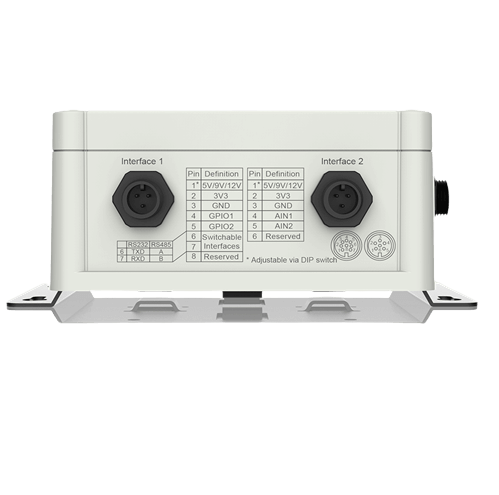

| Interface Type | M12 A-Coded Male |
| GPIO | 2 × GPIO (Digital Input, Digital Output, Pulse Counter) |
| Serial Port | 1 × RS232 or RS485 (Switchable) |
| Analog Input | 2 × Analog input (4~20mA or 0~10V, Switchable) |
| Power Output | 2 × 3.3 V, 2 × 5/9/12 V (Switchable) |
| Operation | |
| Power On & Off | NFC, Power Button (Internal), Type-C Port |
| Configuration | NFC or Type-C USB |
| Physical Characteristics | |
| Power Supply | 19000 mAh replaceable Li-SOCl₂ battery |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1 × 55.4 mm (4.73 × 4.73 × 2.18 in) |
| Installation | Wall or Pole Mounting |
Manufacturer Technical Data
| Product Spec Sheet |
 Download |
|---|
